Short Description: The G605-150S00A-B3 wireless microswitch is an SPDT 5A 25T125 with soldering terminals. And the switch has the UL, cUL, ENEC, and CQC.
| Item Number | G605-150S00A-B3 |
|---|---|
| Rating | ENEC/CQC: 5A 125/250 VAC 30VDC 5E4 UL/CUL: 5A/8HP 125/250VAC 30VDC |
| Terminal Types | Solder Terminal |
| Temperature | -25~125℃ (25T125) |
| Electrical Life | 50,000cycles |
| Installation Hole | Φ2.4mm Or M2.3 screw holes |
| Current Code | SPDT |
| RF | 35 gf Min |
| OF | 150gf Max |
| OP | 10.3mm |
| Lever Type | without lever |
The G605-150S00A-B3 Micro Switch Details Description
The G6 Wireless Micro Switch Features
The G605-150S00A-B3 wireless microswitch is an SPDT 5A 25T125 with soldering terminals. And the switch has the UL, cUL, ENEC, and CQC. The rating of the ENEC and CQC are 5A 125/250VAC 30VDC 5E4 25T125, while UL and cUL are 5A 1/8HP 125/250VAC 30VDC. So, the switch can be used all over the world due to the certificates. Meanwhile, the mechanical cycle of this item is 1000000cycles and the electrical is 50000cycle which is long-life enough to use in most of the products. What’s more, we can custom the wiring harness with connectors.

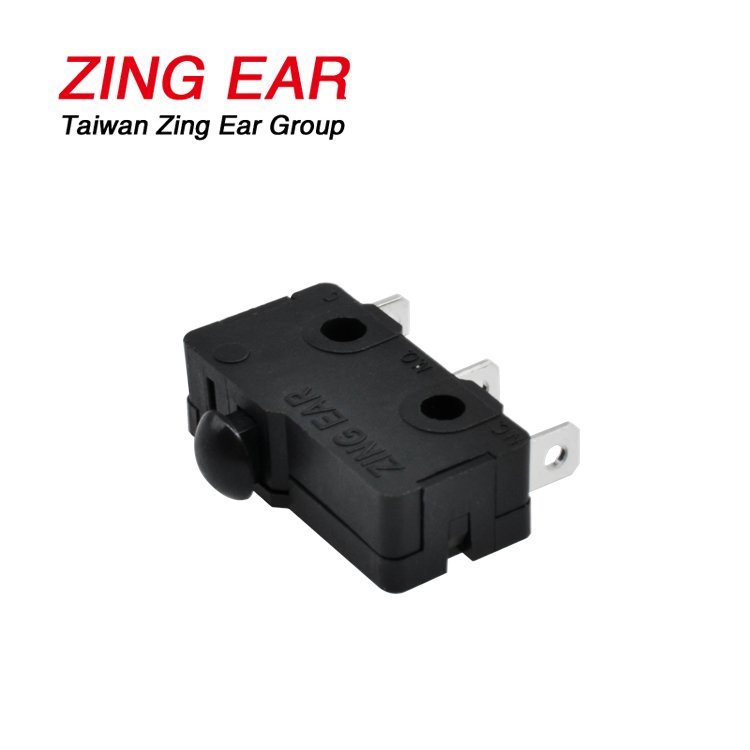

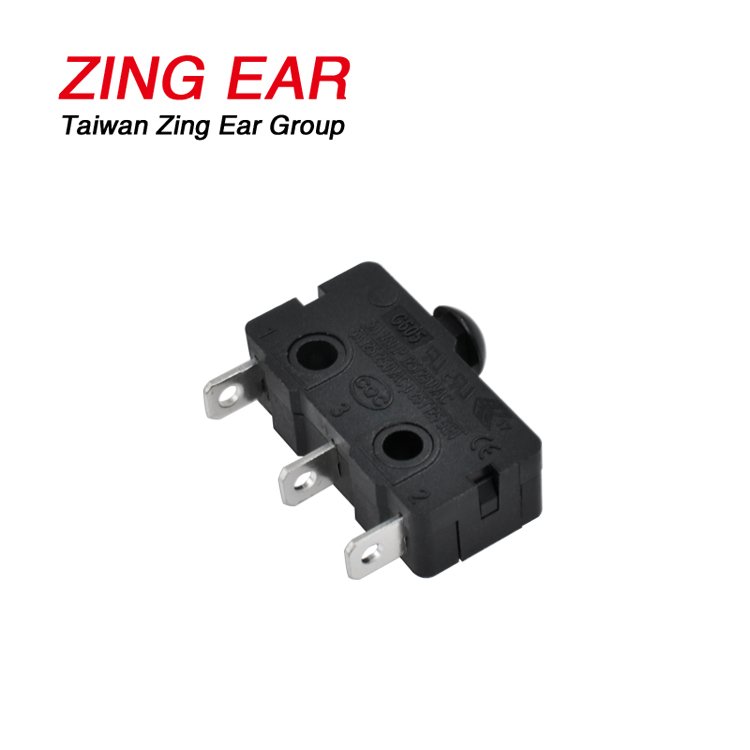

G605 SPDT Wireless Micro Switch Photos

Our Advantage
Why choose us?
- Firstly, we are the factory of Zing Ear switch for many years, so we can provide you the high standard quality micro switch products;
- Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
- Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
- What’s more, if you need other electron components, we can help you to buy them and ship them with our switch.
