Short Description: 25T125 5E4 snap action micro switch free sample is available, and as a professional switch manufacturer, we are experienced and professional. Welcome to contact us to have more details.
| Item Number | G605-250S00A-B8 |
|---|---|
| Rating | ENEC/CQC: 5A 125/250 VAC 30VDC 5E4 UL/CUL: 5A/8HP 125/250VAC 30VDC |
| Terminal Types | Solder Terminal |
| Temperature | -25~125℃ (25T125) |
| Electrical Life | 50,000cycles |
| Installation Hole | Φ3.4mm |
| Current Code | SPDT |
| OF | 250gf Max |
| OP | 10.3mm |
| Lever Type | without lever |
25T125 5E4 Micro Switch Details Description
25T125 5E4 Micro Switch Features
The G605-250S00A-B8 is a 25T125 5E4 snap action micro switch with UL, cUL, ENEC, and CQC certification. Its operating temperature is from -25℃ to 125℃ and its rating is 5A 1/8HP 125/250VAC 30VDC. Generally, the rating for a microswitch is very important, which means the using environment requirement of it. Once the environment is out of the rating range, the switch will not work well. So, buyers need to know the rating before buying it. In fact, we will send the datasheet and sample to the customer to confirm, so that it can improve the project’s one-time success rate. This can save your time and costs.

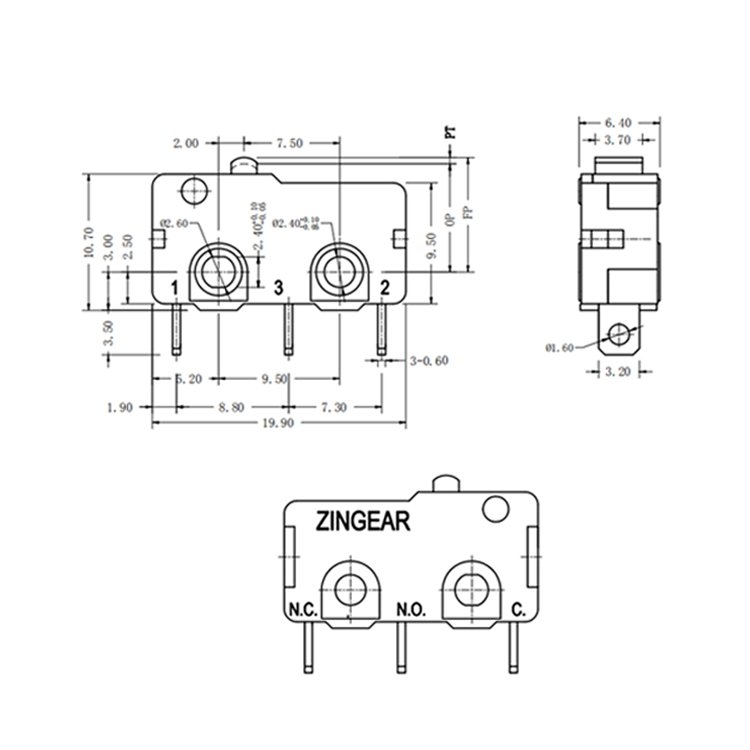

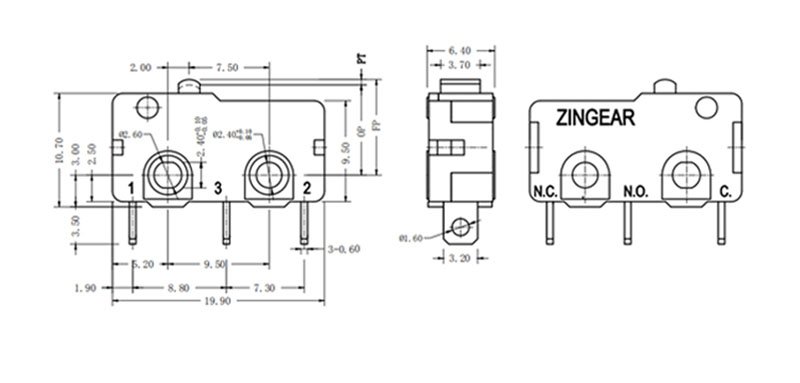

25T125 5E4 Microswitch Drawing

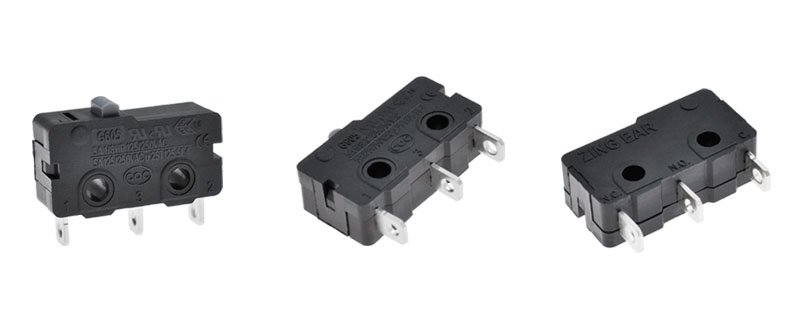

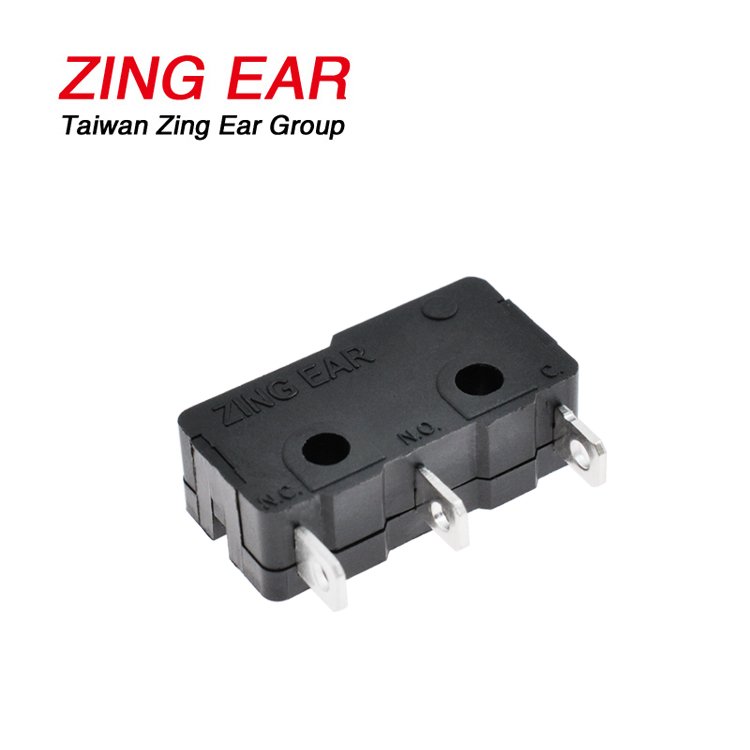

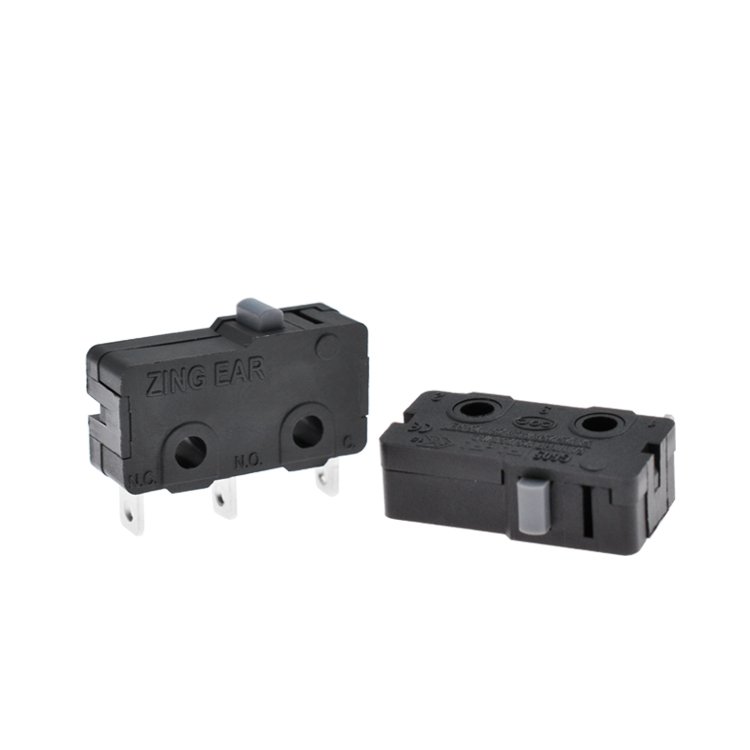

25T125 5E4 Microswitch Photos
