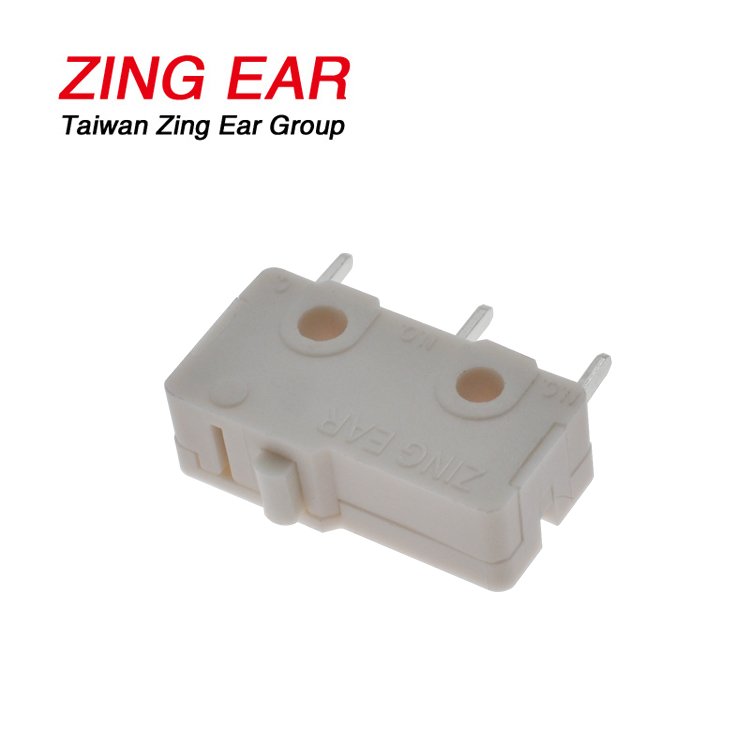

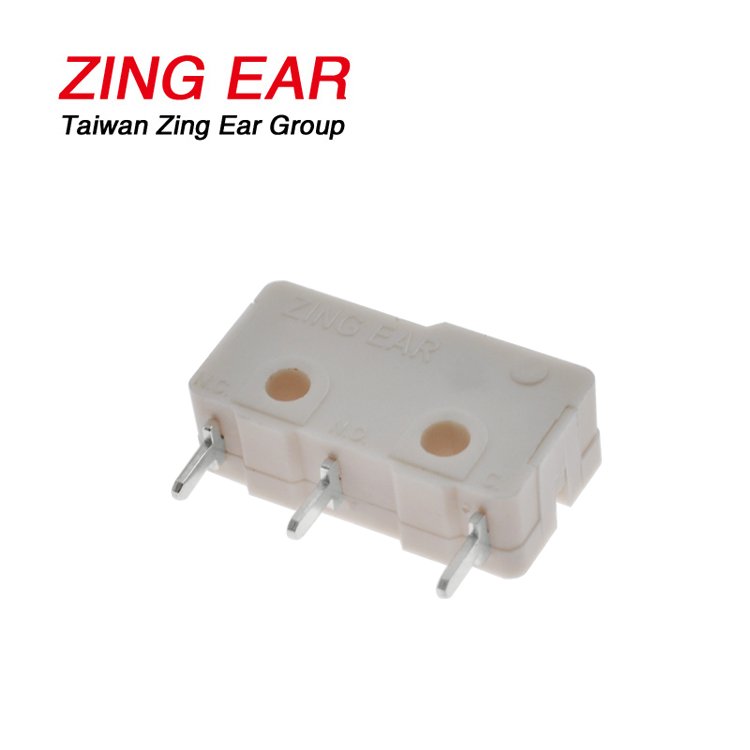

The micro switch 10A 250VAC 125VAC is available from us and G610-250P00A-M2 can meet the requirement but as a microswitch manufacturer, we also have another switch that can meet the 10A 250VAC parameters, welcome to contact us to have more options.
| Item Number | G610-250P00A-M2 |
|---|---|
| Rating | ENEC/CQC: 10(2)A 125/250 VAC UL/CUL: 10.1A 1/4HP 125/250VAC |
| Terminal Types | PCB Terminal |
| Temperature | -25~125℃ (25T125) |
| Electrical Life | 50,000cycles |
| Installation Hole | Φ3.0mm M2 |
| Current Code | SPDT |
| RF | 250gf Min |
| OF | 55gf Max |
| OP | 8.5mm±0.3mm |
| Lever Type | without lever |
Micro Switch 10A 250VAC Description
Micro Switch 10A 250VAC 125VAC Features
The micro switch 10A 250VAC 125VAC is available from us and G610-250P00A-M2 can meet the requirement but as a microswitch manufacturer, we also have another switch that can meet the 10A 250VAC parameters, welcome to contact us to have more options. Firstly, the G610-250P00A-M2 is a high-current mini switch, because a small switch will have a small current and a big switch will have a high current generally. But this one has something different in it and the switch color. Which is designed for use in a small installing environment with a high current. Secondly, this model has the UL, ENEC, and CQC certifications to provide to you. So, please don’t hesitate to contact us to have more information you need, and if you wanna see more details information, welcome to visit our switch product page.

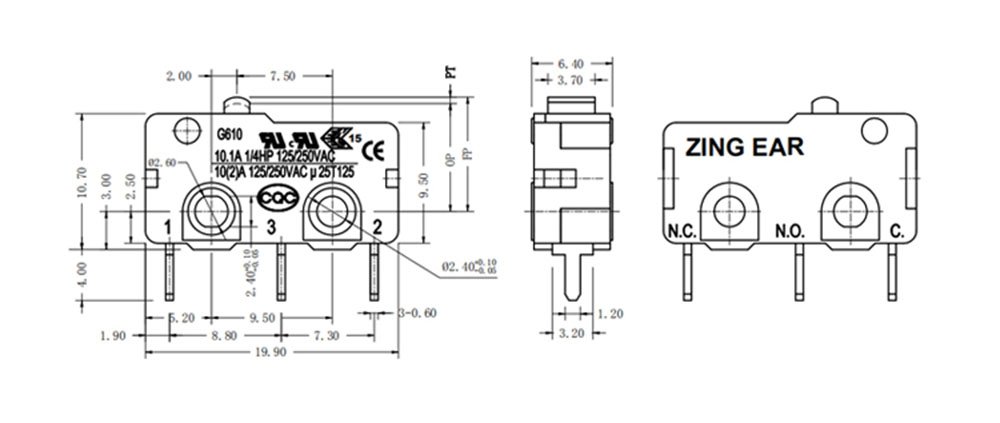

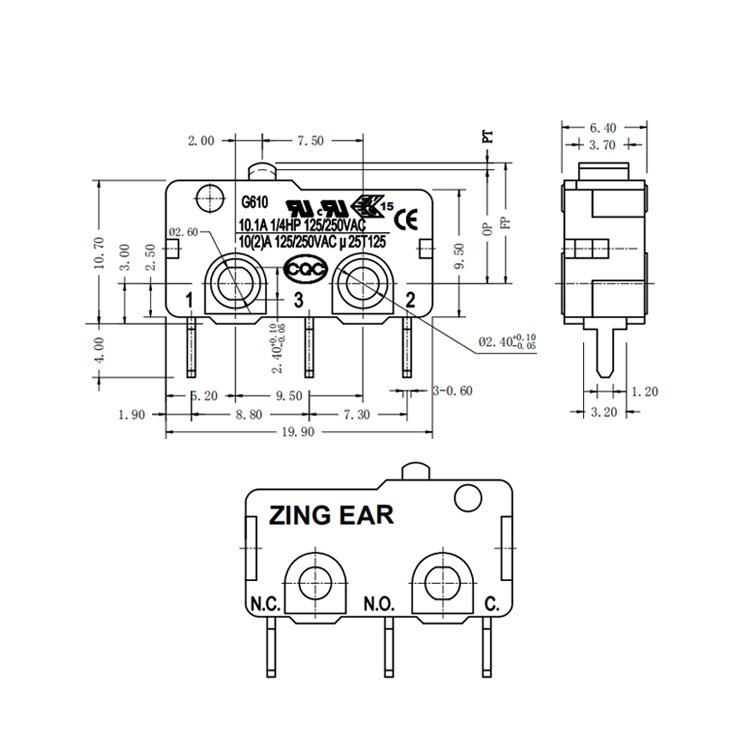

Micro Switch 10A 250VAC 125VAC Drawing
