1A 125VAC Micro Switch Mushroom Plunger 5E4

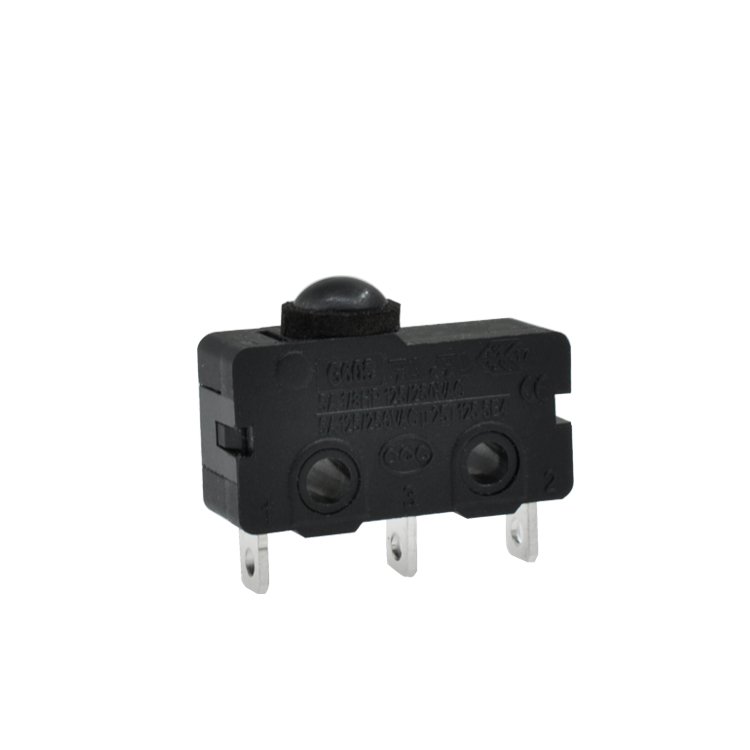

1A 125VAC Micro Switch Mushroom Plunger 5E4 (7)

This 5E4 1A 125VAC micro switch has UL, cUL, ENEC, and CQC certifications. Its rating is 5A 125/250VAC 30VDC so it not only can cover 1A but 5A as well.

1A 125VAC Micro Switch

  • MPN: G605-150S07AL-23
  • Rating: 5A 1/8HP 125/250VAC
  • Contact Arrangement: SPDT
  • Operation Force: 50gf
  • Operation Position: 10.6±1.5mm
  • Pre Travel: 4.5mm Max
  • Lever Type: Simulated Roller Lever
  • Certification: UL, cUL, ENEC, CQC
  • Sample & Datasheet & Quotation: Available

G605 Micro Switch Description

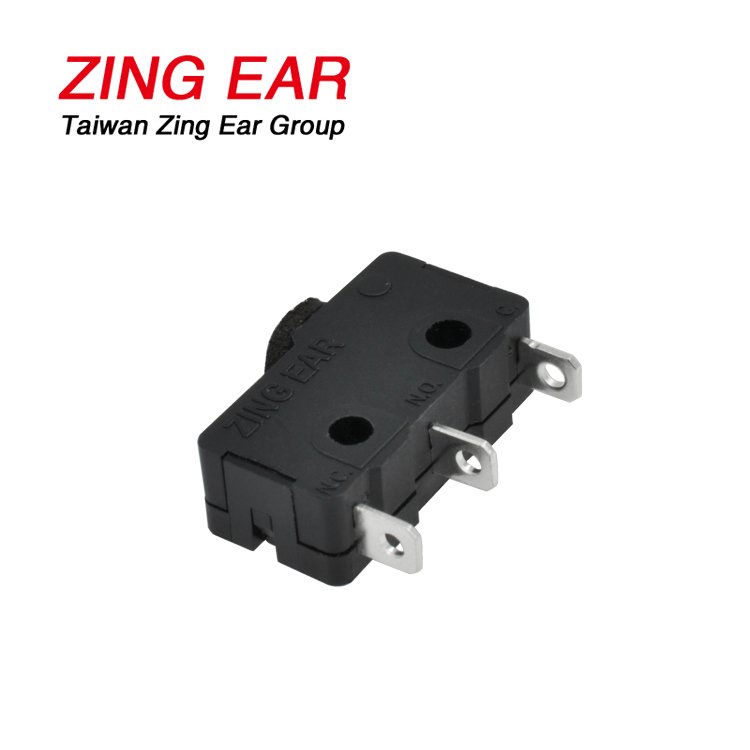

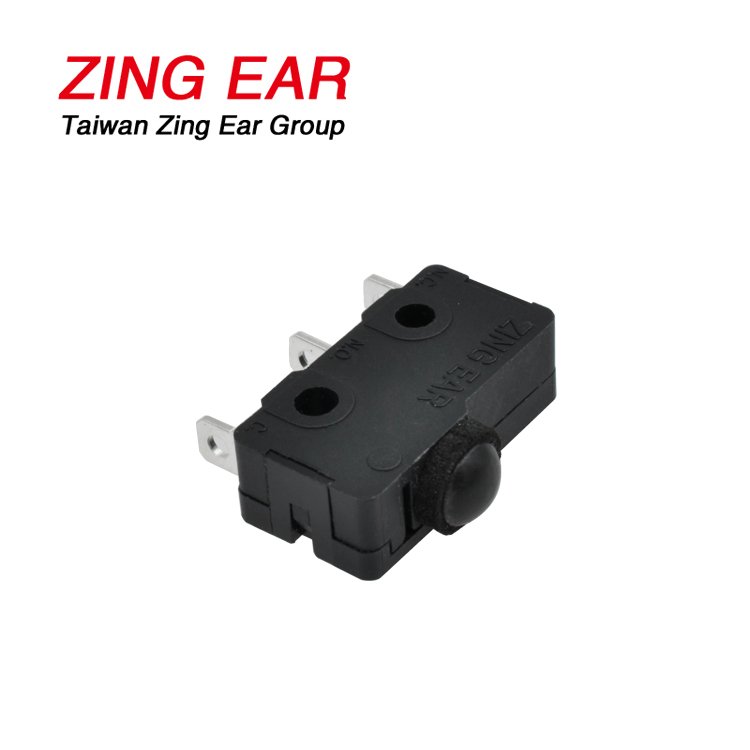

The Mushroom Microswitch Pictures

1A 125VAC Micro Switch Details Information

The G605-150S00A-T109 is a 5E4 1A 125VAC micro switch which also gets the approved rating of  5A 125/250VAC 30VDC. It means this switch not only can cover 1A 125VAC but also can cover 5A 125/250VAC 30VDC as well. Meanwhile, the microswitch electrical cycle service life is at 50000 cycles at least and it also has a wide working temperature range, which is from -25 to 125℃. Meanwhile, this is a mushroom head micro switch with a dust-proof ring, the design can reduce the dust into the switch body. So, it can reduce the contactor INT phenomenon.

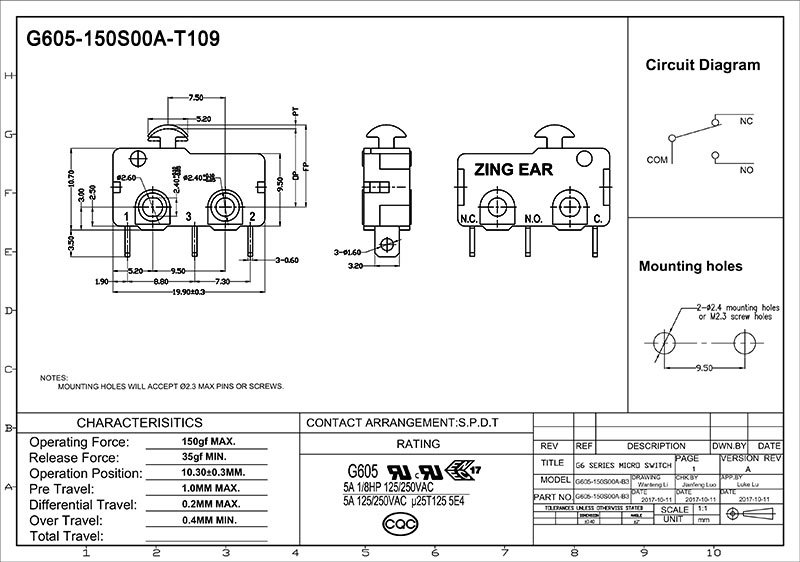

G605-150S00A-T109 SPDT Microswitch Drawing

G605-150S00A-T109 SPDT microswitch
