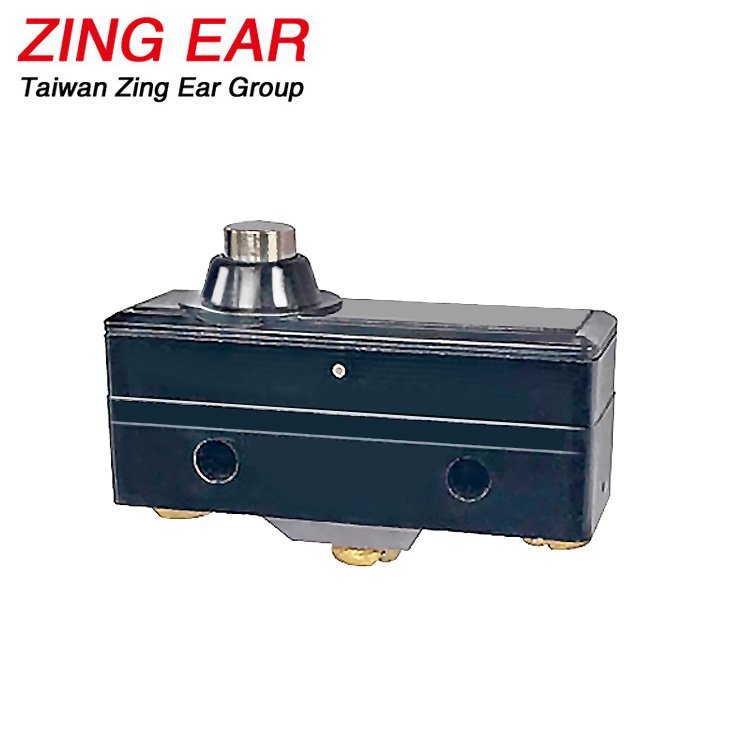

G12 Large Basic Limit Switch

The Large Micro Limit Switch Features

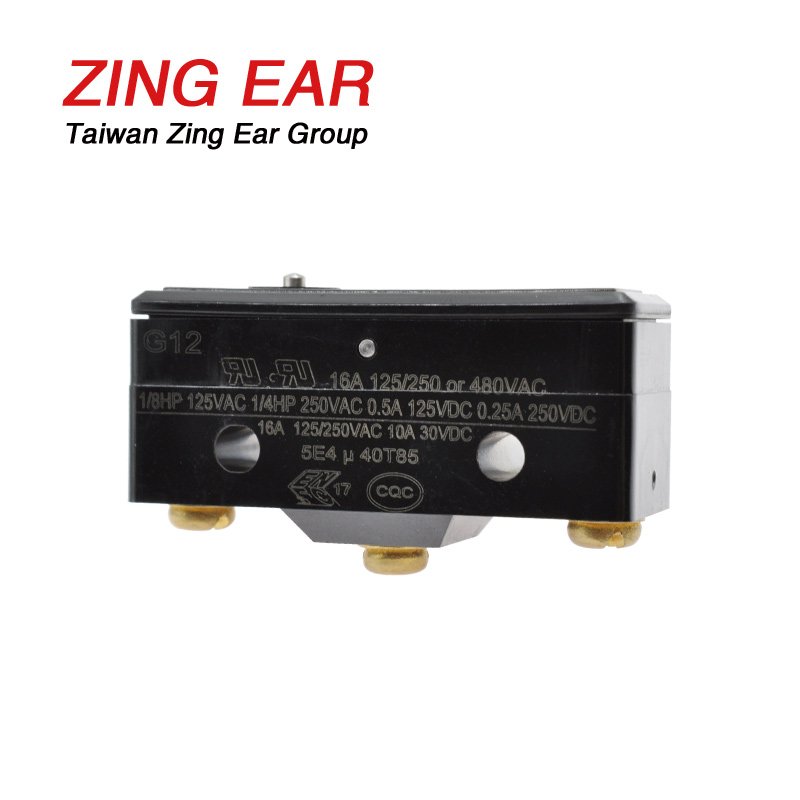

G12 Large Basic Limit Switch series is a big size limit microswitch, the housing is made of high-temperature bakelite, which can prevent the damage of high temperature.  Meanwhile, the precise operating repeatability predestinates that it will be the perfect item in the industrial control device.  The G12 micro limit switch not only has a long service life that can be up to 10000000 cycles, but also has ENEC, UL, CUL, and CQC certificates. So, the product quality is good and it can replace for Omron Z series switch. The G12 plunger micro switch is widely used in much industrial equipment, like machine tools, elevator, auto production line, civilian or industrial machinery, and automotive field.


G12 Large Basic Limit Switch Products & Datasheet


G12 Large Basic Limit Switch Specification

16A Rating ENEC/CQC: 16A 125 or 480VAC 1/8HP 125VAC 1/4HP 250VAC 0.5A 125VDC 0.25A 250VDC UL/CUL: 16A 125/250VAC 5E4
22A Rating ENEC/CQC: 22A 125 or 480VAC 1/4HP 125VAC 1/2HP 250VAC 0.5A 125VDC 0.25A 250VDC UL/CUL: 22A 125/250VAC 5E4
26A Rating ENEC/CQC: 26A 125 or 480VAC 1/4HP 125VAC 1/2HP 250VAC 0.5A 125VDC 0.25A 250VDC UL/CUL: 26A 125/250VAC 5E4
Operating Frequency 10 to 30 cycle/min for Electrical, 240 cycle/min for mechanical
Insulation Resistance 100 mΩ Min. (at 500VDC)
Temperature & Humidity 40T85 (-40℃ to 85℃) & 85% RH max
Electrical Life 50000- 100000cycles
Mechanical Life 1000000cycles
