G6 Miniature Micro Switch Description
The G6 Miniature Micro Switch series is small in size and high quality, widely used in household appliances and auto parts such as Timmer, Pump, Computer, Air conditioners, humidifiers, pushrods, Tubular moto, and so on. Because the G6 series are wide applications on the market, they have many different kinds of parameters for customer choice. For example, there are 0.1A, 5A, 10A, and 12A for the current options. Besides, silver contact and gold contacts are also available too. As well as the terminals, levers, operating force, and circuit code. This product not only has global safety approvals to make sure quality but can provide a customized design for buyer requirements as well.
G6 Miniature Micro Switch Specification
| Item | G6 |
|---|---|
| P1/P11/P12 Rating | 0.1A 125/250V 48VDC 5E4 Gold plated contacts optional |
| 05/051/052 Rating | 5(3)A 125/250V 30VDC 1/8HP |
| 10/101 Rating | 10(2) A 125/250VAC, Only for operating force over 250gf |
| 12 Rating | 12(6) A 125/250VAC, Only for operating force over 350gf |
| Resistance | 100mΩ |
| Dielectric Strength | AC 1000V RMS(50~60Hz) |
| Temperature | -25 to 125℃ |
| Service Life | Electrical life is 10000 to 50000 cycle; Mechanical life is 1000000 cycle |
G6 Miniature Microswitch Products
Go to Homepage & Return to the switch products page
1A 125VAC Micro Switch Mushroom Plunger 5E4View Details →
Right Angle Micro Switch SPDT 3 PCB Pin 5E4 T125View Details →
Micro Switch NO NC SPDT 5 Amp 110V 220V with LeverView Details →
25T125 5E4 Snap Action Micro SwitchView Details →
Micro Switch 220V 110V 5A Normally OpenView Details →

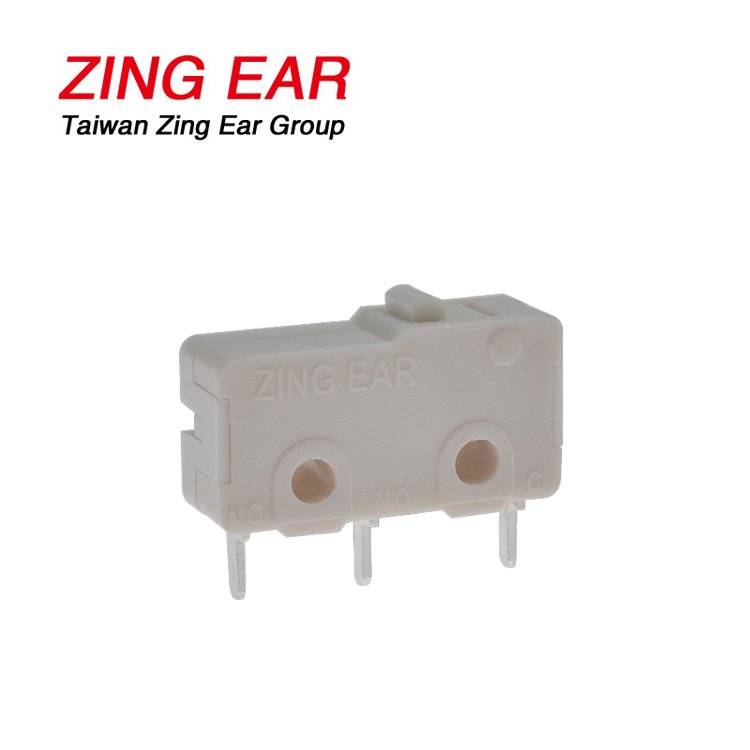

Micro Switch 10A 250VAC 125VAC SPDTView Details →
