Short Description: Our G6051-150S00B-T043 is a 25T125 5A 125V 250V micro ON/OFF switch with normally closed single pole single throw with UL, ENEC, CQC.
| Item Number | G6051-150S00B-T043 |
|---|---|
| Rating | ENEC/CQC: 5A 125/250 VAC 30VDC 5E4 UL/CUL: 5A/8HP 125/250VAC 30VDC |
| Terminal Types | Special Solder Terminal |
| Temperature | -25~125℃ (25T125) |
| Electrical Life | 50,000cycles |
| Installation Hole | Φ2.4mm or M2.3 screw holes |
| Current Code | SPST Normally Closed |
| RF | 35gf Min |
| OF | 150gf Max |
| OP | 8.5mm |
| Lever Type | without lever |
G6051-150S00B-T043 Snap Switch Description
Micro ON/OFF Switch Features
The G6051-150S00B-T043 a 5A 125/ 250VAC 30VDC 25T125 SPST NC current code ON OFF micro switch. It has ENEC, CQC, UL, cUL certifications to make sure the switch can meet the requirement from all over the world. Besides, this is a specially designed solder terminal for customers. I mean the buyer can also contact us if you have a special requirement on the switch. No matter what kinds of lever, operating force, lever, welcome to contact us to get more details. Meanwhile, the switch is widely used in household appliances, communication equipment, entertainment devices. Such as the phone, air conditioner, humidifiers, Alarm, timer, pump, and so on. For more details, welcome to contact us without any hesitation.

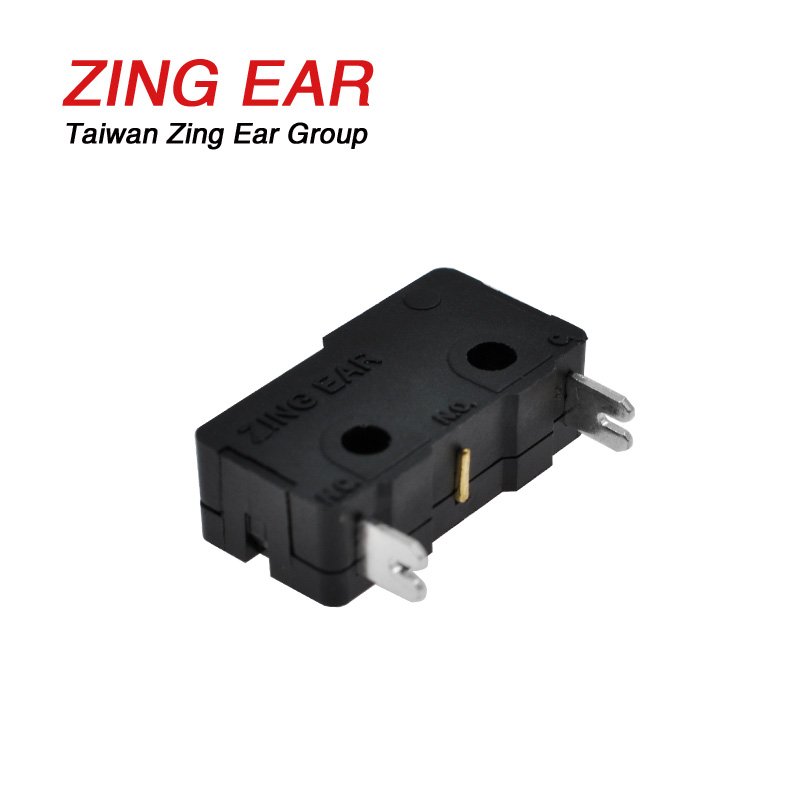

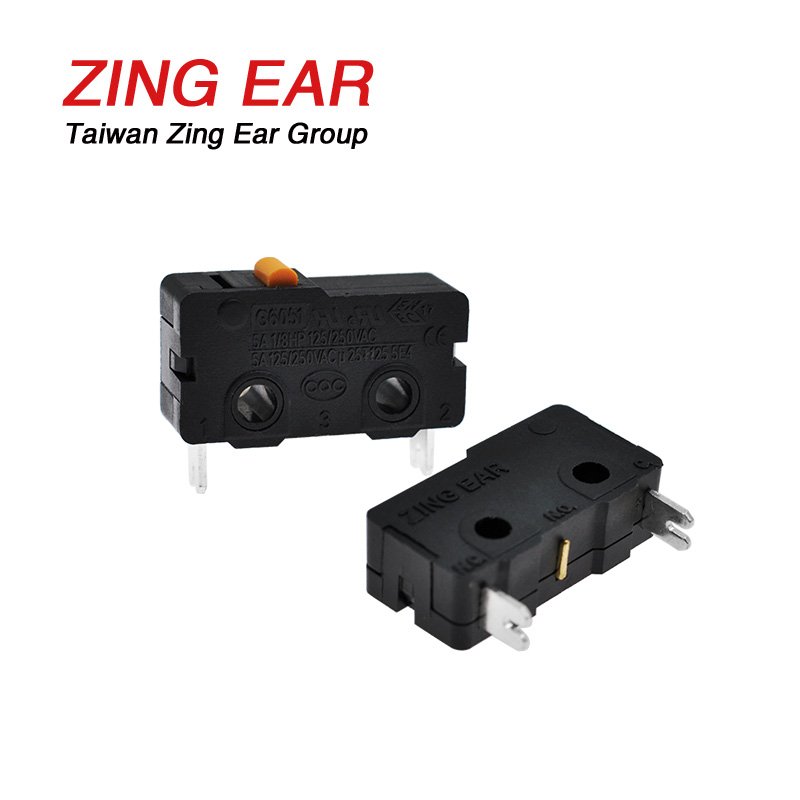

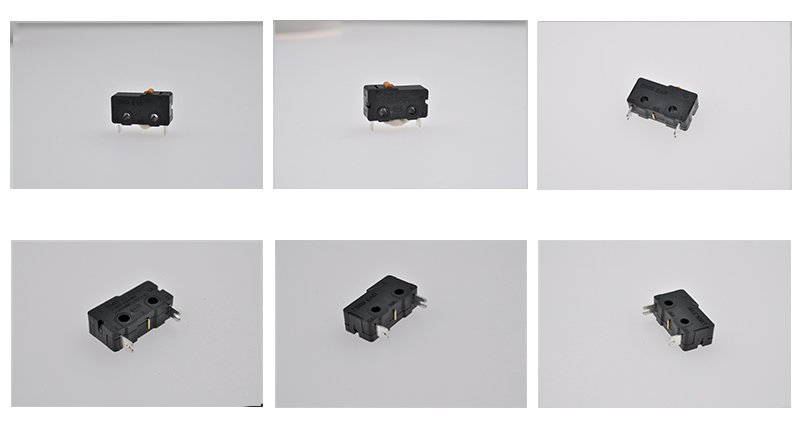

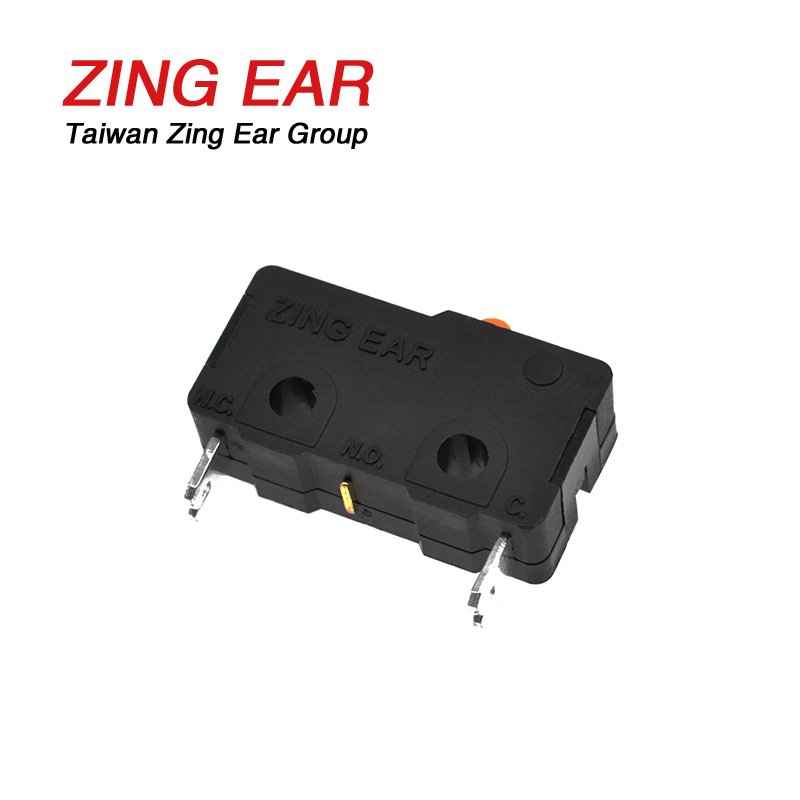

G605 SPST Microswitch Photos

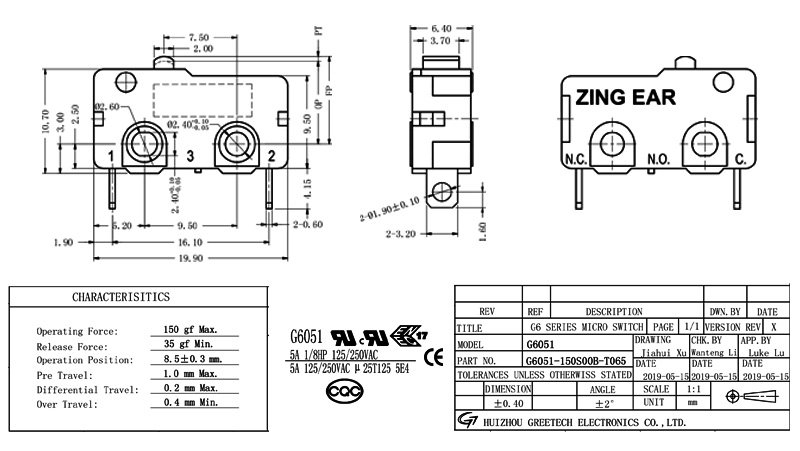

NC Micro Switch Drawing

Our Advantage
Why choose us?
- Firstly, we are the factory of Zing Ear switch for many years, so we can provide you the high standard quality micro switch products;
- Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
- Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
- What’s more, if you need other electron components, we can help you to buy them and ship them with our switch.
