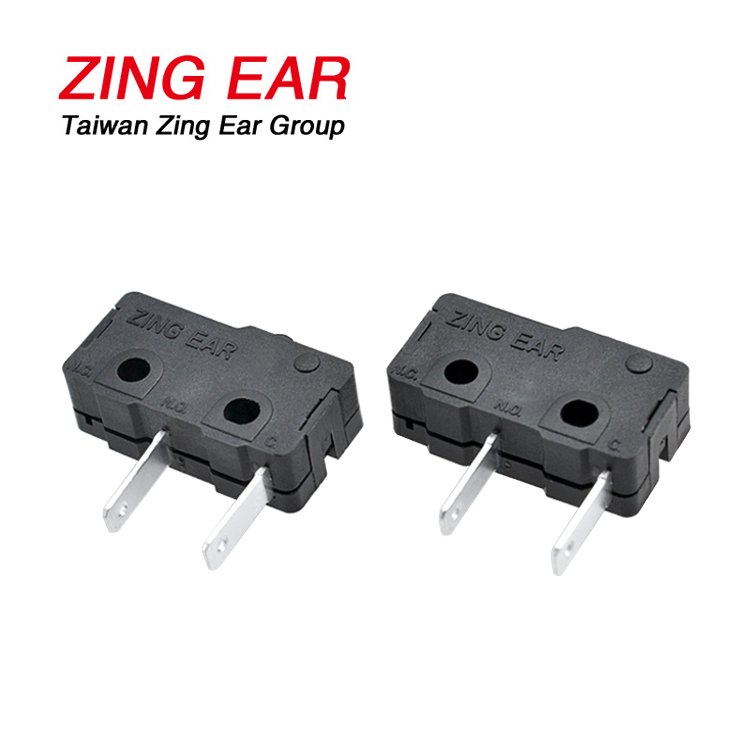

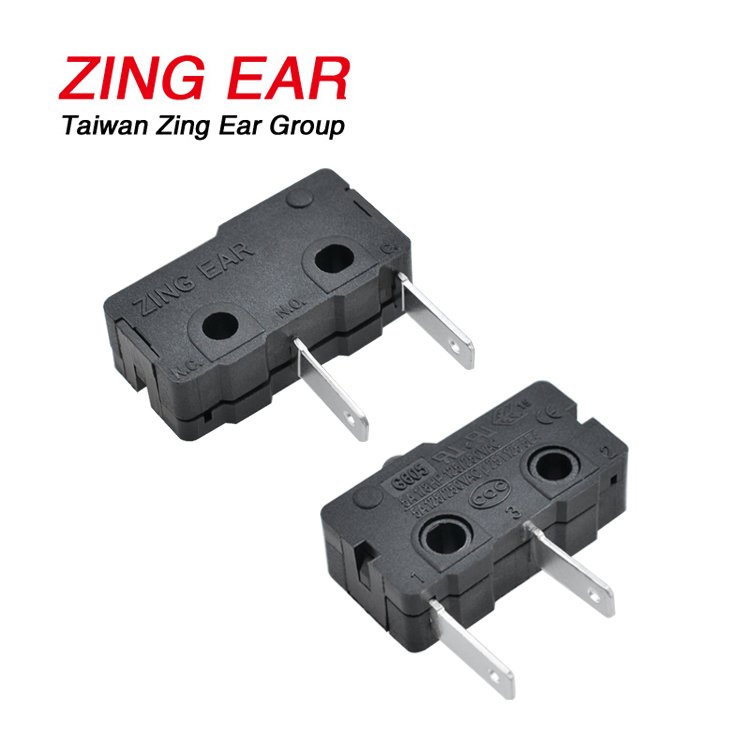

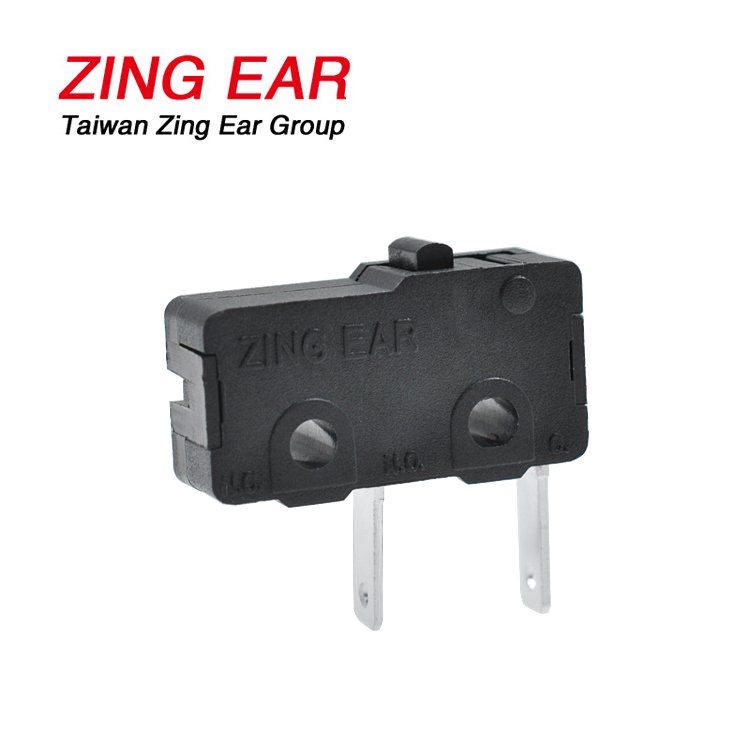

The 2 Terminal Micro Switch is available from us, which includes the SPST NO and NC type for options. For the G605-100E00CS, it is the normally open type switch which means when pushing the actuator the circuit will switch from “OFF” to “ON” but from “ON” to “OFF” when releasing.
| Item Number | G605-100E00CS |
|---|---|
| Rating | ENEC/CQC: 5A 125/250 VAC 30VDC 5E4 UL/CUL: 5A/8HP 125/250VAC 30VDC |
| Terminal Types | Quick Connect Terminal(0.11”*0.23”) |
| Temperature | -25~125℃ (25T125) |
| Electrical Life | 50,000cycles |
| Installation Hole | Φ3.4mm |
| Current Code | SPST NO |
| RF | 10gf Min |
| OF | 100gf Max |
| OP | 10.3mm |
| Lever Type | without lever |
2 Terminal Micro Switch Description
The Features of the 2 Terminal Micro Switch
The 2 Terminal Micro Switch is available from us, which includes the single pole single throw NO and NC type for choice. For the G605-100E00CS, it is the normally open type switch which means when pushing the actuator the circuit will switch from “OFF” to “ON” but from “ON” to “OFF” when releasing. Meanwhile, this model also has the certification of global safety certifications, such as the ENEC, UL, cuL, and CQC. So, our switch can meet the requirement of many countries in certification. Generally, the G605 series can be used in most Home appliances, like the rice cooker, gas stove, massage chair/sofa, drive airer, and so on. And if you need other type of our switches, welcome to contact us or go to our product page to see more.

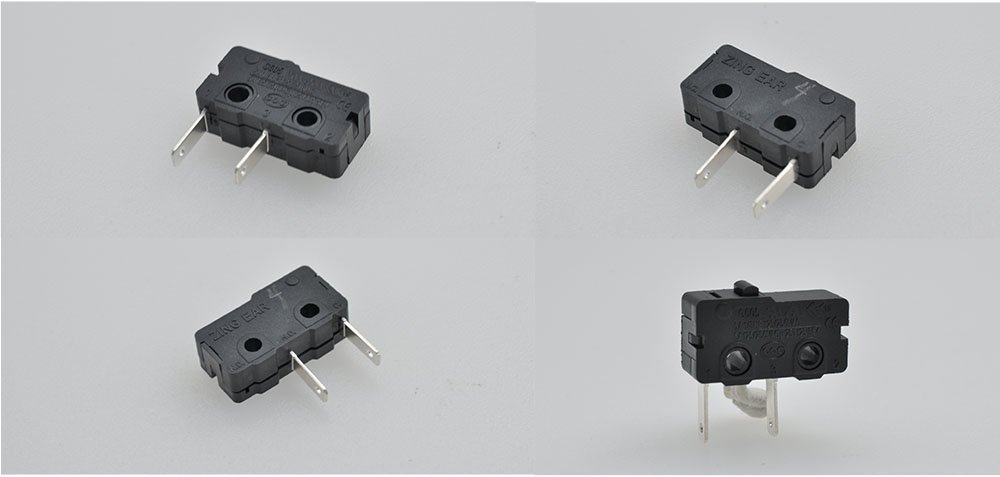

The Photos of the 2 Terminal Micro Switch
