G9 Sealed Mini Micro Switch
Zing Ear G9 sealed mini micro switch including G9, G91, and G9A/B series, both of them are sealed structures with high-quality. Meanwhile, switches are widely used in household appliances and industrial equipment such as auto parts, air conditioners, humidifiers, timers, pushrods, toys, and so on. They not only have ENEC, CQC, UL, and CUL certificates and long service life but also have waterproof dustproof, and explosion-proof approval. We will provide the samples to you before placing an order, welcome to contact us to get more detail.
The G9 microswitches can be the alternative switch for Crouzet 83181, Honeywell ZW, Omron D2SW, Cherry DC, or ZF DC series, etc. Welcome to contact us to have more details.
| P1 Rating | 0.1A 125/250VAC 48VDC(Gold plated contact optional) |
|---|---|
| 05 Rating | UL: 5A 125/250VAC ENEC: 6A 125/250VAC 1E4; 3A 125/250VAC 30VDC 5E4 |
| Operating Frequency | Electrical: 10 to 30 cycles/minute Mechanical: 120 cycles/minute |
| Initiative Contact Resistance | 100mΩMax |
| Insulation Resistance(at 500vdc) | 100mΩMin |
| Dielectric Strength | AC 1000V RMS(50~60Hz) |
| Storage Temperature | 25T120 |
| Storage Humidity | 85%RH Max |
| Mechanical Cycles | 500000 cycles |
| Electrical Cycles | 10000 to 100000 cycles (Depend on the part NO.) |
G9 Switch Ordering Instruction
| Series | Electrical Rating | Max OF | Terminal Style | Lever Type | Construction | Circuit Code |
|---|---|---|---|---|---|---|
| G9 | P1: 0.1A 125/250VAC 48VDC 5E4 | 150gf | S: Solder | 00: without lever | D: No wire | 1: SPDT |
| 05: 6A 125/250VAC 1E4; 3A 125/250VAC 30VDC 5E4; 5A 125/250VAC | 200gf | P: Straight PCB(0.6mm wide) | 01: Short Straight 17.mm | W: with wire | 2: SPST-NC | |
| 300gf | D:100# quick contact(2.8*0.5mm) | 02: Straight 19.7mm | 3: SPST-NO | |||
| E: Wires Leads to bottom(500mm) | 03: Long Straight 25.8mm | |||||
| F: Wires Leads to Side(Opposite to plunger) | 05: Small simulated roller 18.9mm | |||||
| G: Wires Leads to Side(plunger) | 06: Roller 15.7mm | |||||
| 07: Small simulated roller 19mm | ||||||
| 12: Long Straight 56.2mm | ||||||
G9 Microswitch Application
- Car
- Phone
- Air Conditioner
- Computer
- Humidifiers
- Alarm
- Timer
- Mixer & Meat Griner
- Welding Machine
- Neon Phone
- Fax Machine
- Game Controller
- Pump
- Gas Detector
- Pencil Sharpener
- Money Sorter
- Food Processor
- Electric Knife
- Toy Car
- Juice Extractor
- Light Equipment
- Electric Frying Pan
- Coffee Machine
- Money Sorter
G9 Microswitch Products
driver’s seat G905 without cable Replacement of CrouzetView Details →
Clutch switch G9A05 with cableView Details →
5A 125 250V 10T85 Lever Arm Waterproof MicroswitchView Details →
Micro Switch Roller Type Level SPST NC 5A IP67View Details →
120V Micro Switch Long Travel with UL CertificationView Details →
Microswitch Button IP67 Waterproof Long PlungerView Details →
5A Micro Switch Single Pole Single Throw NO IP67View Details →
Micro Switch with Cord and Long TravelView Details →
Heavy Duty Micro Switch Hydraulic Lock Wiring Harness PartView Details →
20T120 Temperature Snap Switch SPST NC MicroswitchView Details →
Customized Micro Switch Company With wiringView Details →

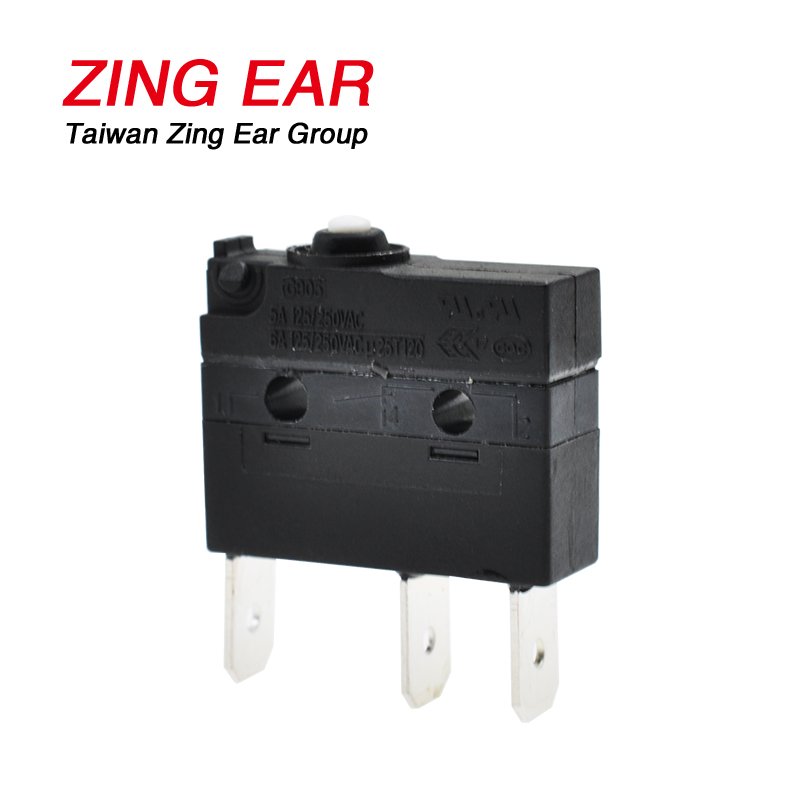

Micro Plunger Switch Zing Ear G905 25T120 SPDT MiniView Details →
PCB Micro Switch 3 Pin 10 Amp 125 250V SPDT G91View Details →
Micro Switch SPDT Dust Proof 5A 250VAC T125View Details →
Small Simulated Roller Lever Micro Switch 5A 250VACView Details →
3.5mm Travel Waterproof Micro Switch Long PlungerView Details →
G9A Water Proof Mini Snap ction switchView Details →
G905 IP67 SPST NO UL CUL 125VAC 5a 250VAC Micro SwitchView Details →

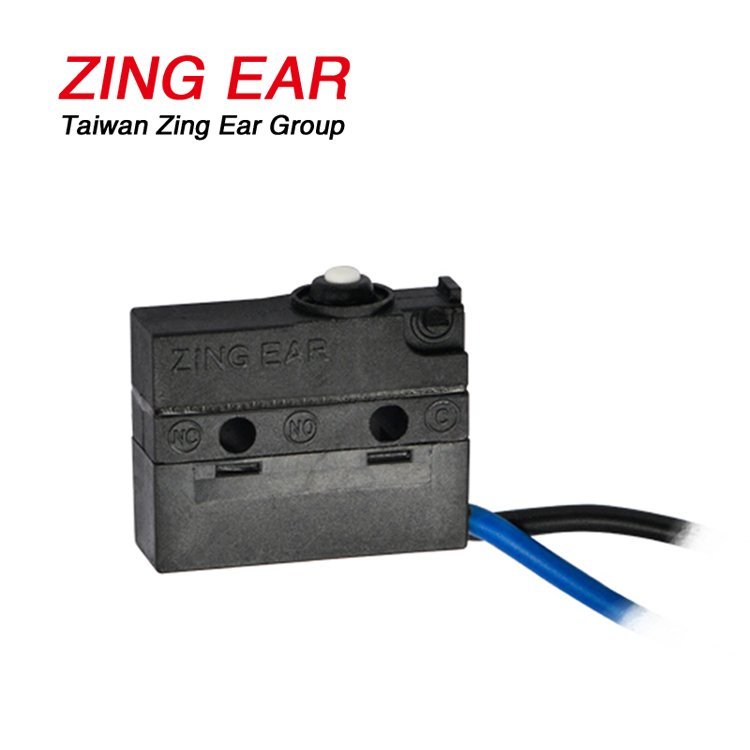

G905 6 Amp Plunger SPST NO Circuit Board Micro SwitchView Details →
Zing Ear G905 IP67 Waterproof Simulated Roller Sealed Micro SwitchView Details →
G905 Sealed Small Normally Closed Electronic Micro SwitchView Details →
G905 Small Simulated Roller ENEC Micro Switch 3 PinView Details →

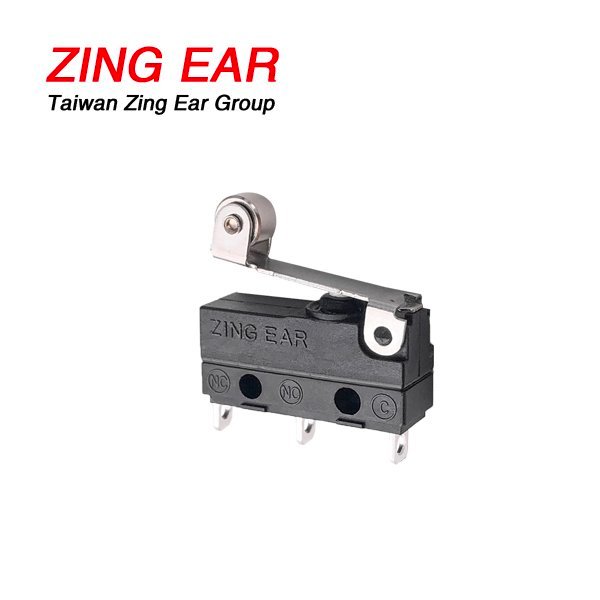

G905 T85 5e4 Rollor Latching Water Proof Micro SwitchView Details →

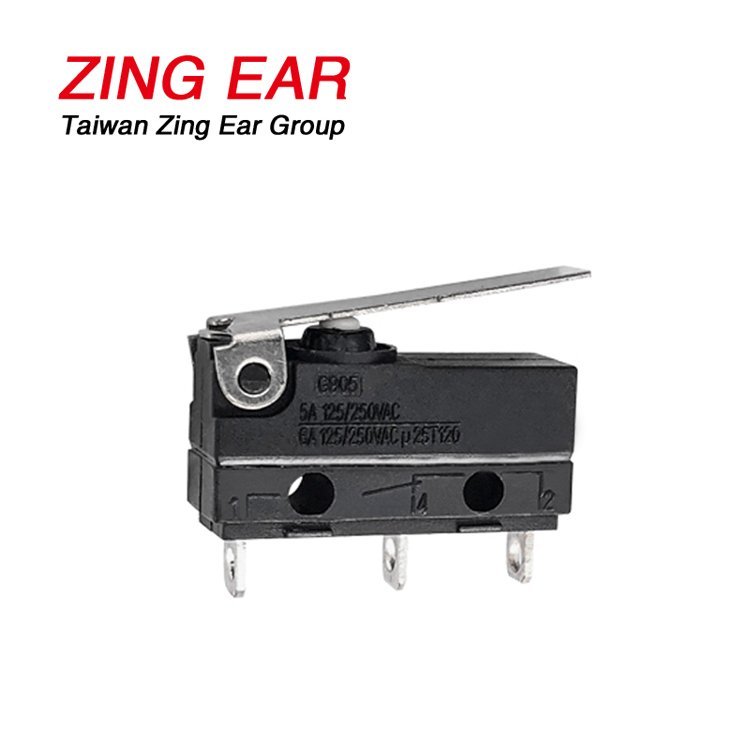

G905-200S02D1 IP67 Standard Lever Mini SPDT Micro SwitchView Details →

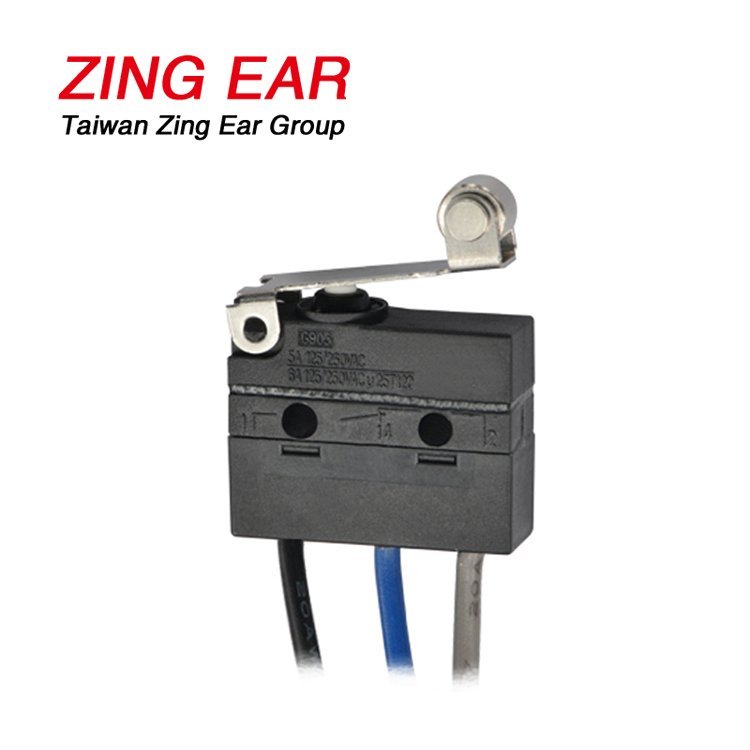

G905-200E06W1 125V 250VAC Water Proof Roller Micro Switch Lever MicroswitchesView Details →
