The G5W11 waterproof momentary micro switch is generally used to replace the Omron D2VW or in some device that has a high requirement in quality & production level. Because our technology was from Japan, we were one of the OEM manufacturers of Honeywell. Meanwhile, our G5W11 protection level is IP67, which means it can work underwater for less than or equal to 1M.
| Item Number | G5W11-WZ100A06-W3 |
|---|---|
| Rating | ENEC/CQC: 10A 125/250VAC, 10A 30VDC; UL/CUL: 10A 125/250VAC |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 500,000cycles |
| Mechanical Life | 1000,000cycles |
| Installation Hole | Φ3.1mm |
| Protection Level | IP67 |
| Voltage Resistance | AC 1000V RMS (50~60Hz) |
| Operation Force | 100g f |
| Current Code | SPDT |
| Lever Type | 06# Roller Lever |
Waterproof Momentary Micro Switch Details
Waterproof Momentary Microswitch Features
The G5W11 waterproof momentary micro switch is generally used to replace the Omron D2VW or in some device that has a high requirement in quality & production level. Because our technology was from Japan, we were one of the OEM manufacturers of Honeywell. Meanwhile, our G5W11 protection level is IP67, which means it can work underwater for less than or equal to 1M. Besides, the G5W11 momentary microswitch also has the CQC, ENEC, UL, and cUL certification for providing to your country. In like manner, if you need other parameters of the switches, please contact us to get more details.

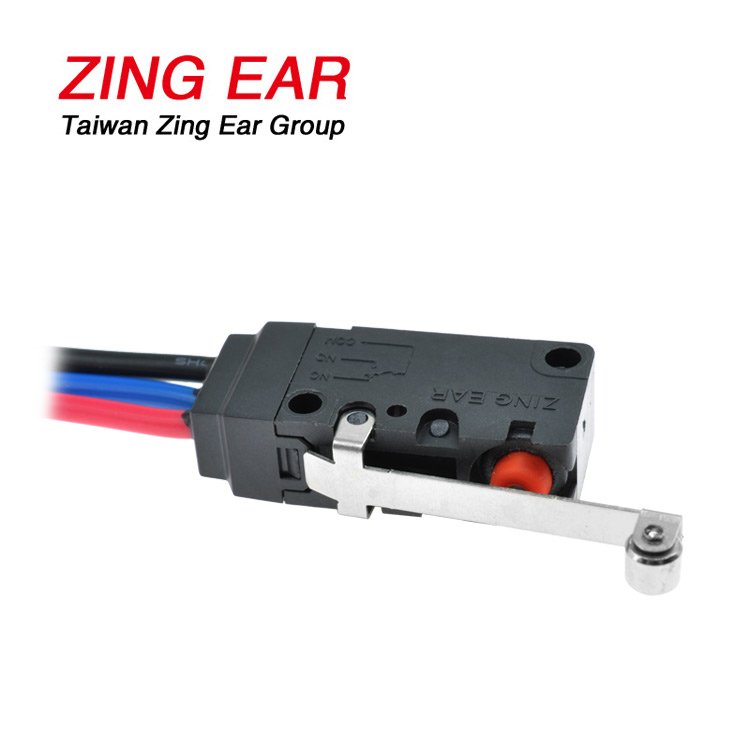

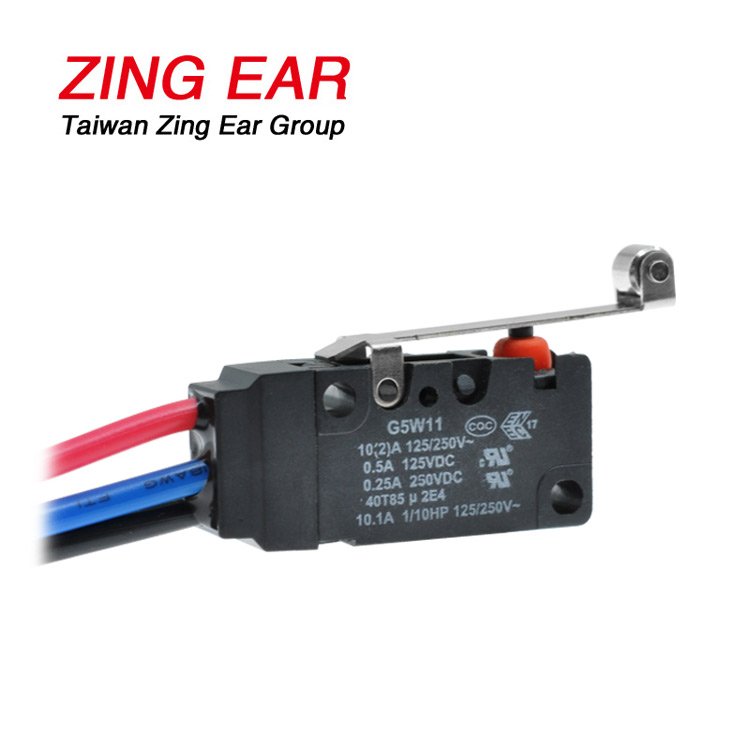

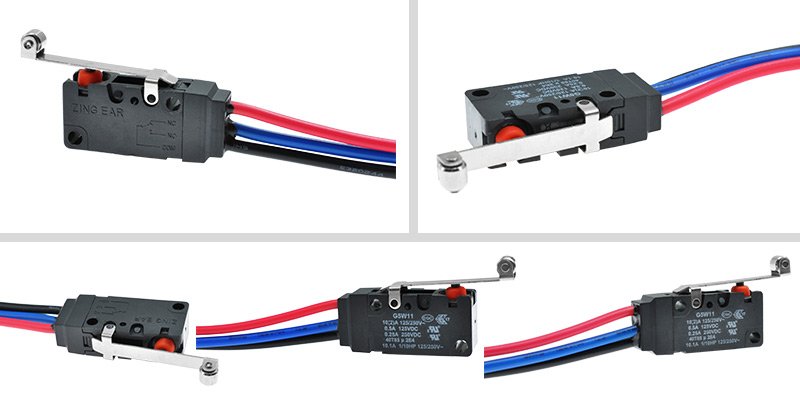

IP67 Momentary Micro Switch Photos

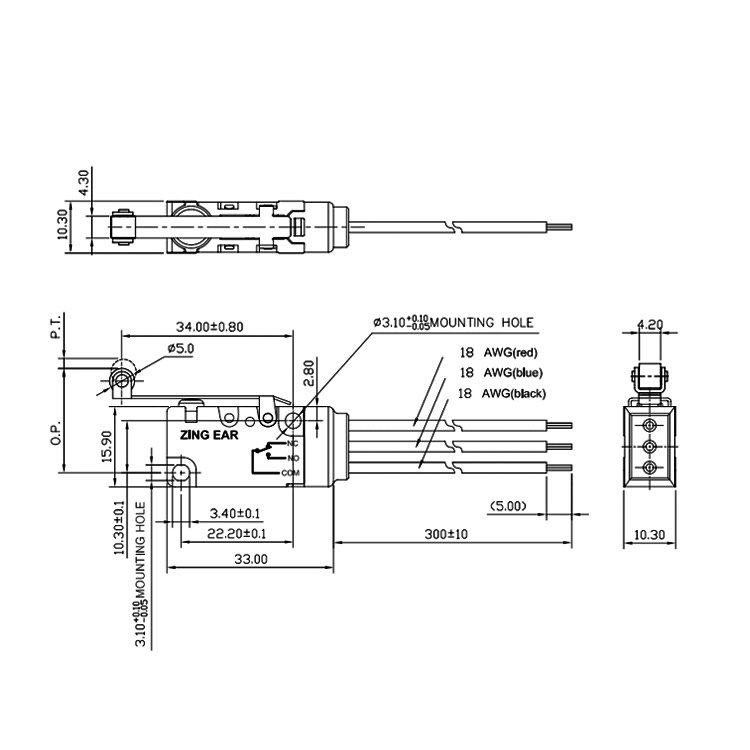

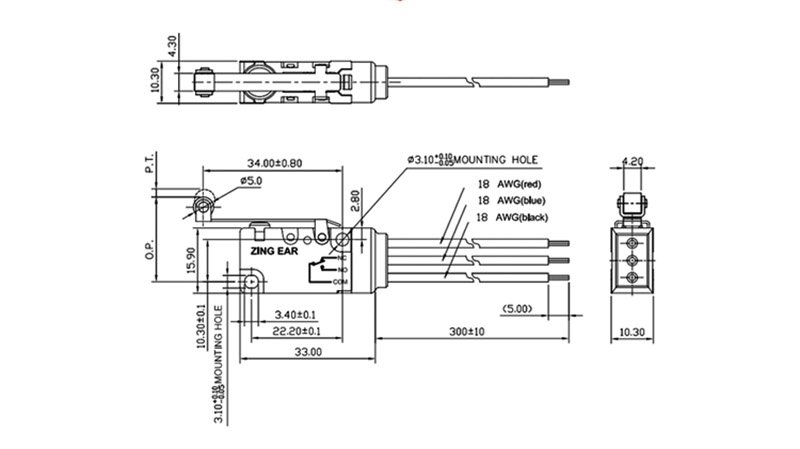

The G5W11-WZ100A06-W3 Drawing
