ATEX Lever Micro Switch 10A Waterproof Explosion Proof

Short Description:  ATEX lever micro switch also means explosion-proof microswitch, this model its rating is “10A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC” with ENEC, UL, cUL, CQC, and ATEX certifications.

Item Number G5W11-WC200A07-W3N
Rating ENEC/CQC: 10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC UL/cUL: 10.1A 1/10HP 125/250VAC, 0.5A 125VDC, 0.25A 250VDC
Temperature -40~85℃ (40T85)
Electrical Life 500,000cycles
Mechanical Life 1000,000cycles
Installation Hole Φ3.1mm
Protection Level IP67
Voltage Resistance AC 1000V RMS (50~60Hz)
Operation Force 200g f
Current Code SPST-NO
Lever Type 07# Metal Roller Lever

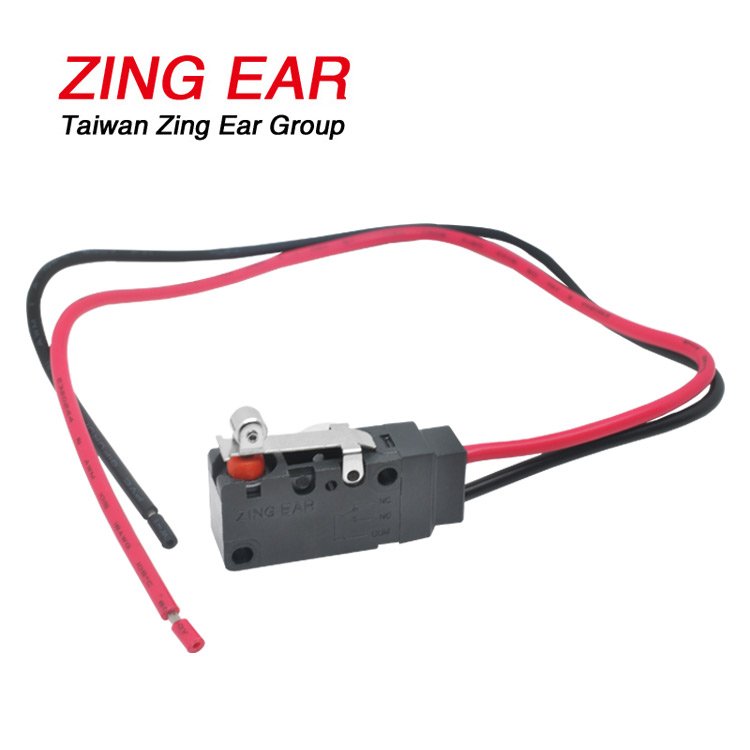

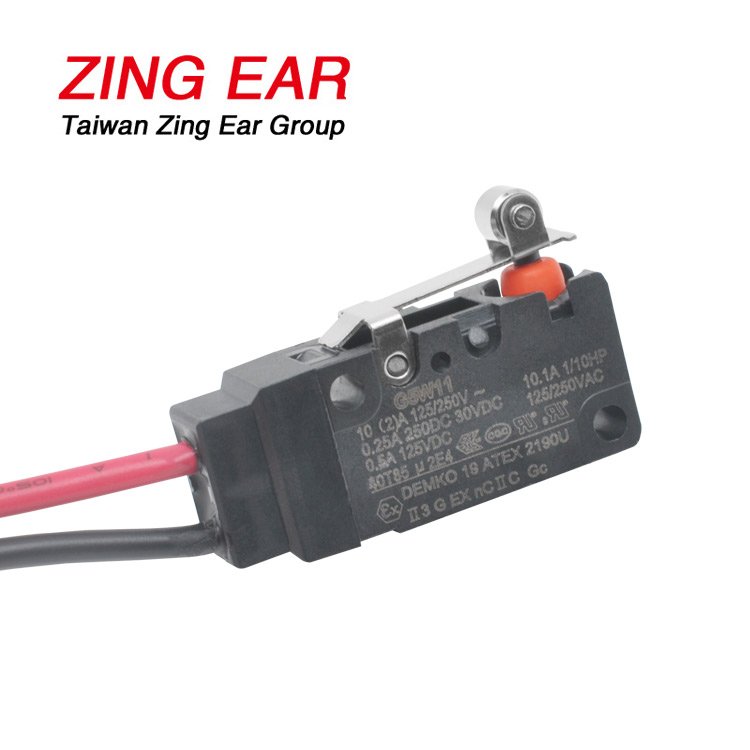

G5W11 ATEX Lever Micro Switch Details

ATEX Lever Micro Switch Features

The G5W11-WC200A07-W3N is an ATEX lever micro switch, which is also called an explosion-proof microswitch as well. Because ATEX means explosion-proof certification generally. Meanwhile, in order to meet the requirement of customers, this model also has the ENEC, UL, cUL, CQC, and ATEX certifications and its certificated rating is “10A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC”. Besides, this model has SPST NO 2 lead wires from the switch, so no matter on the terminal side or actuator side, it is dust-proof and waterproof at the IP67 level. So, we can use this model in many kinds of environments. What’s more, as also can customize the wiring harness with microswitches, welcome to contact us to have more detailed information. Thank you.

ATEX Lever Micro Switch Pictures

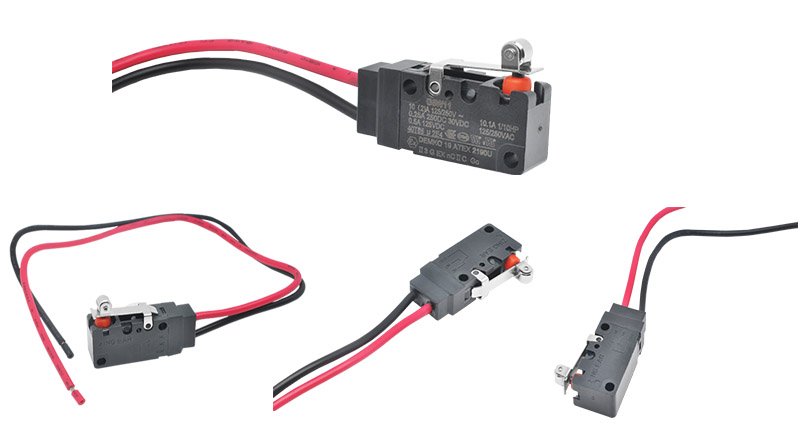

ATEX Lever Micro Switch Pictures

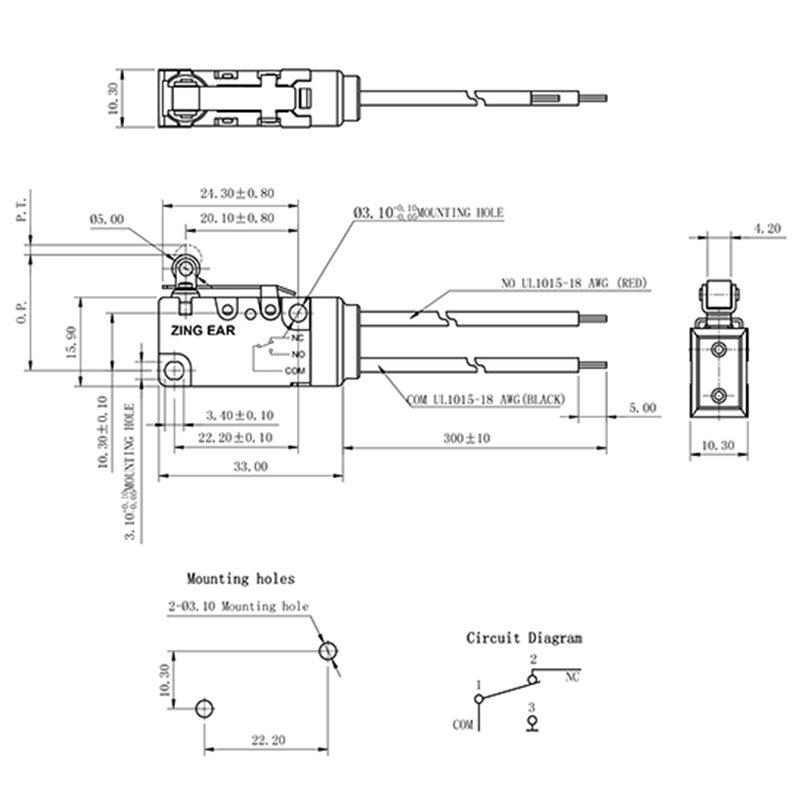

ATEX Lever Micro Switch Drawing

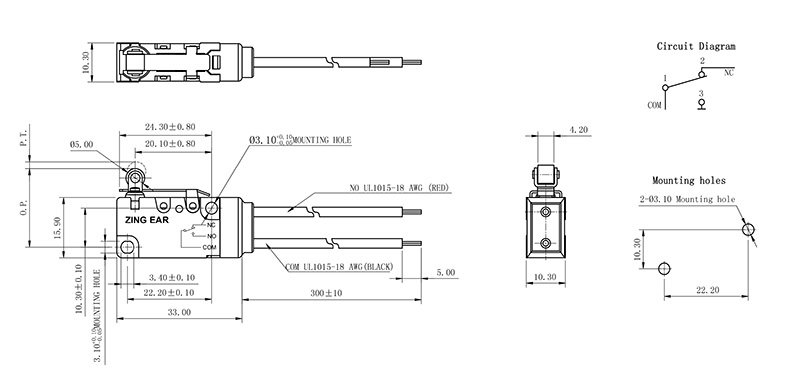

G5W11-WC200A07-W3 ATEX Lever Micro Switch Drawing
