Short Description: 40T85 5E4 switch means that the switch can work in -40 to 85 ℃ with 50000 electrical cycles in 0.1A 48VDC and 0.1A 125/250VAC rating. Meanwhile, the 5A and 10A types are also available.
| Item Number | G5W11-WC200-W1 |
|---|---|
| Rating | 0.1A 125/250VAC, 0.1A 48VDC; |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 500,000cycles |
| Mechanical Life | 1000,000cycles |
| Installation Hole | Φ3.1mm |
| Protection Level | IP67 |
| Voltage Resistance | AC 1000V RMS (50~60Hz) |
| Operation Force | 200g f |
| Current Code | SPST-NC |
| Lever Type | Without Lever |
40T85 5E4 Switch Details
40T85 5E4 Switch Features
The G5W11-WC200-W1 is a 40T85 5E4 switch and the 40T85 5E4 means the switch can work in -40 to 85 ℃ with 50000 electrical cycles. Generally, the 5E4 is certificated by the ENEC and the UL will not show like that. However, in order to meet the requirement of different countries, it also not only has the UL/cUL certifications but also the ENEC/CQC certifications in 0.1A 48VDC and 0.1A 125/250VAC ratings. Meanwhile, the 5A and 10A types are also available. The current code of this model is single pole single throw with a normally closed function. Meanwhile, this model has a sealed structure with waterproof protection level.

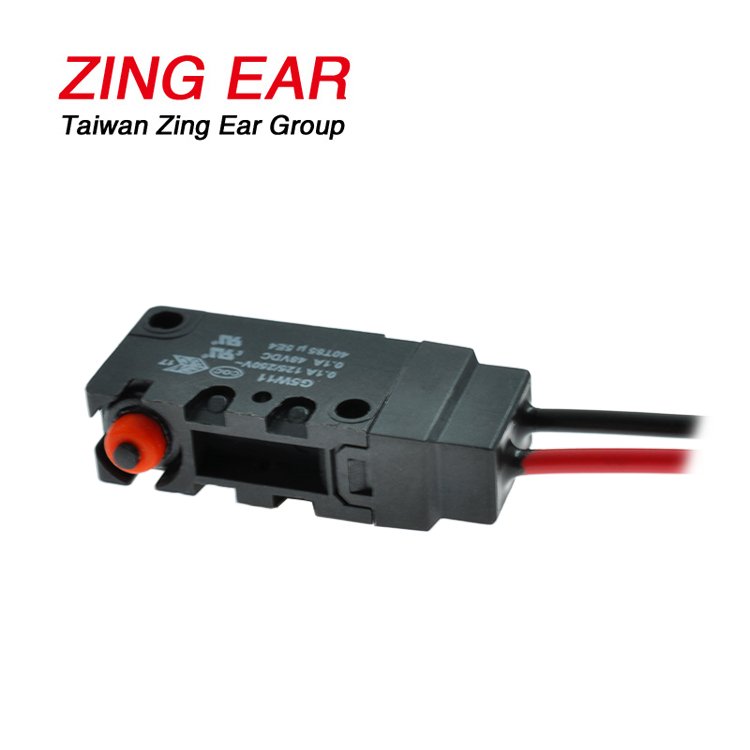

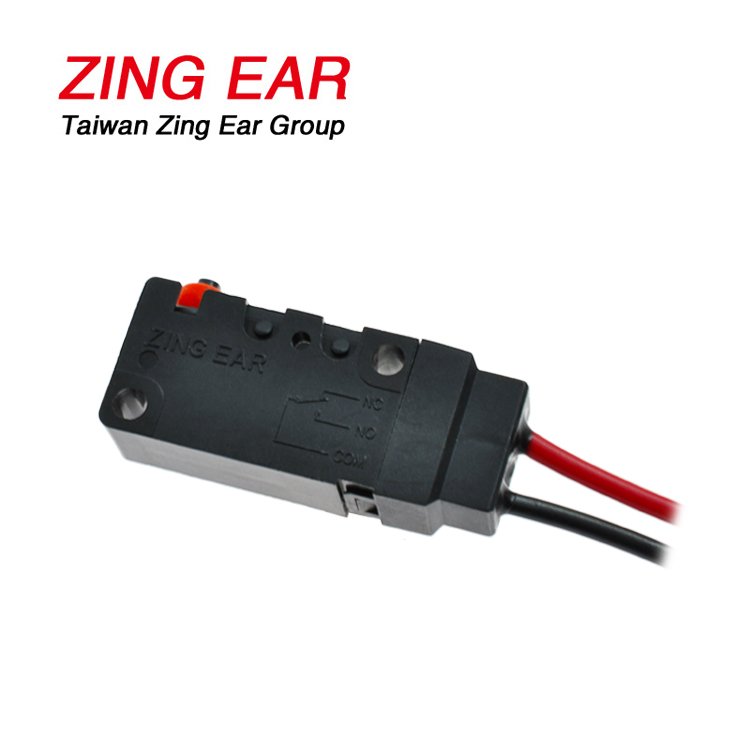

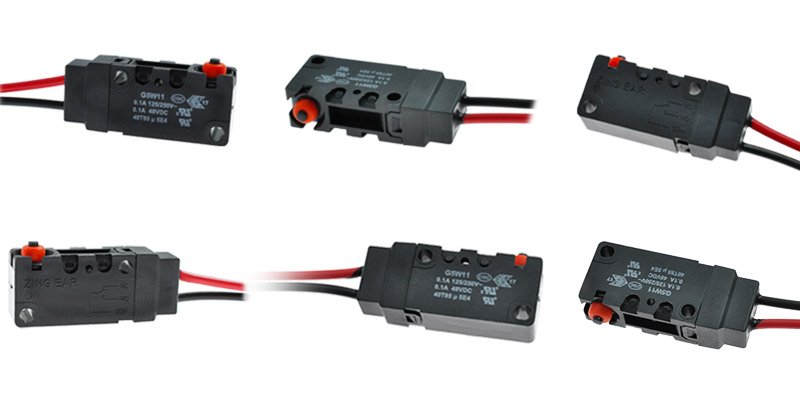

40T85 5E4 Switch Photos

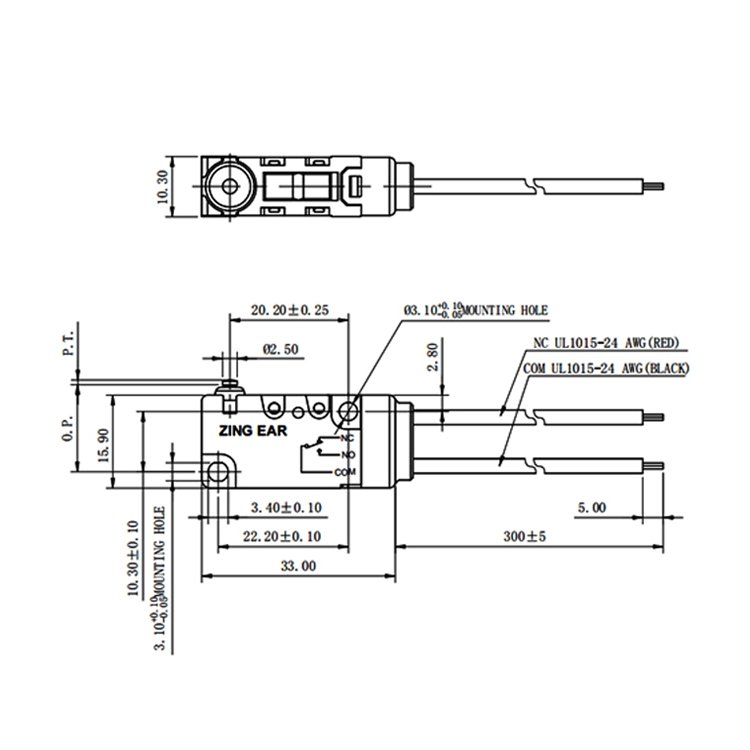

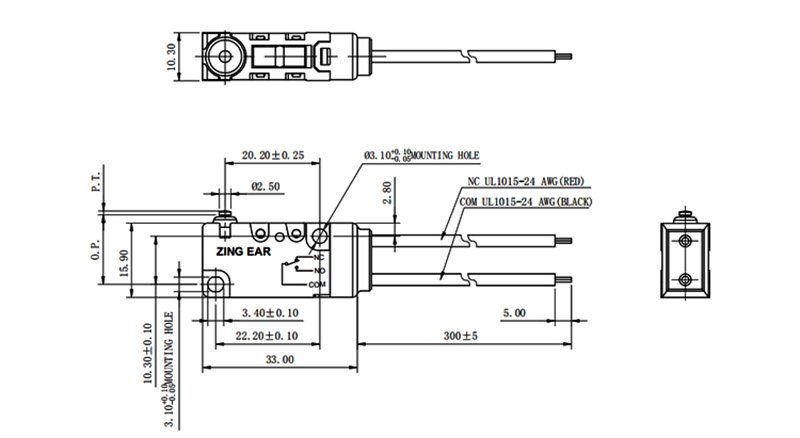

40T85 5E4 Switch Drawing
Welcome to contact us to get the G5W11-WC200-W1 datasheet details.

Our Advantages
- Production System: ISO9001,ISO/TS16949, ENEC;
- Product: UL, cUL, ENEC, CQC;
- Material: RoHS, REACH
