This is a lever arm limit switch that has an IP67 waterproof protection level with wire and SPST normally closed circuit diagram. 10A 125/250VAC, 0.5A 125VDC, and 0.25A 250VDC rating.
| Item Number | G5W11-WC200A02-W3 |
|---|---|
| Rating | ENEC/CQC: 10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC; UL/CUL: 10.1A 1/10HP 125/250VAC, 0.5A 125VDC, 0.25A 250VDC |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 20,000cycles |
| Mechanical Life | 1000,000cycles |
| Installation Hole | Φ3.1mm |
| Protection Level | IP67 |
| Voltage Resistance | AC 1000V RMS (50~60Hz) |
| Operation Force | 200g f |
| Current Code | SPST-NC |
| Lever Type | 02# Straight Lever |
Lever Arm Limit Switch Details
Lever Arm Limit Switch Features
The G5W11-WC200A02-W3 is a lever arm limit switch that has an IP67 waterproof protection level with wire and SPST normally closed circuit diagram. And then it is a sealed structure microswitch with a waterproof case, so you can use it in a wet environment. Meanwhile, the switch also has the UL, cUL, ENEC, and CQC certifications. The certificated rating is 10A 125/250VAC, 0.5A 125VDC, and 0.25A 250VDC rating. I mean that it is not only suitable for direct voltage but the alternating voltage as well. However, this is only one model of the G5W11 series, if you need other parameters, like the different current, lever type, terminal type, or anything else, please contact us or visit our product page to see. Besides, as a switch manufacturer, we not only have the microswitch but also have the push button switch, dimmer switch, and so on. Welcome to contact us to get more details, the free samples and datasheets are available.

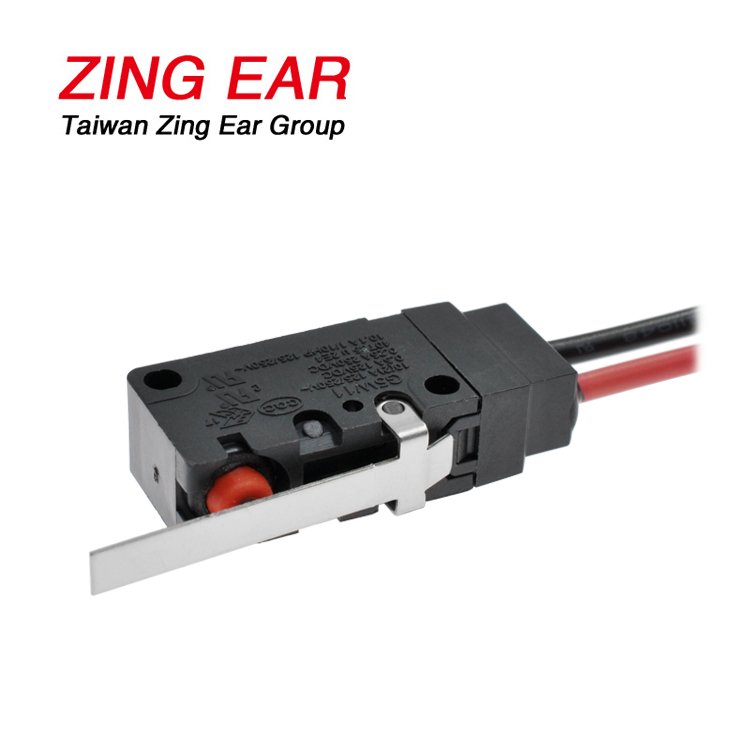

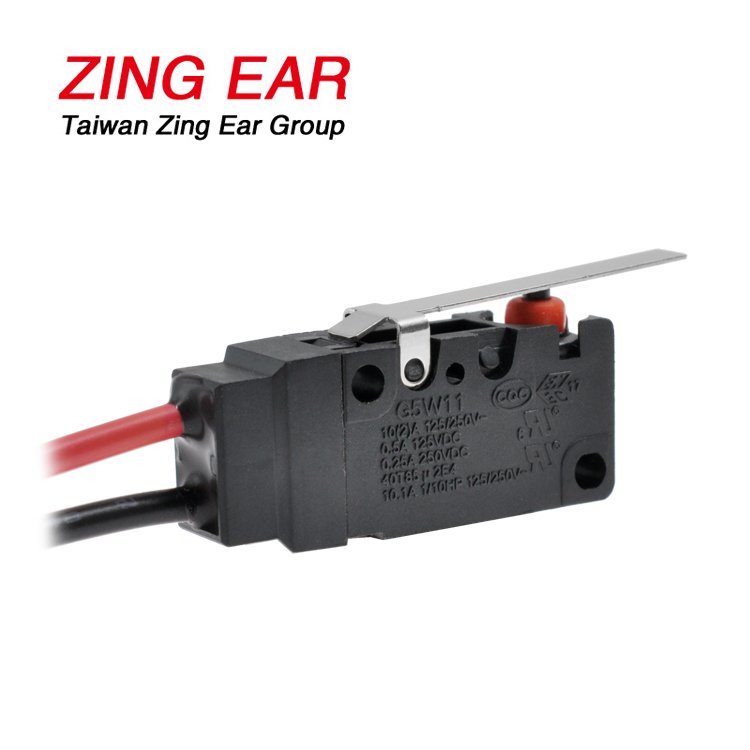

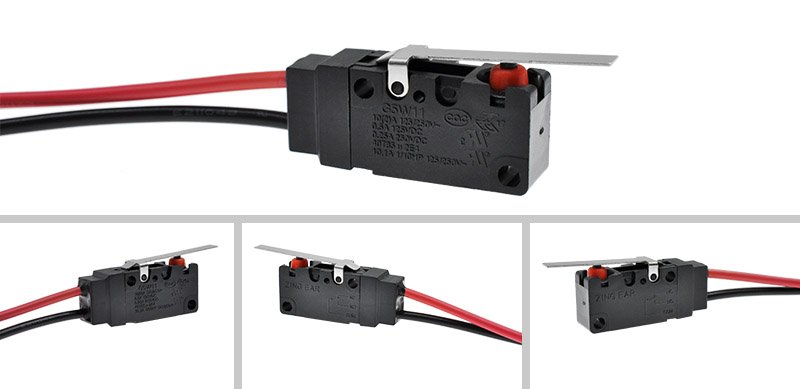

Lever Arm Limit Switch Photos

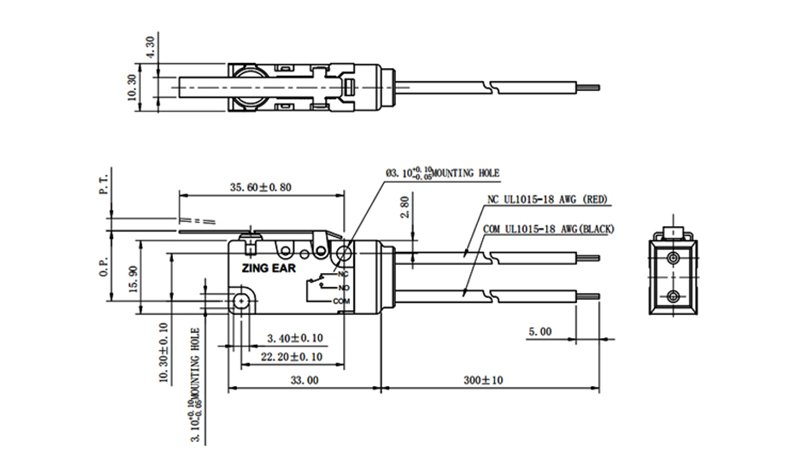

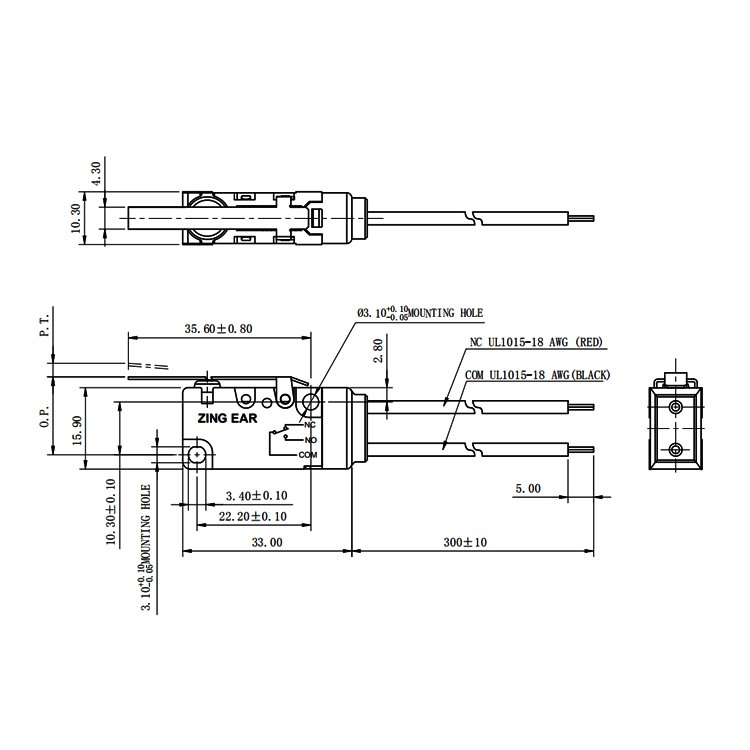

The Lever Arm Limit Switch Drawing
