Short Description: Zing Ear G5W11-WP200A03 micro electrical switch has a long lever and normally open current code with 2 cables on the switch. Meanwhile, it is a waterproof function with an IP67 protection level.
| Item Number | G5W11-WP200A03-W1/W2/W3 |
|---|---|
| W2 Rating | ENEC/CQC: 5A 125/250VAC, 5A 30VDC; UL/CUL: 5A 125/250VAC |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 500,000cycles |
| Mechanical Life | 1000,000cycles |
| Installation Hole | Φ3.1mm |
| Protection Level | IP67 |
| Voltage Resistance | AC 1000V RMS (50~60Hz) |
| Operation Force | 200g f |
| Current Code | Normally Open |
| Lever Type | Long Straight Lever |

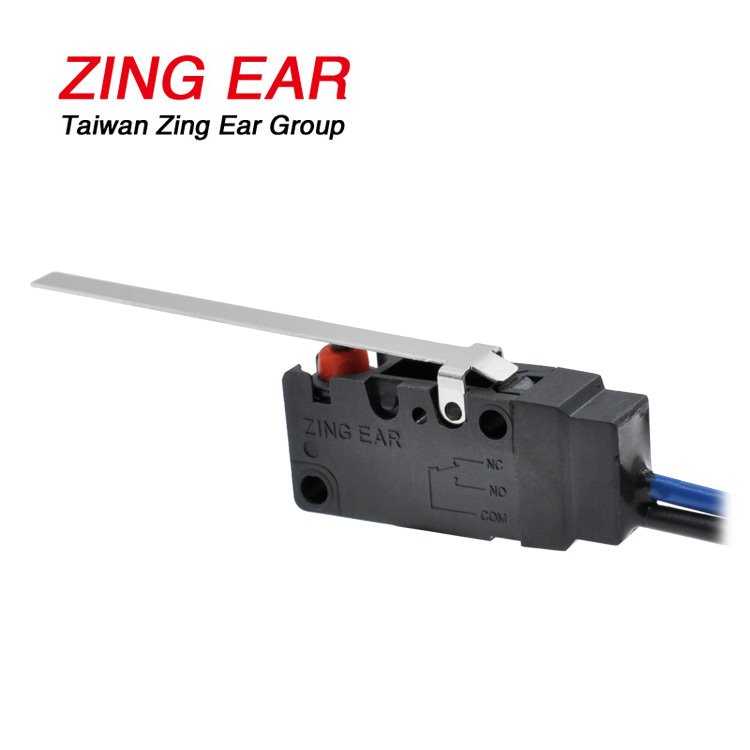

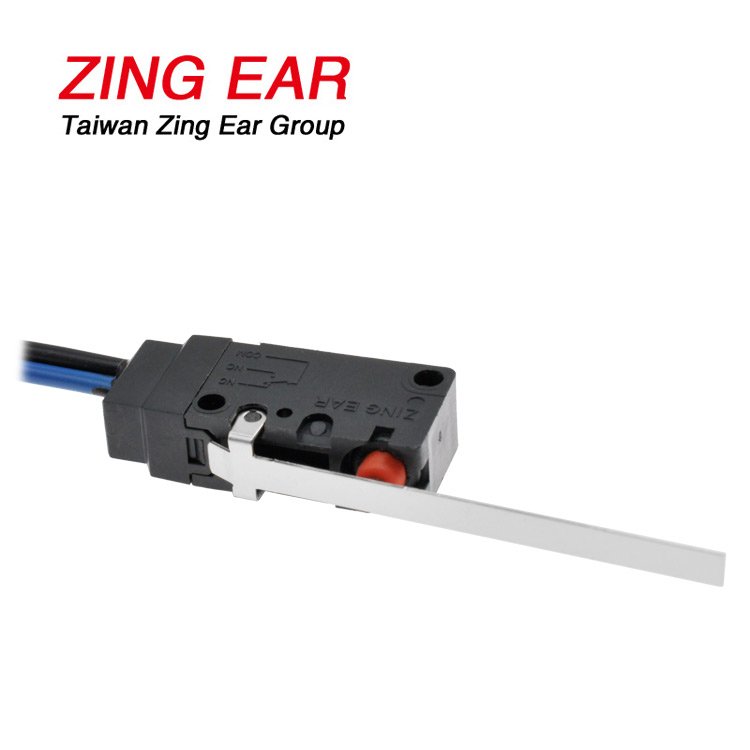

Micro Electrical Switch Details
SPST-NO Micro Electrical Switch Features
Zing Ear G5W11-WP200A03 micro electrical switch has a long lever and normally open current code with 2 cables on the switch. Meanwhile, it is a waterproof function with an IP67 protection level. Besides, for this model, there 3 ratings for options. The first one is the 1A 125/250VAC, the second one is the 5A 125/250VAC, and the last one is 10A 125/250VAC. So, buyers can choose the rating as their need. What’s more, this micro electrical switch has different kinds of cable parameters. Such as the UL1007, UL1430, UL1061, AVSS, FLRY-A, and so on. Now, more and more equipment needs explosion-proof certifications. For example, the compressor for the refrigerator and air conditioner will need it. To meet the requirement, our G5W11 can be an explosion-proof microswitch. For more details, welcome to contact us to get the details or visit our microswitch shop

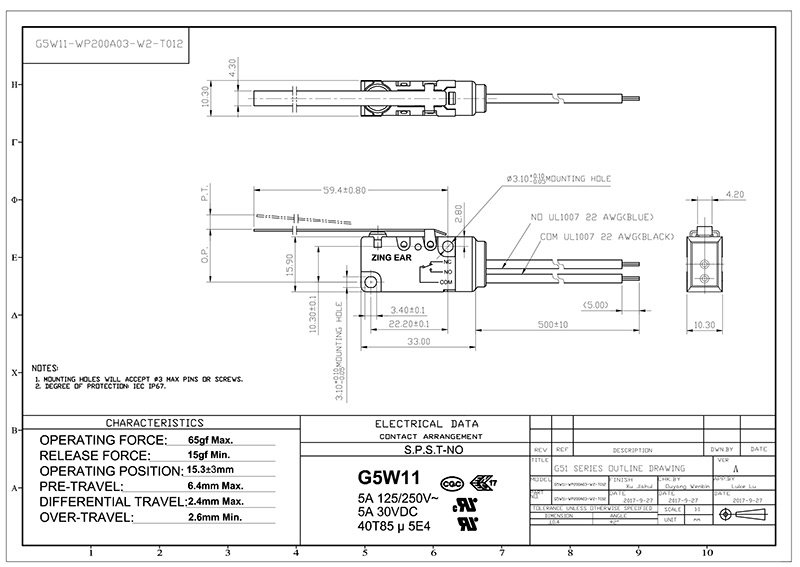

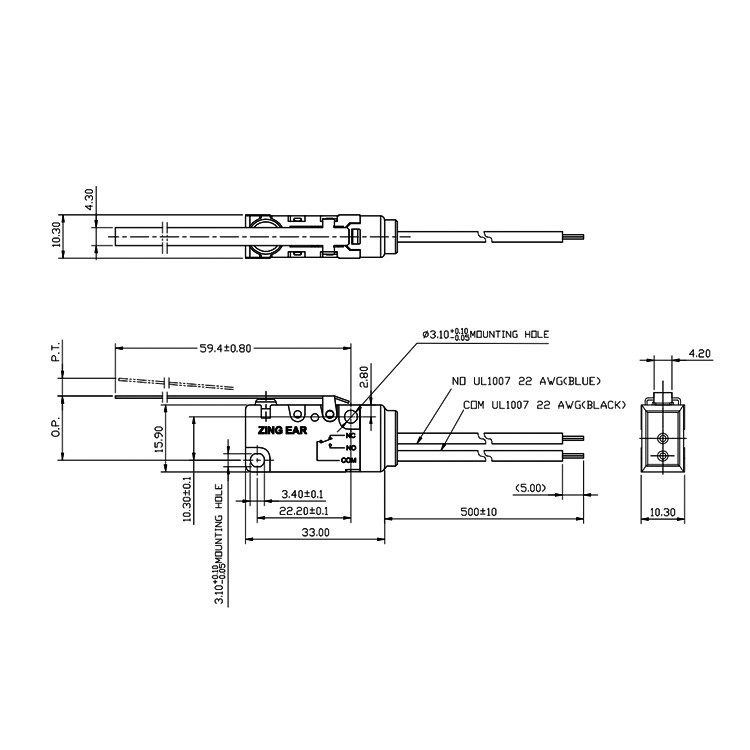

The G5W11-WP200A03-W2 Micro Electrical Switch Drawing
You can know most of the details in this drawing but if you have any questions, welcome to contact us
