G5W11 microswitch 0.1A 250V 125VAC is approved by the UL, ENEC, and CQC. Which has a wide working range from -40℃ to 85℃ and minimum electrical life is 50000 cycles.

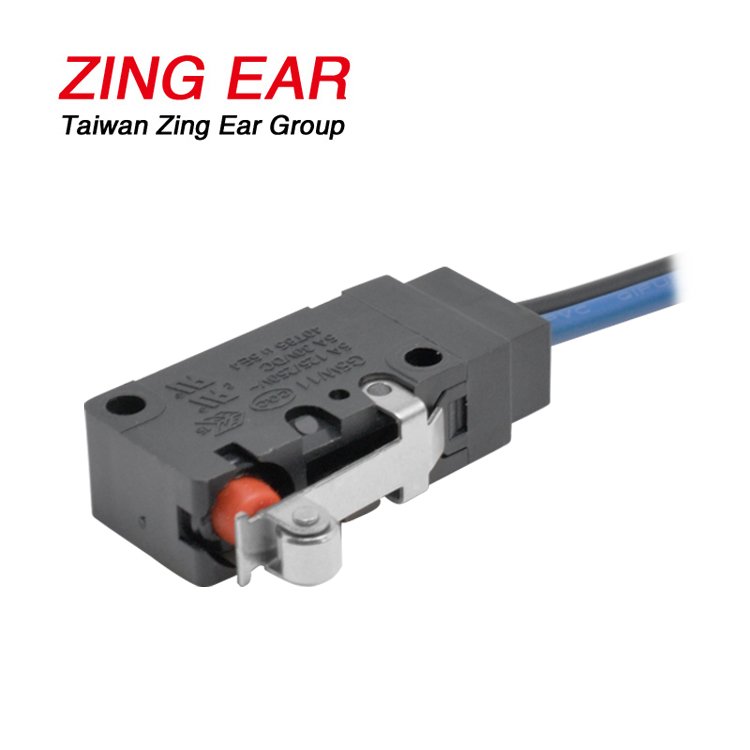

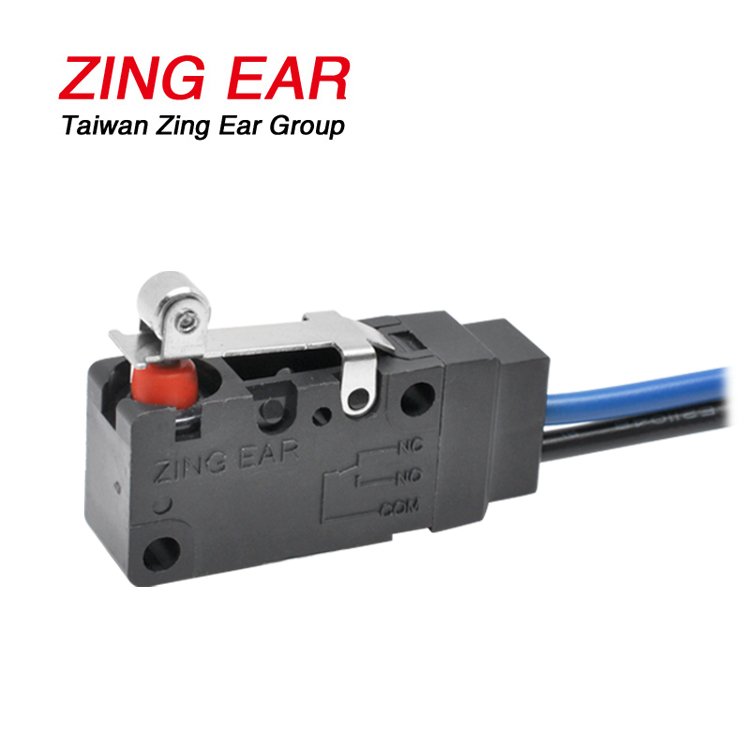

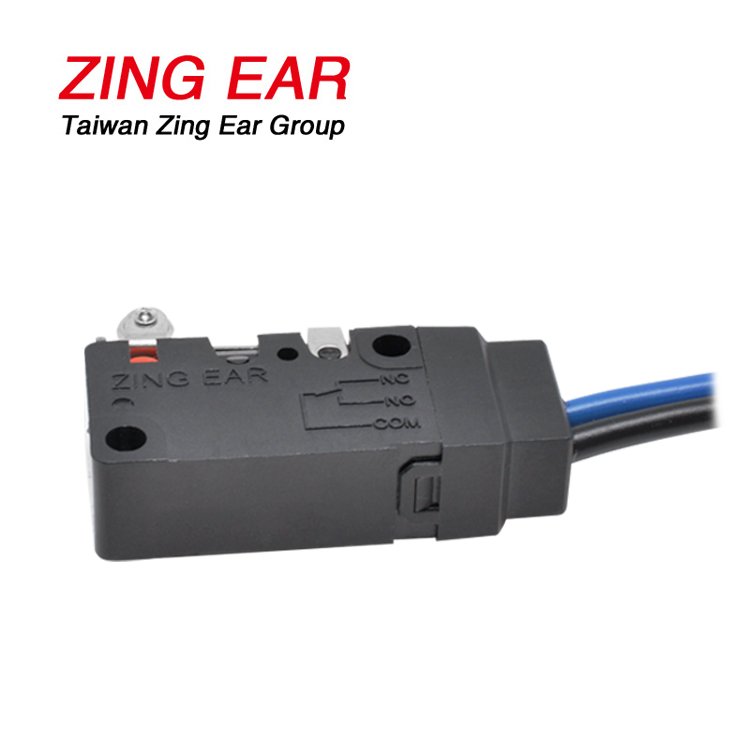

G5W11 Farm tractor hand brake roller handle micro switch

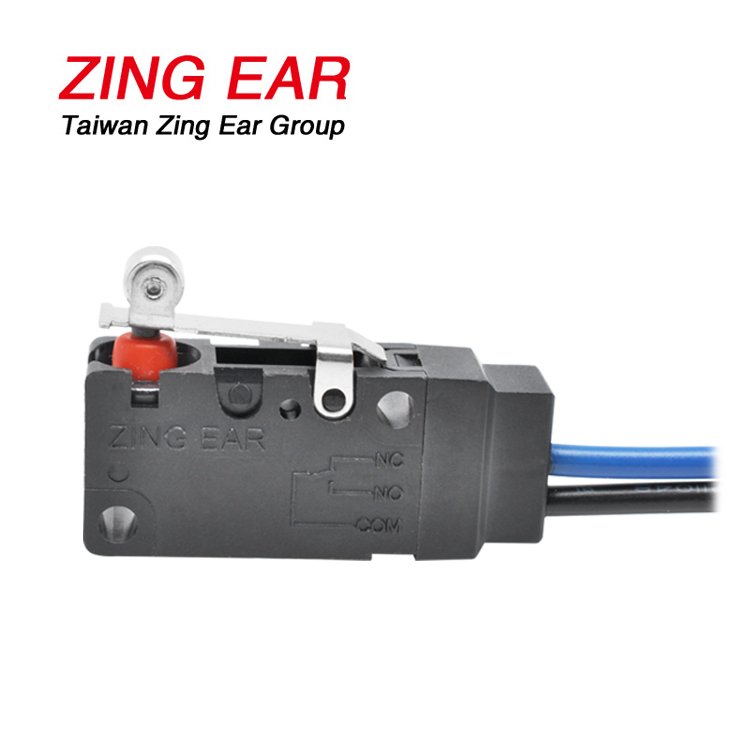

- MPN: G5W11-WP200A07-W2
- Rating: 0.1A,125/250VAC;3A/12VDC:0.1A/48VDC:PIE5
- Contact Arrangement: SPST NC
- Operation Force: 200gf
- Lever Type: Without Lever
- Certification: UL, cUL, ENEC, CQC
- Sample & Datasheet & Quotation: Available
G5W11 Farm tractor hand brake roller handle micro switch
G5W11 Farm tractor hand brake roller handle micro switch





G5W11 Farm tractor hand brake roller handle micro switch Features
Waterproof Snap Switch Features

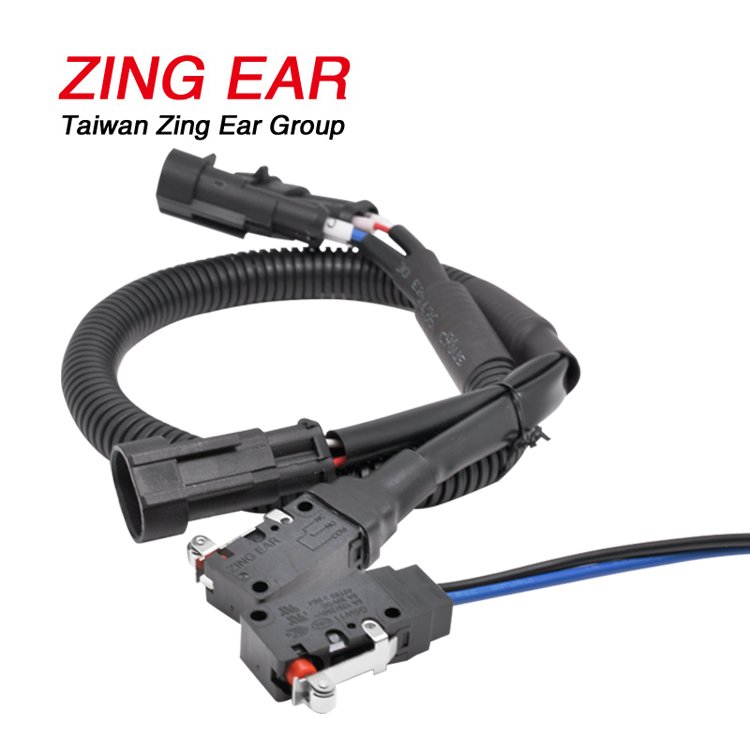

This model has the ATEX certifications so we will call it the explosion proof micro switch, which can meet the EX DEMKO 18 ATEX 2190U standard, if you need to know the certifications information, don’t hesitate to get in touch with us to have the samples. Meanwhile, it not only has an explosion-proof function but has dustproof and waterproof functions as well. Its protection level is IP67. Generally, we can provide the product for some customized service. For example, for this switch without a lever, we can add one to it. You need 3 wires or 2 wires, we also can produce we well. If you need to customize the wire harness with microswitches, we all can meet your requirement.
The Parameters of Waterproof And Dustproof Basic Micro Switch G5W11
| Operating Speed | 0.1mm 1m/s(Related with actuator forms) | ||
| Operating Frequency | Mechanical 60 cycles/min Electrical 15 cycles/min. | ||
| Insulation Resistance | ≥100MΩ(500VDC) | ||
| Contact Resistance (Initial Value) | ≤100mΩ | ||
| Voltage Reslstance | Between each terminals of the same polarity | AC1000V,50/60Hz,1min | |
| Between current-carrying metal part and ground and between each terminal and non-current carrying metal parts | AC1500V,50/60Hz,1min | ||
| Vibration Resistance | 10-55Hz Double amplitude 1.5mm | ||
| Shock Resistance | Destruction: | OF>1.0 N:1000m/s 2 (approx.100g) maxOF≤1.0 N:400m/s 2 (approx.40g) OF>1.0 N:200m/s 2 (approx.20g) max OF≤1.0 N:100m/s 2 (approx.10g) max | |
| Service Life | Mechanical ≥10,000,000 cycles or 1,000,000 cycles Electrical ≥50,000 cycles or 100,000 cycles | ||
| Unit Net Weight | Approx.6.2g (without lever) | ||
