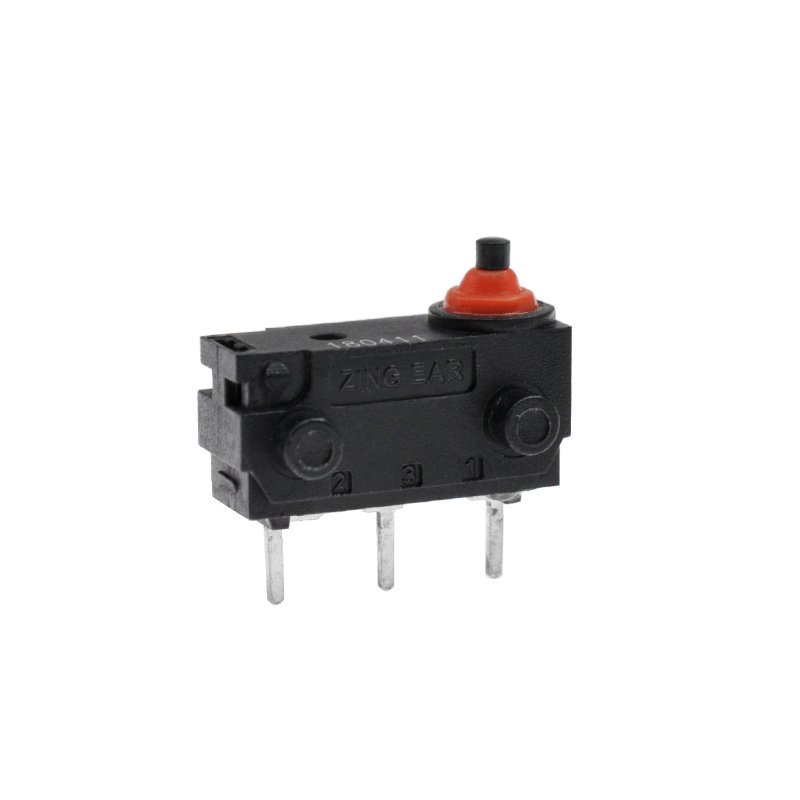

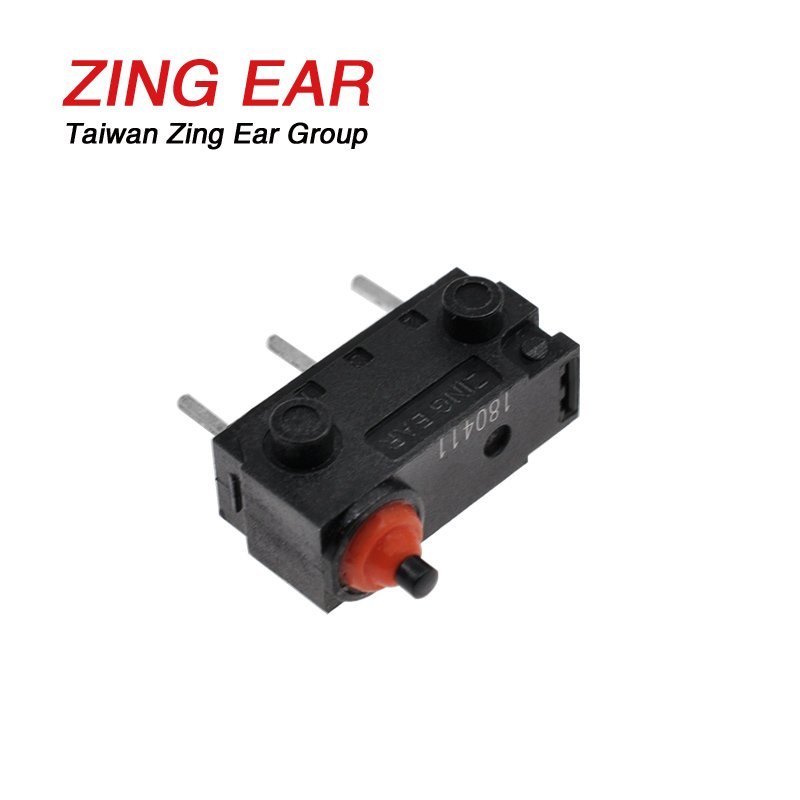

The G303-130P00A3B is a micro SPDT switch with PCB terminals and a waterproof dustproof function. So that it can be used in the wet and outdoor environment with an IP67 protect level. Meanwhile, this item is small and its length is 1.33cm.
| Item Number | G303-130P00A3B |
|---|---|
| Rating | 0.1A 125/250VAC; 3A/12VDC; 0.1A/48VDC |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 100k cycles |
| Mechanical Life | 500k cycles |
| Protection Level | IP67 |
| Insulation Resistance | 100mΩ Min |
| Dielectric Strength | 500VAC(50-60Hz) |
| Operation Force | 130g f |
| Current Code | SPDT |
| Lever Type | Without Lever |
Micro SPDT Switch Details
The Micro SPDT Switch Features
The G303-130P00A3B is a micro SPDT switch with PCB terminals and a waterproof dustproof function. So that it can be used in the wet and outdoor environment with an IP67 protect level. Meanwhile, this item is small and its length is 1.33cm. Generally, we can use it to install on the printed circuit board with other Electronic Components. Such as the automotive lights control unit, car door lock actuator, power tools, and so on. Besides, the G303 series have so many parameters can options. For example, if you need other terminals for the switch because your installation is soldering. We will provide the solder terminal switch for you. So, no matter what your requirement is, we will provide the switch you need to. If you don’t know how to choose a switch, please tell us your requirement and then we will recommend it to you.

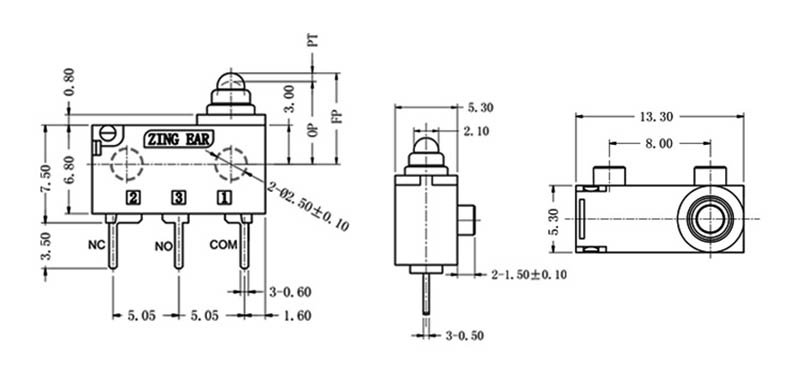

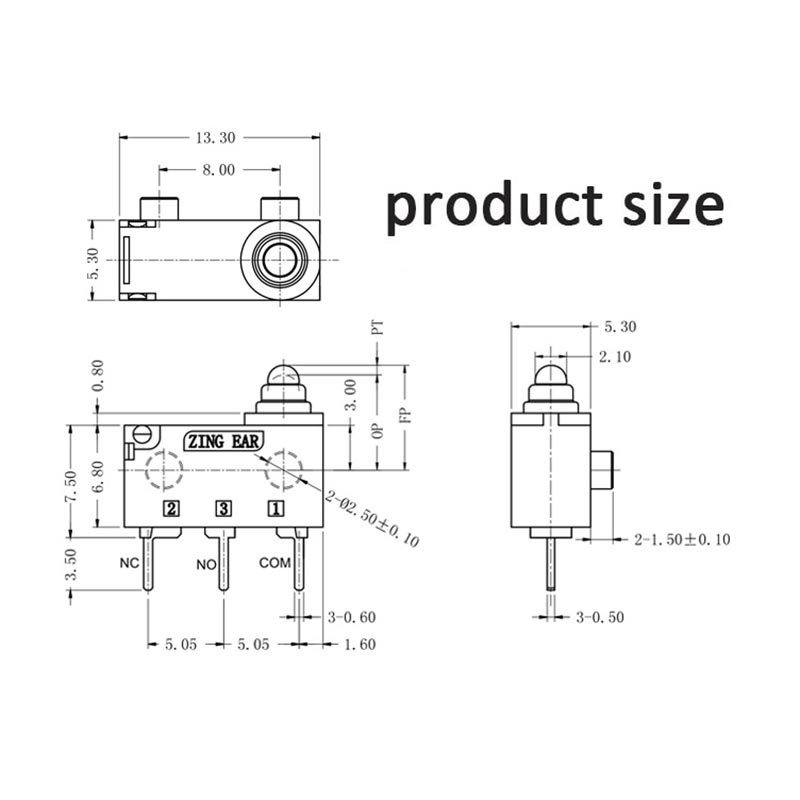

The Micro SPDT Switch Drawing

Our Advantage
Many kinds of certifications can provide. For example, we can provide the ENEC, CQC, and UL for products. Besides, we not only can supply ROSH and REACH for materials but also can provide the ISO9001, ISO14001, and TS16949 for the production system.
