As a silent micro switch, the G304 is not only subminiature but also has a waterproof function with a normally closed NC circuit code. Generally, it will be used in automotive parts, electric power tools, etc. Something requires to resist the water and oil. Meanwhile, this silent microswitch has 2 pin PCB terminal to install on the printed circuit board.
| Item Number | G304-150P00F39 |
|---|---|
| Rating | 0.1A 12VDC; 50uA 30VDC |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 300000 cycles |
| Mechanical Life | 300000 cycles |
| Protection Level | IP67 |
| Insulation Resistance | 100mΩ Min |
| Dielectric Strength | 500VAC(50-60Hz) |
| Operation Force | 150g f |
| Current Code | SPST-NC |
| Lever Type | Without Lever |
Silent Micro Switch Details
Silent Micro Switch Features
As a silent micro switch, the G304 is not only subminiature but also has a waterproof function with a normally closed NC circuit code. Generally, it will be used in automotive parts, electric power tools, etc. Something requires to resist the water and oil. Meanwhile, this silent microswitch has 2 pin PCB terminal to install on the printed circuit board. And if you need more parameters about our switch, such as the OF, Current, Voltage, levers, or change the terminal type, welcome to contact us to get more information. For more of our switch products, please click the link to check.

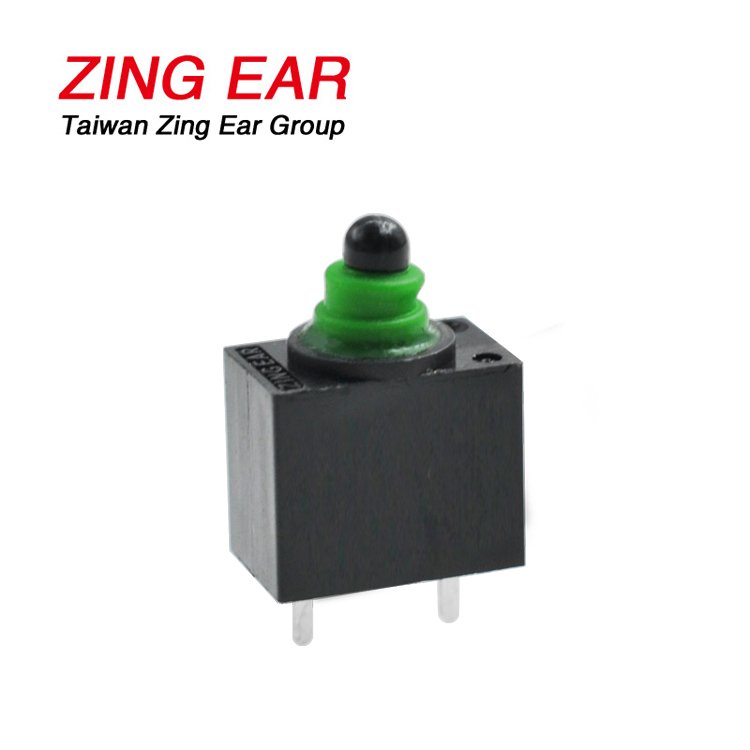

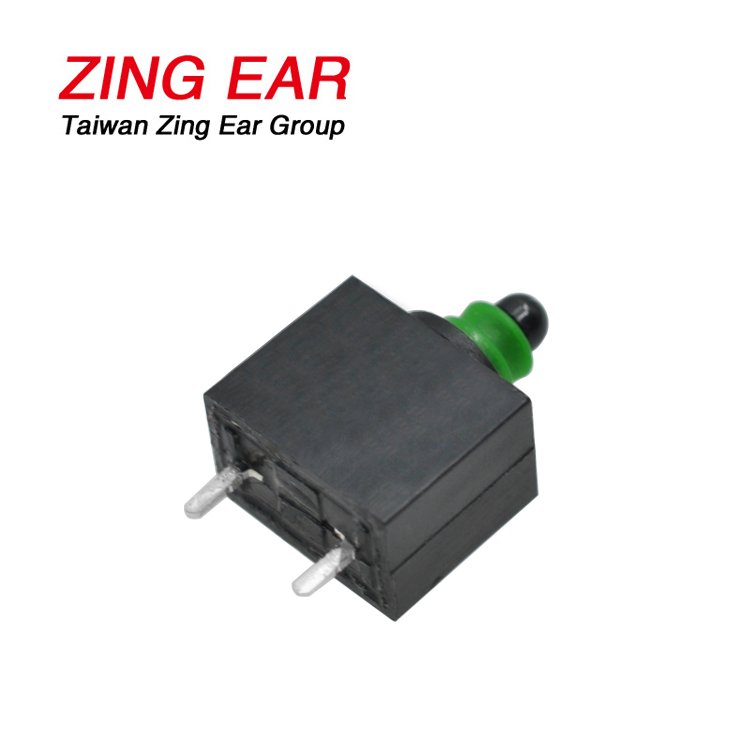

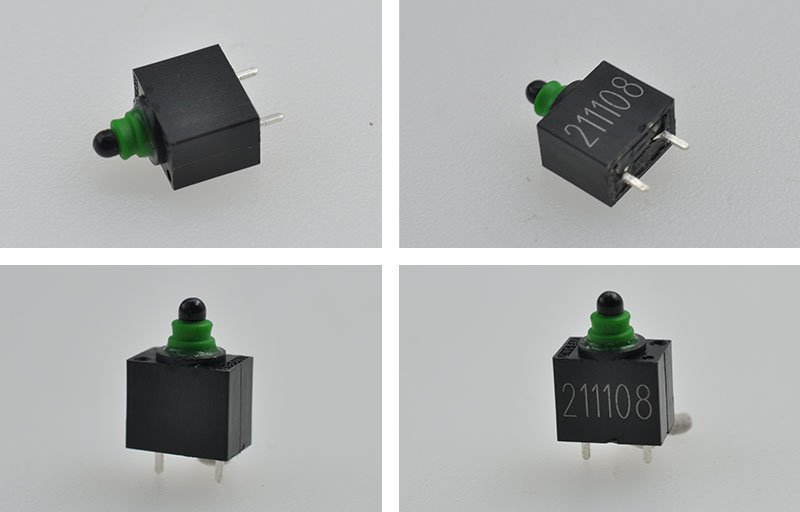

Silent Micro Switch Photos

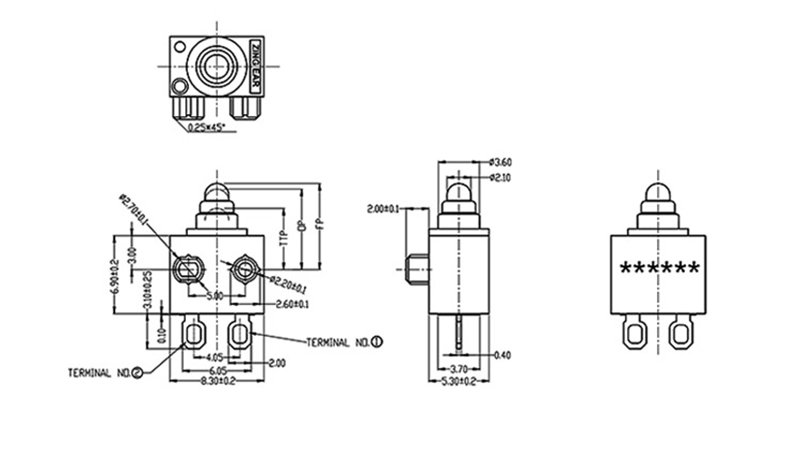

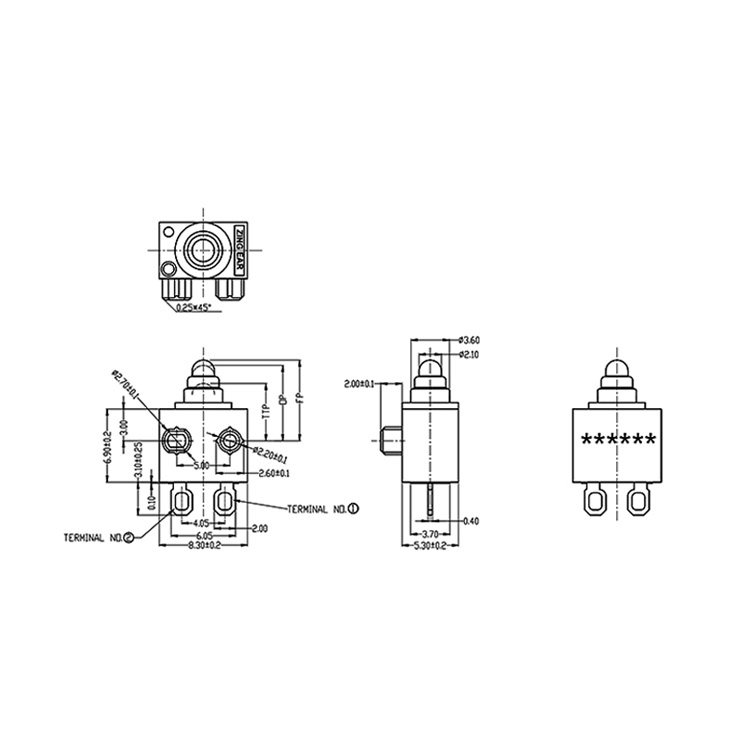

Silent Micro Switch Drawing
