Short Description: The G303-130E00C7-GA165-89 is a momentary micro switch normally open for wireless smart door lock, the rating is 0.1A 125/250VAC; 3A/12VDC; 0.1A/48VDC. The free samples are available.
| Item Number | G303-130E00C7-GA165-89 |
|---|---|
| Rating | 0.1A 125/250VAC; 3A/12VDC; 0.1A/48VDC |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 100k cycles |
| Mechanical Life | 500k cycles |
| Protection Level | IP67 |
| Insulation Resistance | 100mΩ Min |
| Dielectric Strength | 500VAC(50-60Hz) |
| Operation Force | 130g f |
| Current Code | SPST-NO |
| Lever Type | Without Lever |
The G5W11-WP200A02-W2 Snap Action Switch Details
The Momentary Microswitch Features
The G303-130E00C7-GA165-89 is a momentary microswitch normally open with the rating is 0.1A 125/250VAC; 3A/12VDC; 0.1A/48VDC. Meanwhile, it not only can be used in bluetooth wireless smart home door locks but also in some EV chargers. Because this is a small size snap action switch with an IP67 waterproof function. The free samples are available. If this model is not what you looking for, the customer also can tell us their requirement, we can do the customized service for you. Besides, it also has the certification of UL, cUL, ENEC, CQC to ensure it can be used in different countries

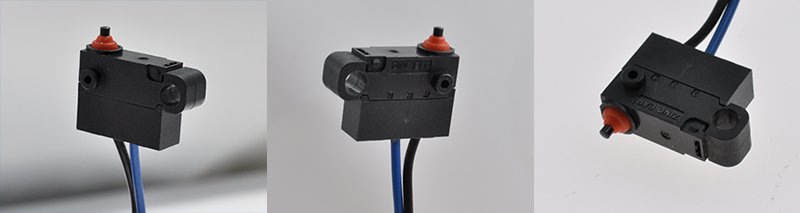

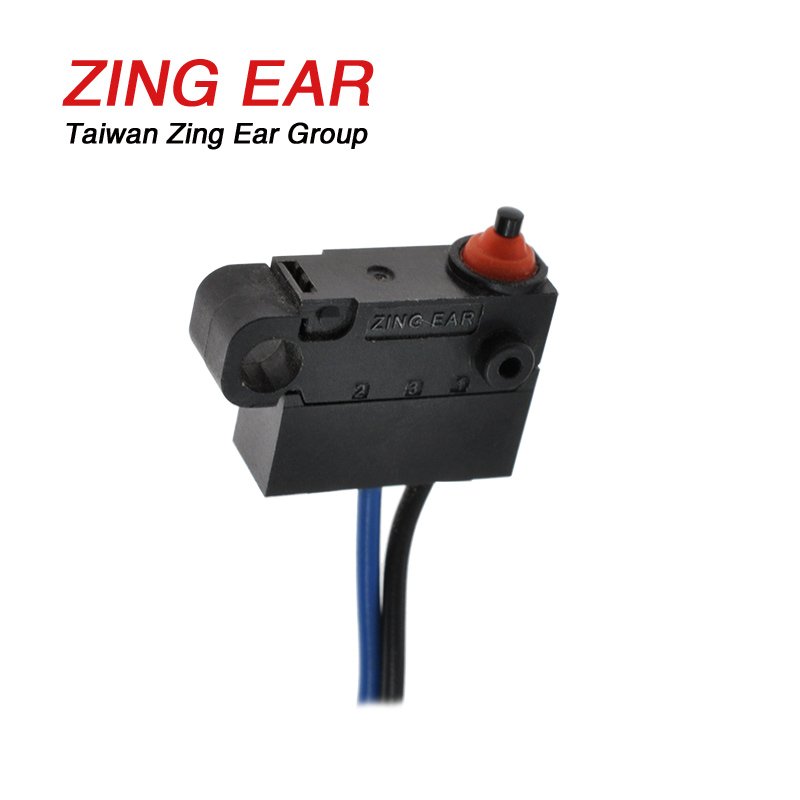

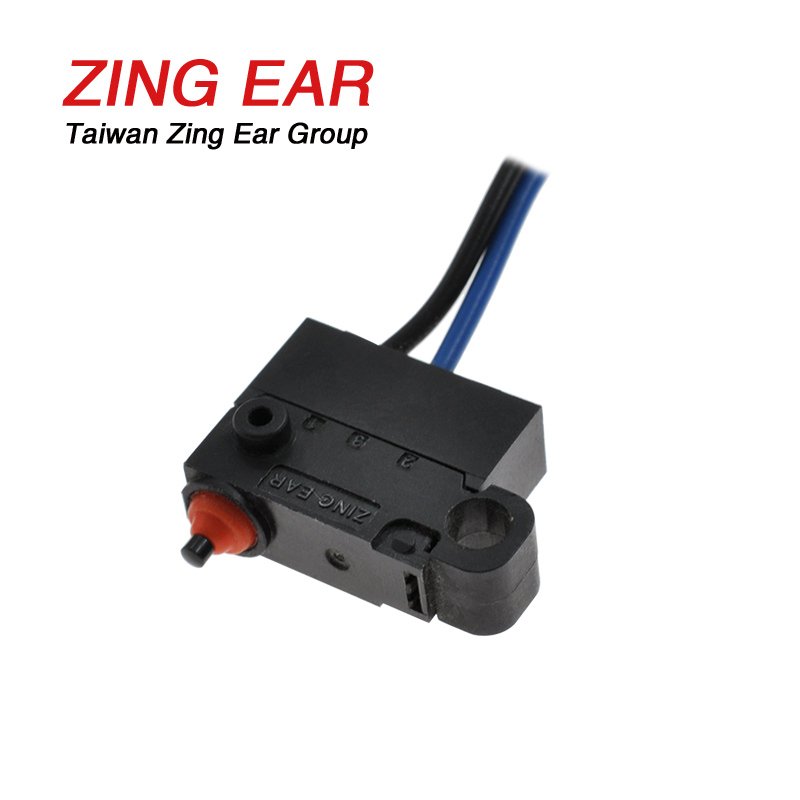

Normally Open Micro Switch Photos

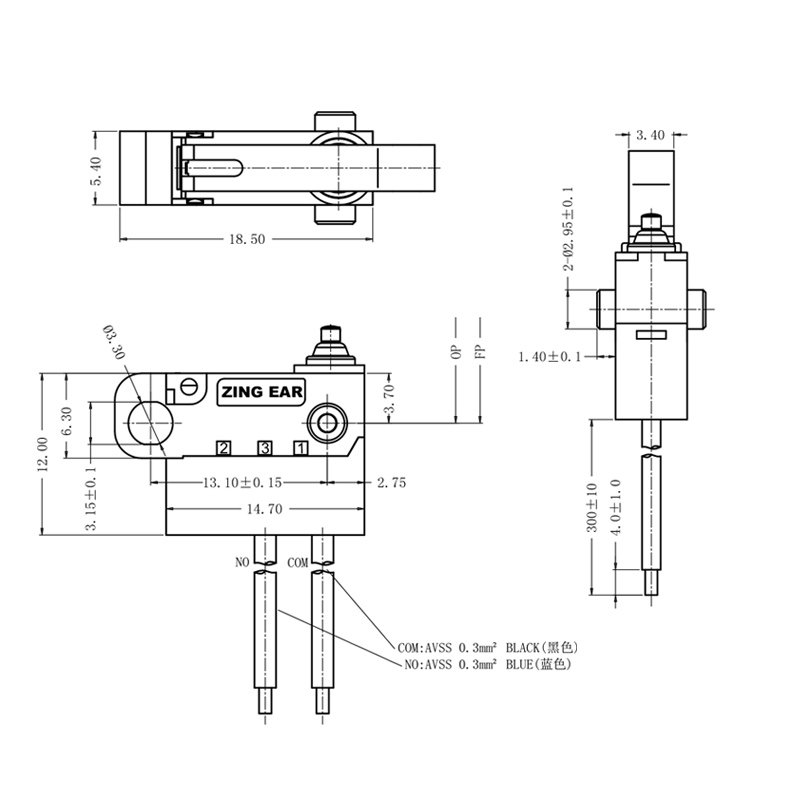

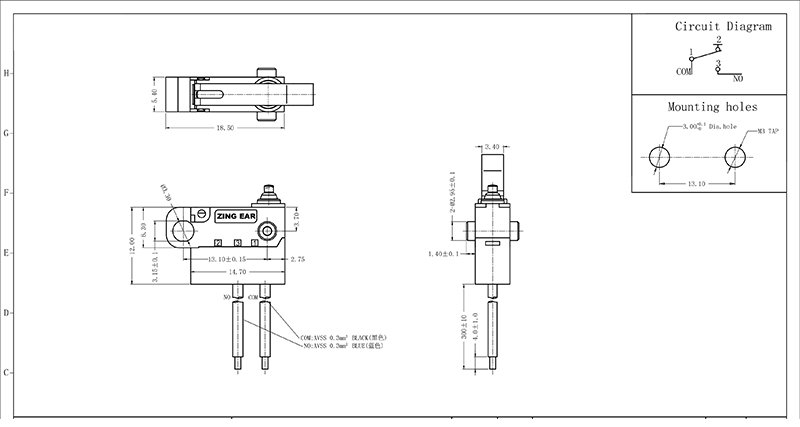

The Momentary Micro Switch Drawing

Our Advantage
