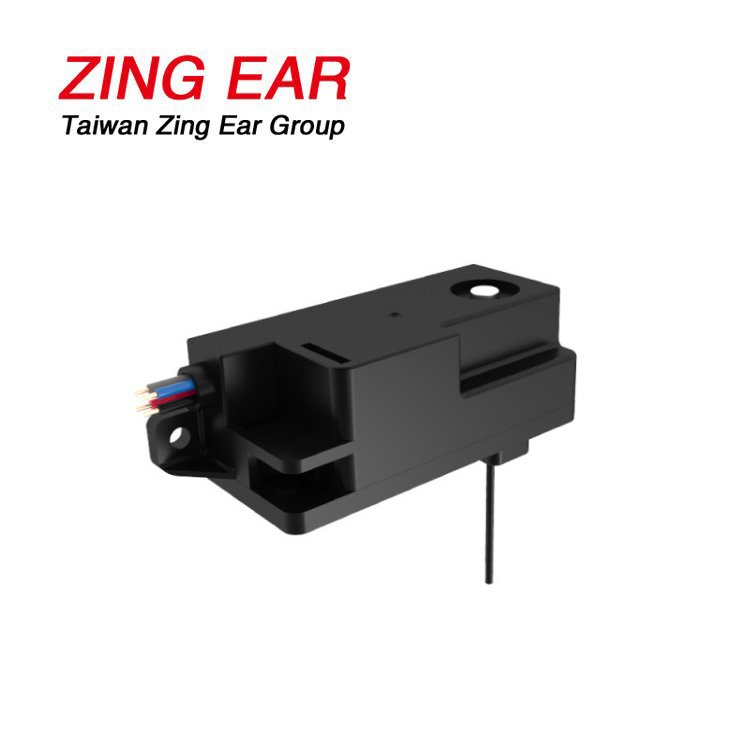

Motor electronic lock Smart door lock switch G23L

High Sealing Switch Module


Working voltage: 12VDC±10%

Working current: ≤320mA

Action response time: ≤160ms (DC12V)

Maximum power-on time: 0.25s

Motor resistance: 54±5Ω

Operating force: 12VDC 700g.cm Min. No mechanical damage

Stroke angle: 45+°2°

Lifespan: 60,000 times

Protection level: IP68


Switches Features

A Motor Electronic Lock is an electromechanical locking device that uses a small motor to engage or disengage the locking mechanism. These locks are commonly used in smart lockers, vending machines, parcel cabinets, safes, access control systems, and electronic doors.


Basic Working Principle

The motor inside the lock receives an electrical signal (e.g., from a microcontroller, keypad, fingerprint reader, or remote system). When activated:

  • The DC motor rotates, driving a gear train.

  • The gear movement pushes or pulls a latch bolt or cam mechanism.

  • Once the action completes, the motor may return to its original position, or the lock may remain in its new state until another signal is received.


Main Components

ComponentFunction
DC MotorPowers the lock/unlock movement
GearboxConverts motor speed into high-torque motion
Lock MechanismMoves latch or hook to lock/unlock
Limit SwitchesDetects open/close state and stops motor
HousingProtects internal mechanism, often metal or ABS

✅ Key Features

  • Low Power Consumption: Typically powered by 6V–12V DC

  • Fail-Safe or Fail-Secure: Remains locked or unlocked when power is lost

  • High Durability: Rated for tens of thousands of cycles

  • Compact Size: Can be embedded into thin panels or doors

  • Controllable: Can integrate with RFID, Bluetooth, keypad, or IoT systems

  • Lock Status Detection: Optional signal output for lock state monitoring


Applications

  • Parcel delivery lockers

  • Smart lockers in gyms, schools, and offices

  • Hotel safe boxes

  • Smart cabinets and toolboxes

  • Industrial vending machines

  • Access control systems


Typical Specifications

ParameterRange / Example
Operating Voltage6V DC / 9V DC / 12V DC
Current Consumption0.5A – 1A (brief pulse)
Holding Force1000N or more (depending on type)
Unlocking Time~1–2 seconds
Mechanical Life≥100,000 cycles
Operating Temperature-20°C to +60°C
Optional Feedback SignalOpen/Close signal output

Types of Motor Electronic Locks

TypeDescription
Solenoid Motor LockUses solenoid and motor combo for fast release
Rotary Motor LockUses rotating latch; suitable for doors
Sliding Bolt Motor LockGear drives bolt horizontally; common in lockers
Hook LockOften used in glass door locks or lockers
