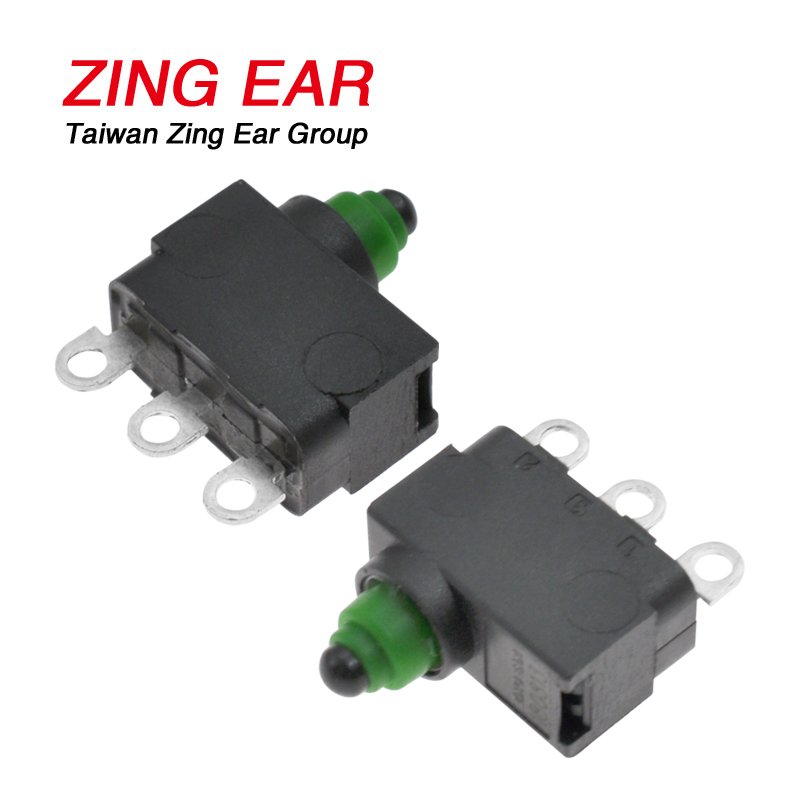

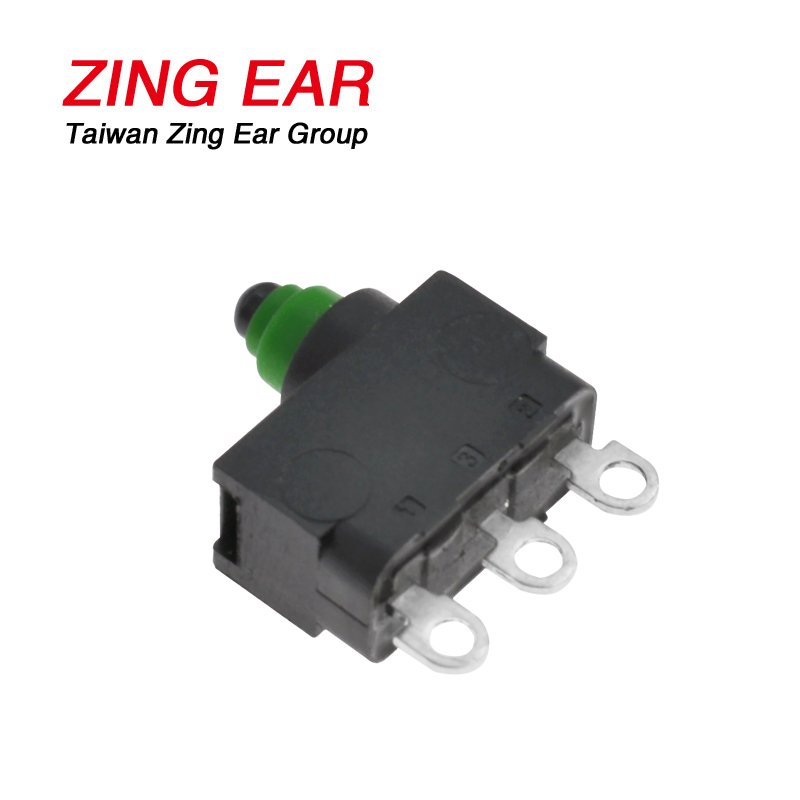

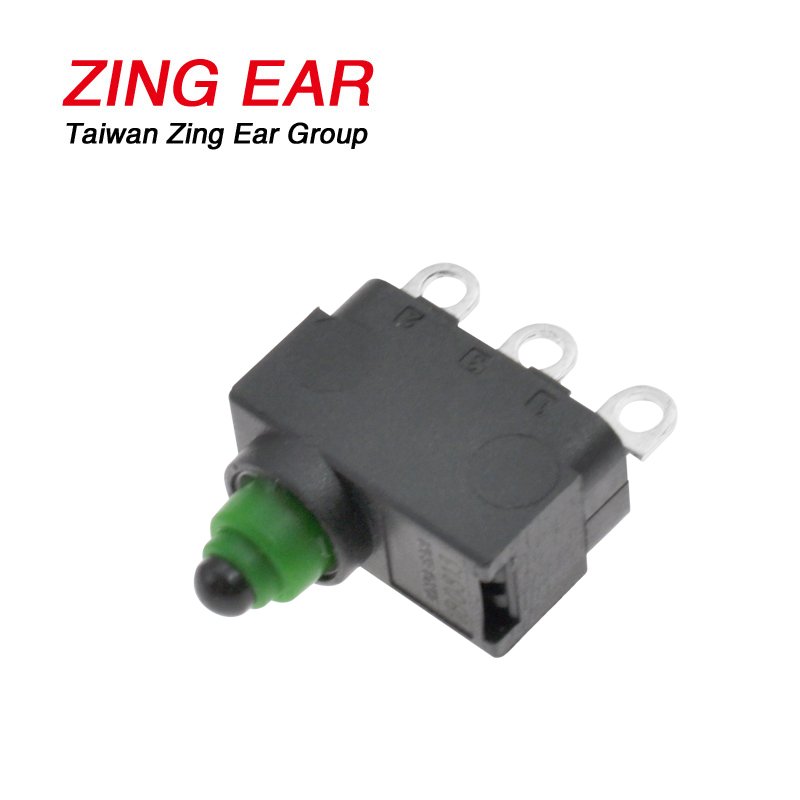

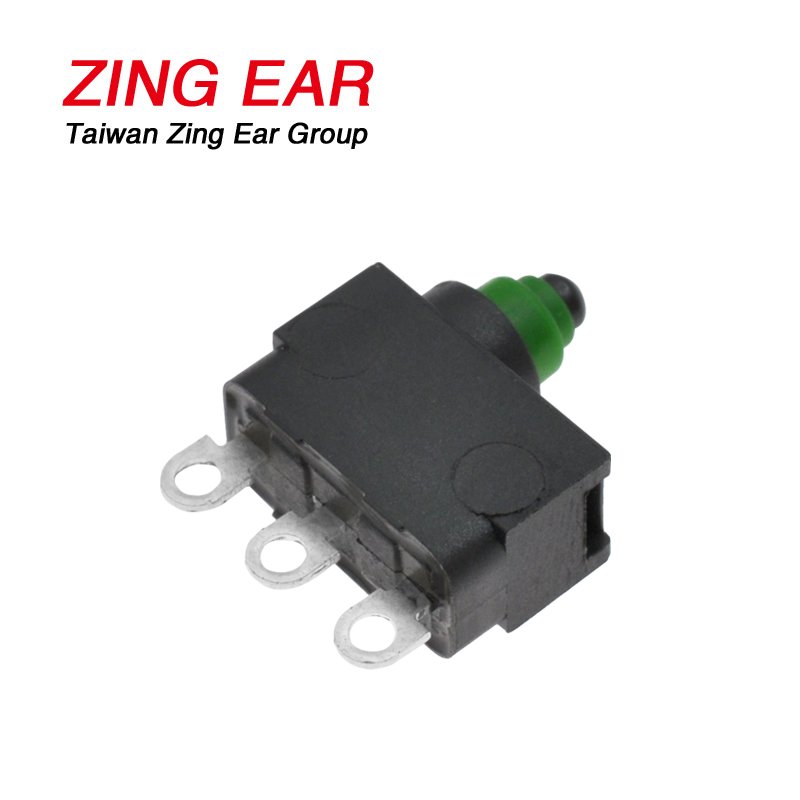

Small Micro Switch IP67 Waterproof G303A-180I00A21A




Short Description: The Zing Ear waterproof small micro switch is certificated in 0.1A 48VDC, 3A 12VDC rating which can replace for Marquardt & Alps.
| Item Number | G303A-180I00A21A |
|---|---|
| Rating | 0.1A 125/250VAC 48VDC 3A 12VDC |
| Protection Level | IEC IP67 except for terminal |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 100,000cycles(30times/min.) |
| Lever Type | Without Lever |
| Terminal Type | PCB Terminal |
| Voltage Resistance | AC500V, 50/60Hz, 1min |
| Operation Force | 180g f |
| Current Code | SPDT |
G303A Micro Switch Details

G303A Mini Microswitch Details
The Zing Ear G303A-180I00A21A is a mini-size waterproof microswitch that is certificated in 0.1A 48VDC, 3A 12VDC rating by UL, cUL, ENEC14, and CQC. The production process follows RoHS, REACH standard. Meanwhile, the mechanical life is 500, 000cycles at least, which is a long-life level. So, the G303A is perfect to replace for Marquardt 1055 series & Alps SPVQ series.

Zing Ear G303A Item Parameter Introduction

Our Advantage
Why choose us?
- Firstly, we are the factory of Zing Ear switch for many years, so we can provide you the high standard quality micro switch products;
- Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
- Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
- What’s more, if you need other electron components, we can help you to buy them and ship with our switch.
