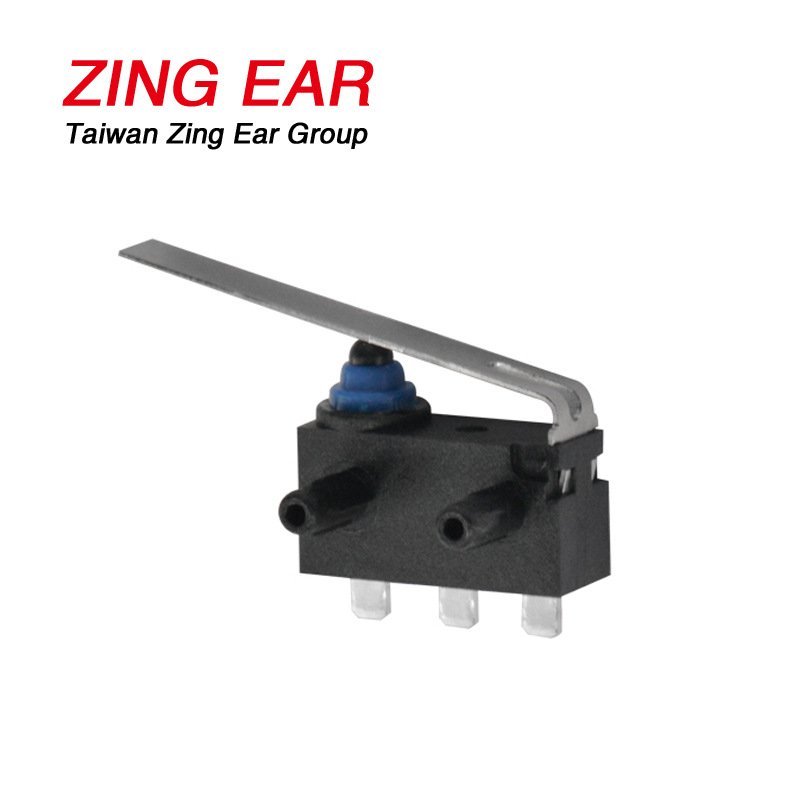

Long Lever IP67 Subminiature Microswitch
| Item Number | G303-130W28A53 |
|---|---|
| Rating | 0.1A 125/250VAC 48VDC 3A VDC |
| Protection Level | IEC IP67 |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 100,000cycles |
| Mechanical Life | 500,000cycles |
| Terminal Type | None-hole Long Solder Terminal |
| Voltage Resistance | AC500V, 50/60Hz, 1min |
G303 Subminiature Micro Switch Details
Microswitch Fetures
G303-130W28A53 is a small compact size micro switch with IP67 waterproof function. And which is widely used in automotive electronic, appliance and industrial control design. Meanwhile, this item is a none-hole long solder terminal and 53# long lever. In order to meet the different requirement from customer, we also have many different kinds of parameters for your options. On the other hand, the ENEC, CQC ,UL and CUL certificates are available for it. I mean if you need the certificates, you can contact us to get them. The circuit of G303-130W28A53 is single pole and double throw. What’s is more, the water proof feature means the switch can use in a high humidity level. All in all, zing ear switch is high-quality and reliable. Welcome to contact us and tell us your requirement, we will reply you in 8 hours. Thank you very much.

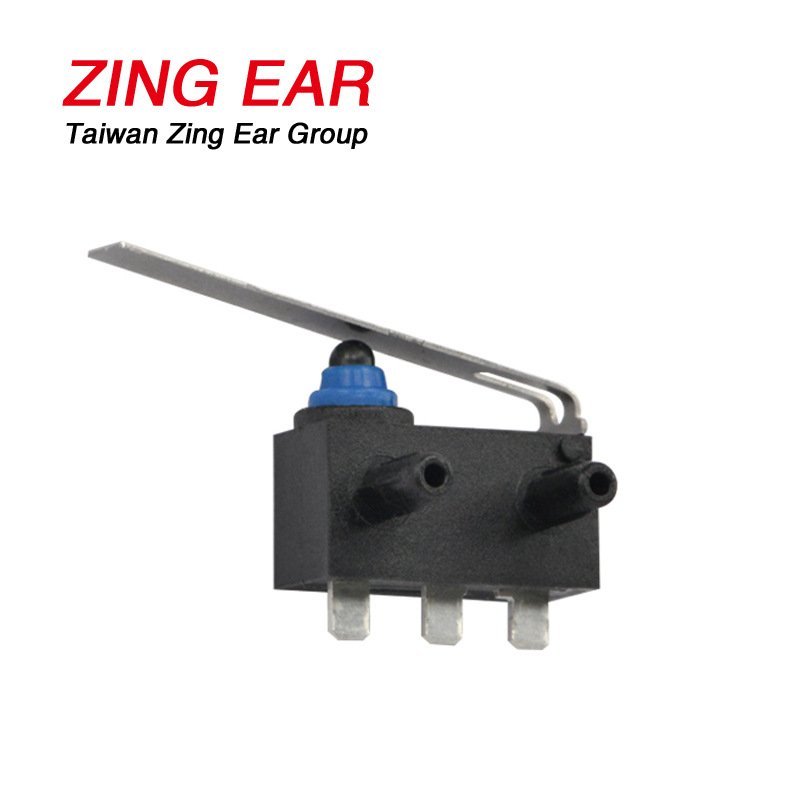

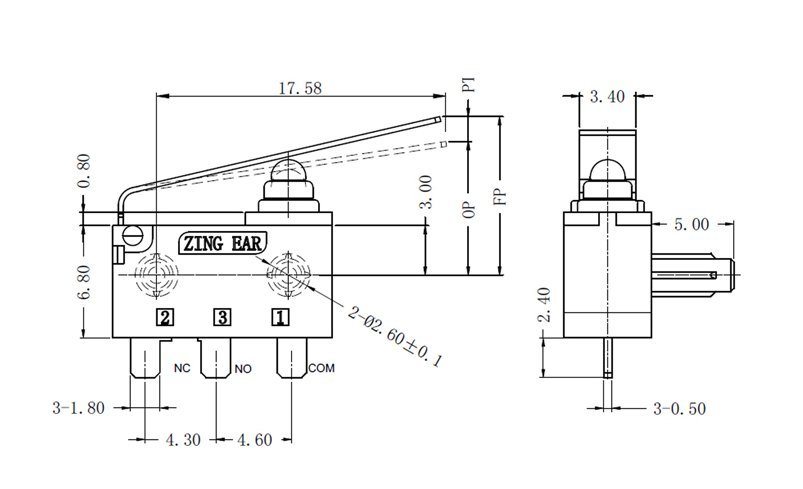

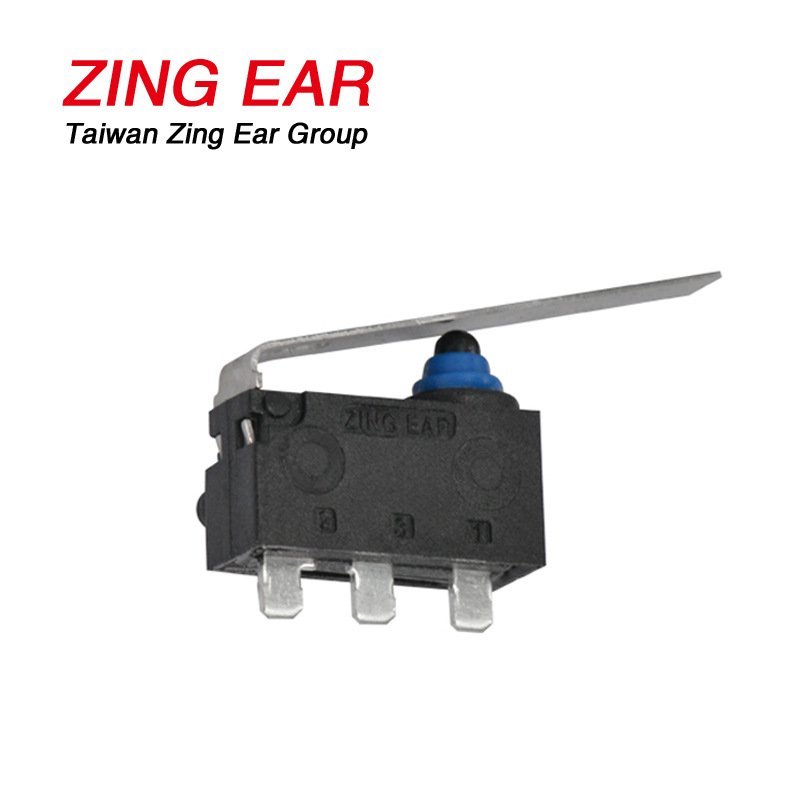

Drawing and Photoes

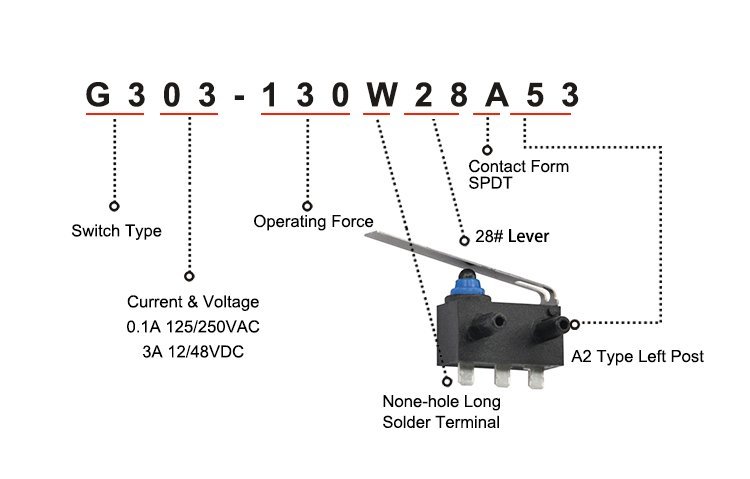

How to choose an item you want?
As an illustration, you can see the picture from the left side. It not only show the parameters of this series microswitch, but you can choose your item easily as well.

Our Advantage
Why choose us?
- Firstly, we are the factory of Zing Ear switch for many years, so we can provide you the high standard quality micro switch products;
- Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
- Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
- What’s more, if you need other electron components, we can help you to buy them and ship with our switch.
