Short Description: This is a subminiature snap action switch with IEC IP67 waterproof protection level, which is certificated by UL, ENEC, and CQC. Welcome to the test sample.
| Item Number | G303-130S00A28 |
|---|---|
| Rating | 0.1A 125/250VAC/48VDC; 3A 12VDC |
| Protection Level | IEC IP67 |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 100,000cycles |
| Mechanical Life | 500, 000 cycles |
| Terminal Type | Solder Terminal |
| Voltage Resistance | AC1000V, 50/60Hz, 1min |
| Operation Force | 130g f |
| Current Code | SPDT |
| Lever Type | Without Lever |
| Dimension | 14.7mm*5.4mm |
G303-130S00A28 Micro Switch Details
Subminiature Snap Switch Features
The G303-130S00A28 is a subminiature snap action switch with IEC IP67 waterproof protection level, and the rating of this switch is 0.1A 48VDC 125/250VAC and 3A 12VDC, µ40T85 1E5. So we can use this item for every under 3A electrical device, such as the automotive door locking system, portable handheld tools, and so on. Meanwhile, the actuator with a rubber ring can resist dust and waterproof. Besides, the switch also has the certificates of UL, ENEC, and CQC. Welcome to the test sample before place an order. For more details, please feel free to contact us.

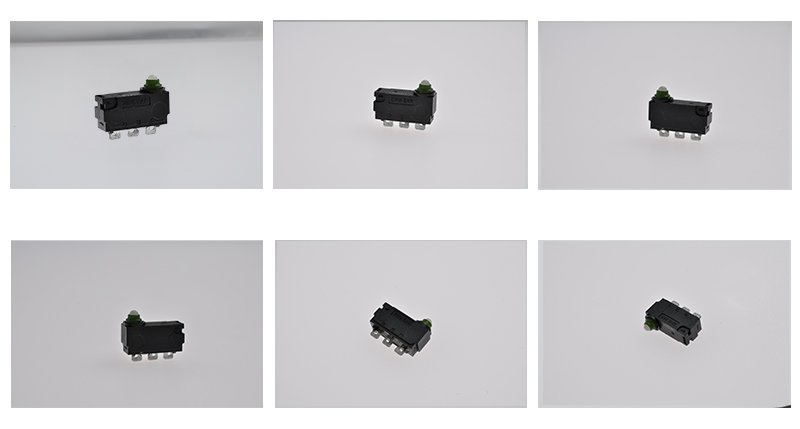

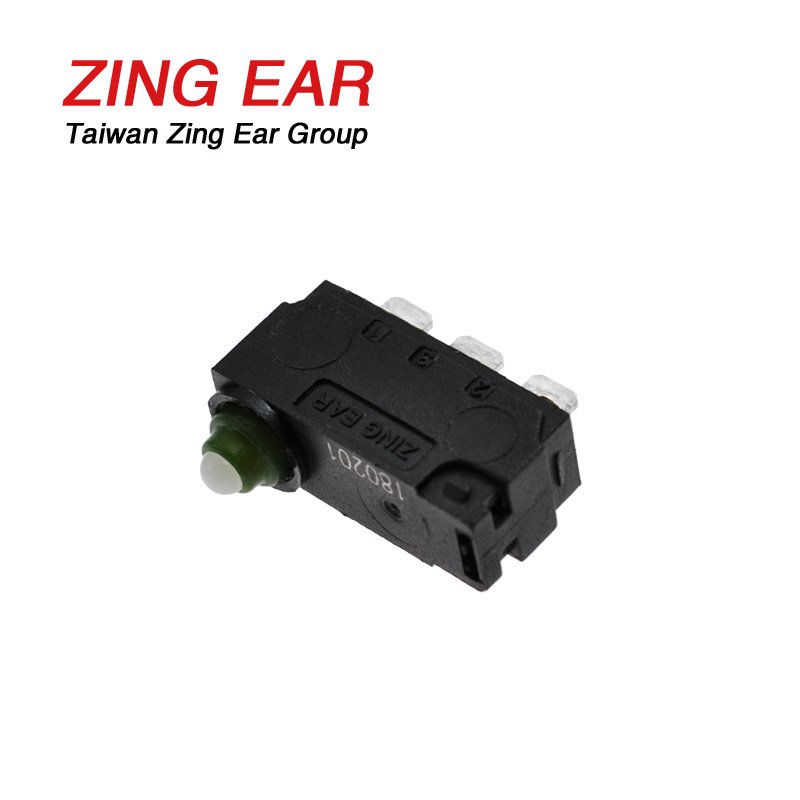

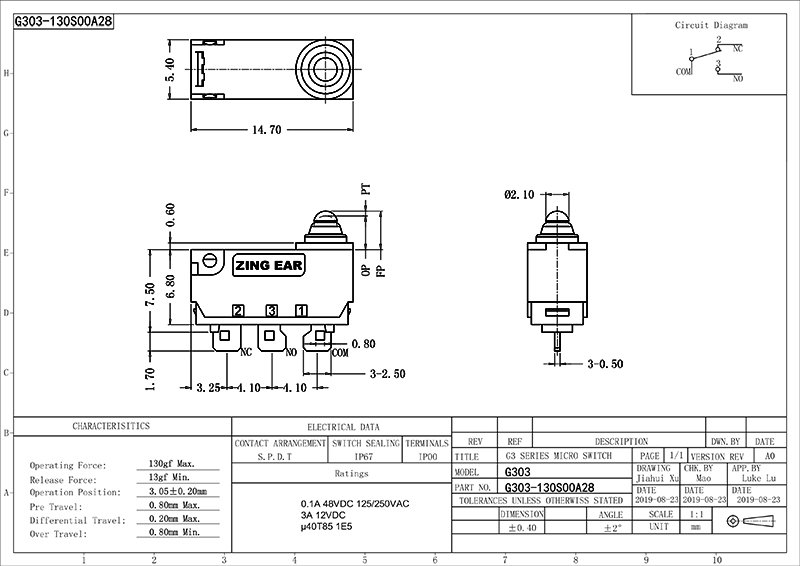

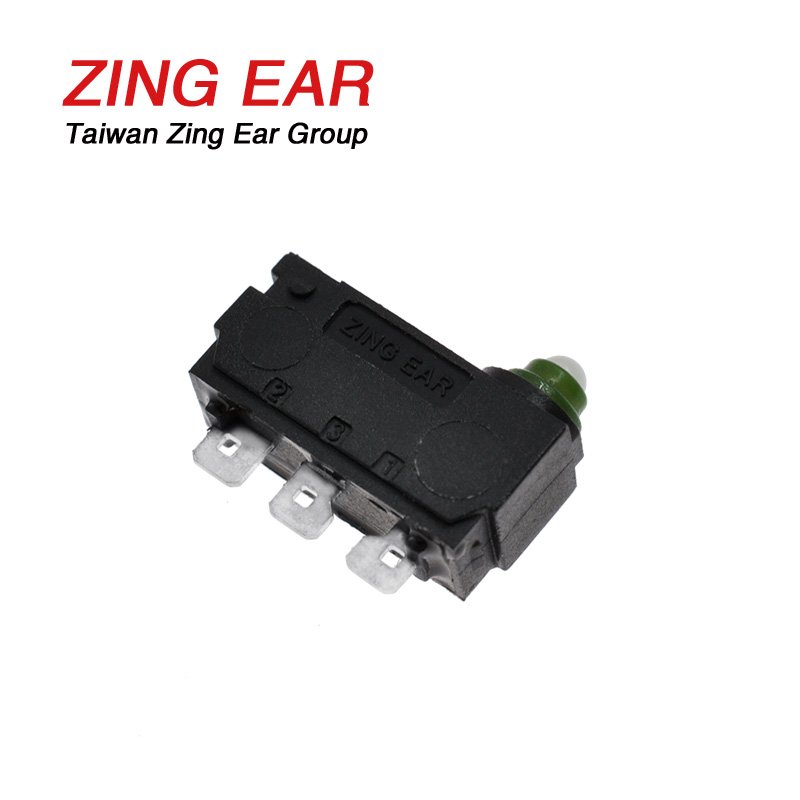

G303-130S00A28 Mini IP67 Microswitch Drawing and Photos
