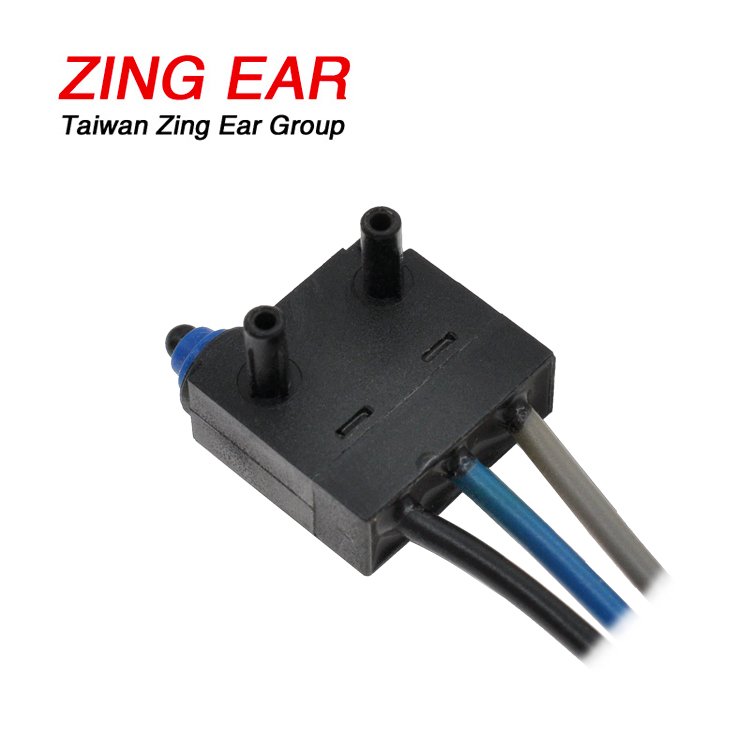

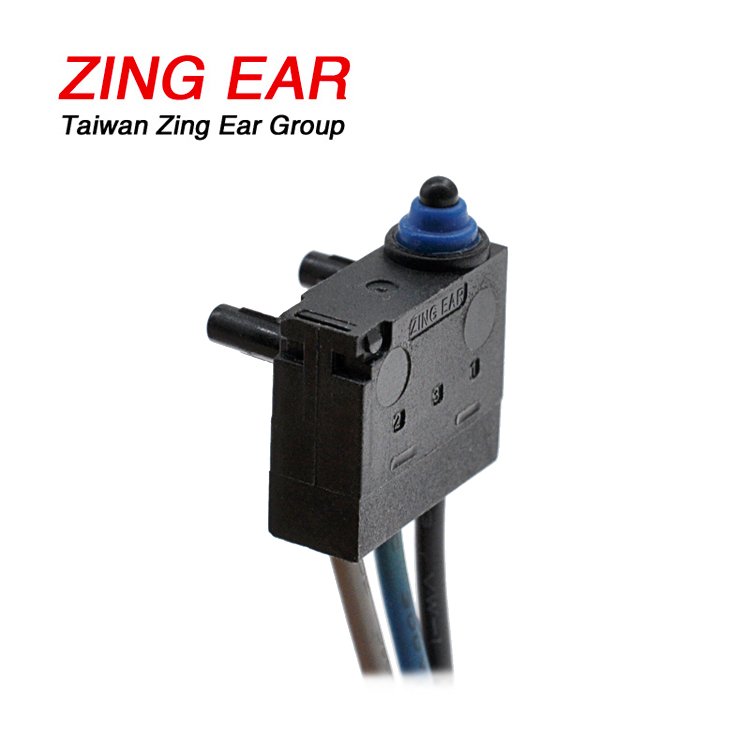

The G303-130E is a micro switch approved by UL, ENEC, and CQC in T85 5E4 0.1A 48VDC and 3A 12VDC rating, which is assembly with wire, IP67 waterproof protection.
| Item Number | G303-130E00A49-FA |
|---|---|
| Rating | 0.1A 48VDC; 3A 12VDC |
| Protection Level | IEC IP67 |
| Temperature | -40~85℃ (40T85) |
| Electrical Life | 100,000cycles |
| Dimension | 13.3mm*12mm |
| Terminal Type | Lead Wire |
| Voltage Resistance | AC1000V, 50/60Hz, 1min |
| Operation Force | 130g f |
| Current Code | SPDT |
| Lever Type | Without Lever |
G303-130E00A49-FA MicroSwitch Details
Microswitch Fetures
The G303-130E is a Micro Switch T85 5E4 approved by UL, ENEC, and CQC in 0.1A 48VDC and 3A 12VDC rating, which is assembly with wire and IP67 waterproof protection. So, this is a switch that can work in a wet environment or machine that has the requirement of waterproof function. Meanwhile, in order to install easily, this model has the post to help to fit in the position. Besides, if you other parameters of this switch, you also can contact us and we will recommend the most suitable item for you.

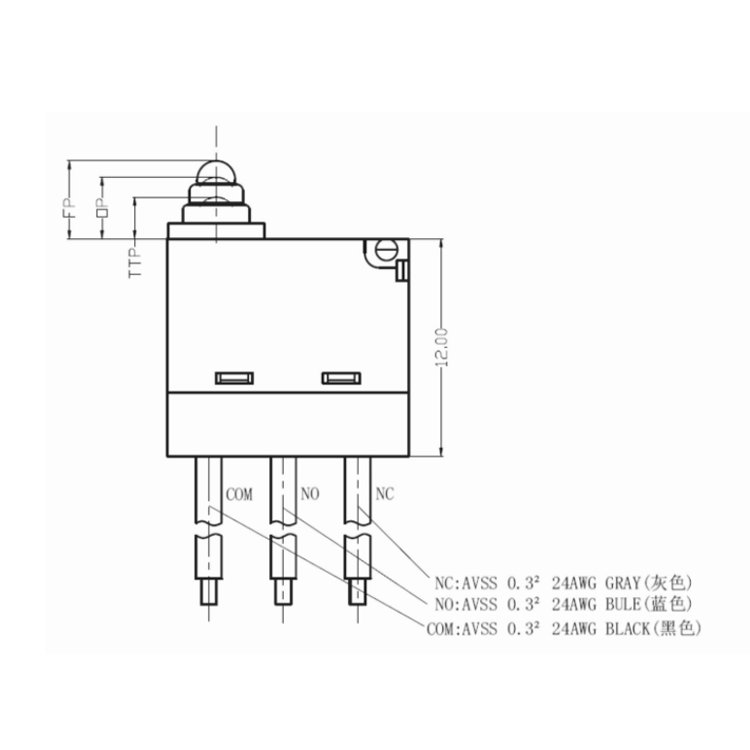

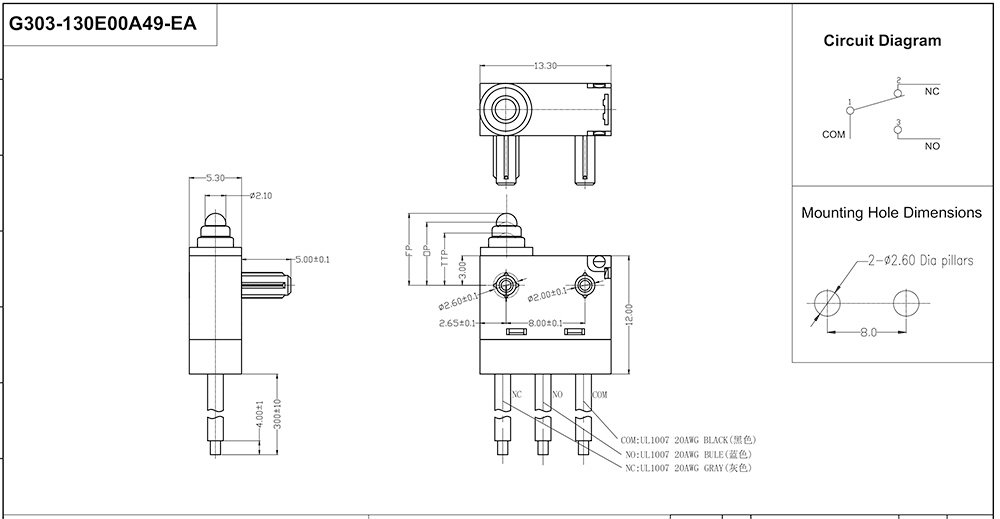

Drawing

How to choose an item you want?
As an illustration, you can see the picture from the left side. It not only show the parameters of this series microswitch, but you can choose your item easily as well.

Our Advantage
Why choose us?
- Firstly, we are the factory of Zing Ear switch for many years, so we can provide you the high standard quality micro switch products;
- Secondly, we have approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
- Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
- What’s more, if you need other electron components, we can help you to buy them and ship with our switch.
