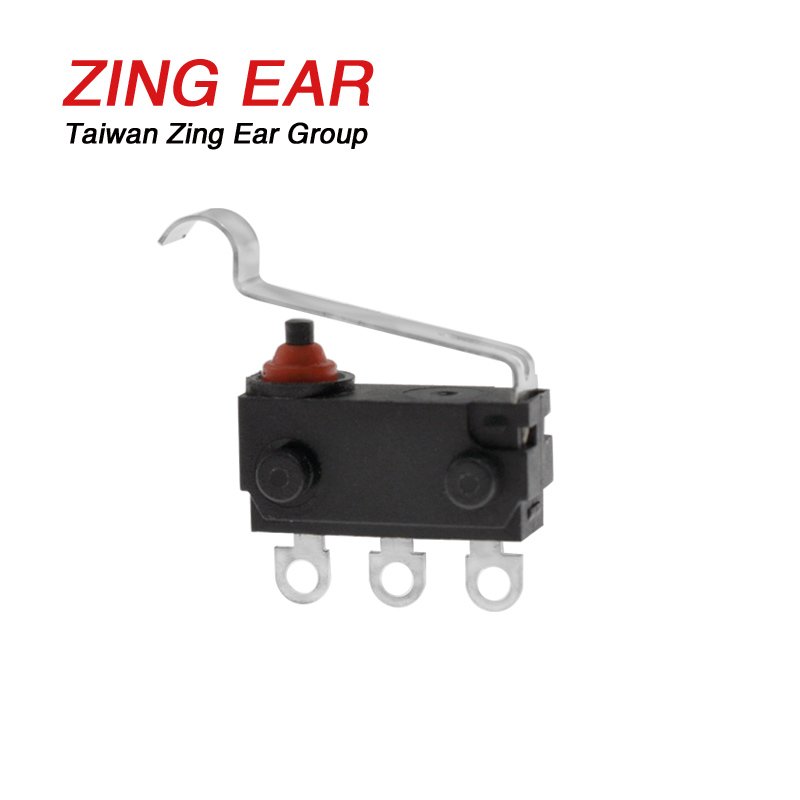

The G303-130I05A8B snap micro switch with ultra-miniature size and simulated roller lever in the rating of 0.1A 125/250 VAC, 3A 12VDC certificated by UL cUL, ENEC, CQC, etc.
| Item Number | G303-130I05A8B |
|---|---|
| Rating | 0.1A 125/250VAC, 3A 12VDC, 0.1A 48VDC |
| Protection Level | IEC IP67 |
| Temperature | -45~85℃ (25T85) |
| Electrical Life | 100,000cycles(30times/min.) |

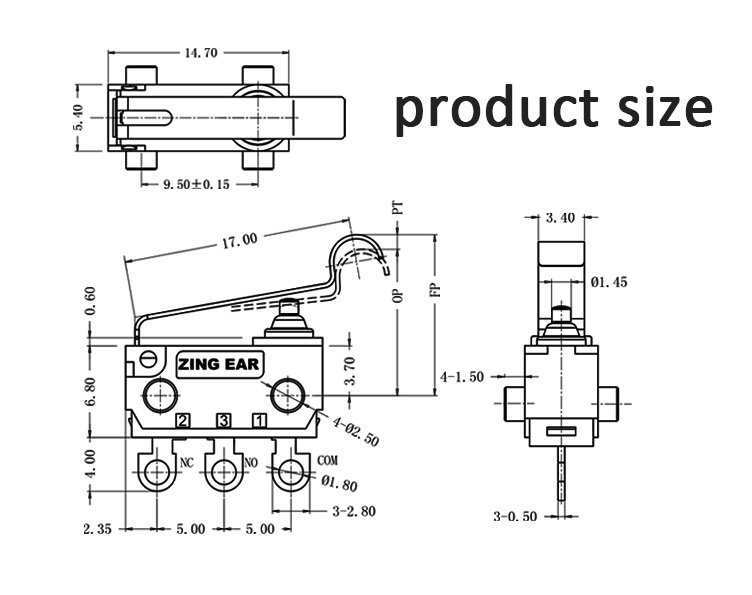

| Dimension | 14.7*5.4*7.5mm |
| Terminal Type | Big Solder Terminal |
| Voltage Resistance | AC1000V, 50/60Hz, 1min |
| Operation Force | 130g f |
| Current Code | SPDT |
| Lever Type | Simulated Roller Lever |

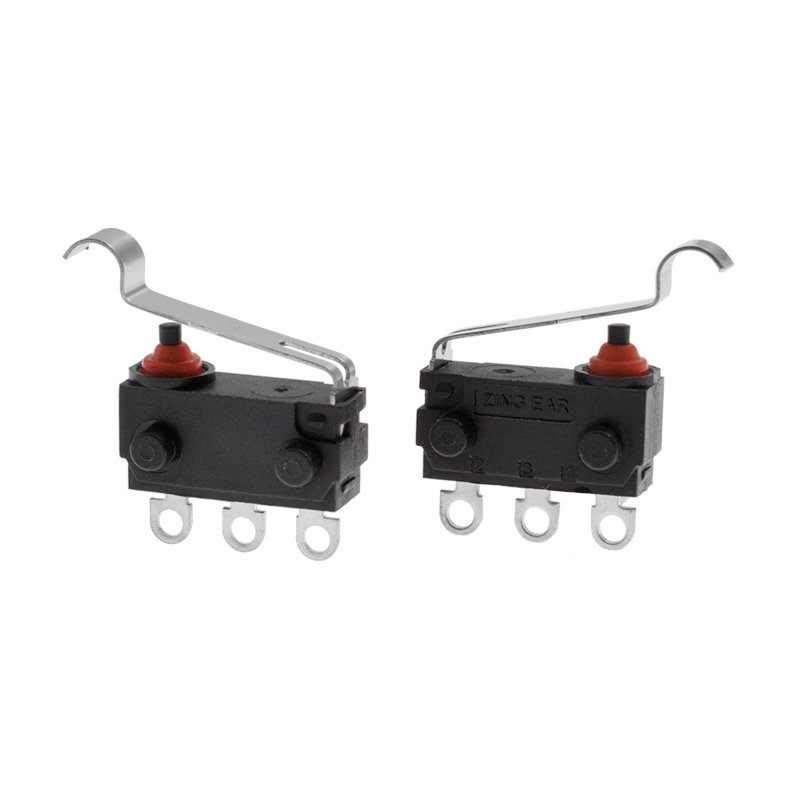

The Micro Snap Action Switch Details
Microswitch Waterproof Induction
The G303-130I05A8B micro action switch with ultra-miniature size and simulated roller lever. Meanwhile, it is in the rating of 0.1A 125/250 VAC, 3A 12VDC, and certificated by UL cUL, ENEC, CQC, etc. So, if you need our certification, welcome to contact us to get them. Besides, in China, Zing Ear is an experienced brand since 1983, and our sub factories have many years of experience in switch production and R&D as well. What’s more, the switch is an IP67 protection level waterproof microswitch. Generally, it can be used in some kinds of electric tools, automotive parts, and so on. If you need samples to test or another requirement of the switch, we will provide them to you. We have thousands of switches for your options
The Snap Action Micro Switch Datesheet

How to choose a G303 series switch with different parameters?
Huizhou Granye Industrial Co., Ltd
As an illustration, you can see the picture from the left side. It not only show the parameters of this series microswitch, but you can choose your item easily as well. For example, if you need a switch in 0.1A 125VAC/250VAC 48VDC( or 3A 12VDC), Lead Wire, without lever SPST normally open 130gf operating force and MAX 85℃. You can choose our G303-130E00C15-GF. However, if you are not sure, you also can contact and tell us your requirement, we will recommend an item for you.
