DPDT Micro Switch Waterproof 12VDC 40T85 PCB Terminal

Short Description:  The G307 series is a DPDT micro switch with a waterproof function and PCB terminal. The rating is 12VDC 40T85 with 300000 electrical cycles.

Item Number G307-150PA00
Rating 0.1A 12VDC, 50uA 5V DC
Protection Level IEC IP67
Temperature -40~85℃ (40T85)
Electrical Life 300,000cycles(20times/min.)
Dimension 15.4mm*8.4mm
Terminal Type Straight (6)PCB Terminal
Insulation Resistance DC500V, ≥100MΩ
Operation Force 150g f
Current Code DPDT
Lever Type Without Lever

DPDT Micro Switch Details

G307 Double Throw Double Pole Switch Features

The G307 series is a DPDT micro switch with a waterproof function and PCB terminal. Meanwhile, the rating is 12VDC 40T85 with 300000 electrical cycles. Besides, the most different from other snap action switches, this model is the double throw double pole current code type. Which can control two of the circuit in the switch. But if you ask me what is the most special of this item, I would like to say it is the contact. For example, this G307-150PA00 is used the double slide contact to star the switching. And this is a silent microswitch. What’s if you need any certification of the switch, such as the UL, cUL, ENEC, CQC, and so on. Please feel free to contact us.

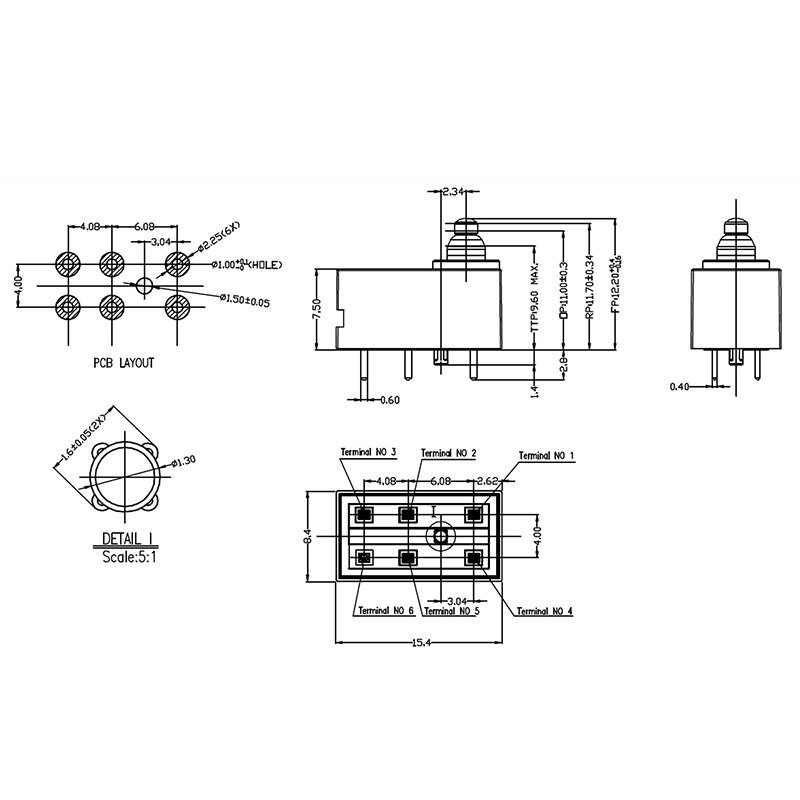

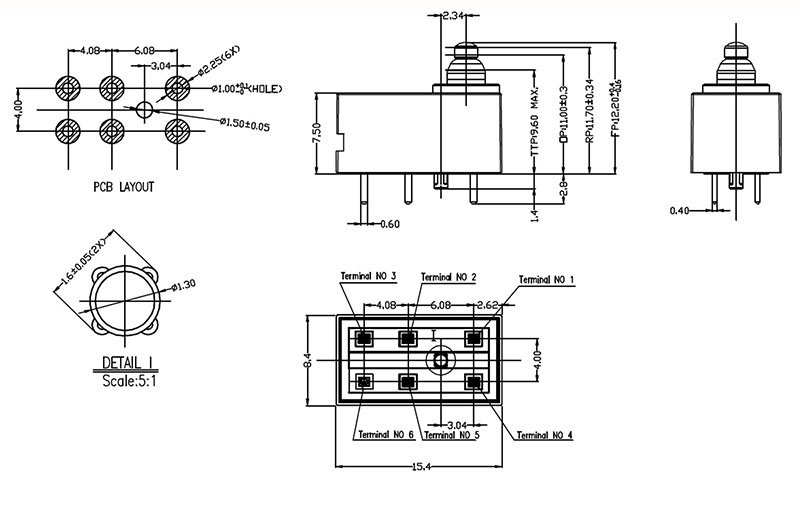

G307-150PA00 Drawing

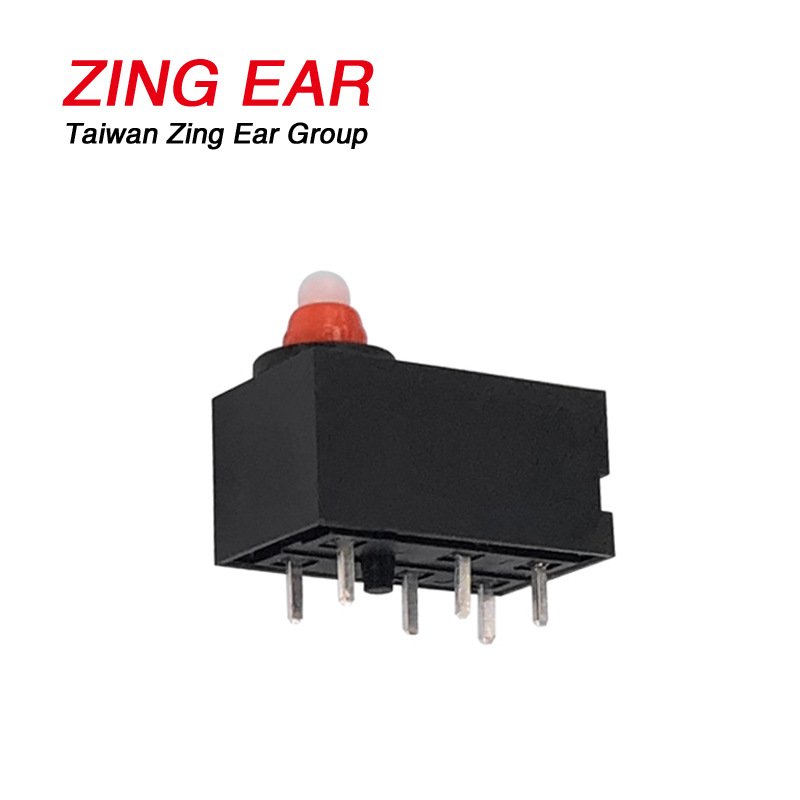

G307-150PA00 waterproof microswitch
