SPST NC IP67 Waterproof Snap Action Switch
| Item Number | G10B03-150F02B-300 |
|---|---|
| Rating | 3A 125/250VAC 30VDC |
| Certificates | ENEC CQC UL CUL |
| Temperature | -45~85℃ (45T85) |
| Electrical Life | 10,000cycles |
| Lever Type | 02# Straight Lever |
| Terminal Type | Right side lead wire |
| Dielectric Strength | AC600V, 50/60Hz, 1min |
G10B Micro Switch Details
G10B03-150F02B-300 IP67 Waterproof Switch Features
Welcome to know more about our G10B snap action switch series. Firstly, a subminiature size design for 12.8mm length so it can be installed in a small space, such as a car, air conditioner, charging pile, charging gun, sweeping robot, and so on. M eanwhile, our micro switches have a variety of levers for options, this item is without a lever but we also have other different types for your selection, like straight, roller, simulated roller, and custom lever. On the other hand, G10B is a very special waterproof type switch. Compared with another waterproof switch, the most difference is the size. For example, G10 is 12.8mm, but another switch like G5W11 is 33mm in length. What’s more, the max. temperature for this item is 85℃, the range is from -40 to 85℃. SPDT circuit code and PCB terminal, but this item has SPST and other terminals for you. To sum it up, this switch is widely applied and highly reliable, so it should be your perfect choice.

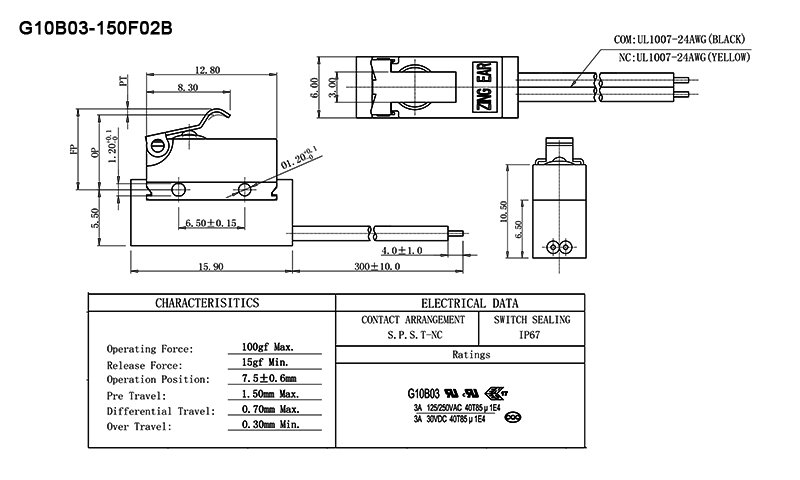

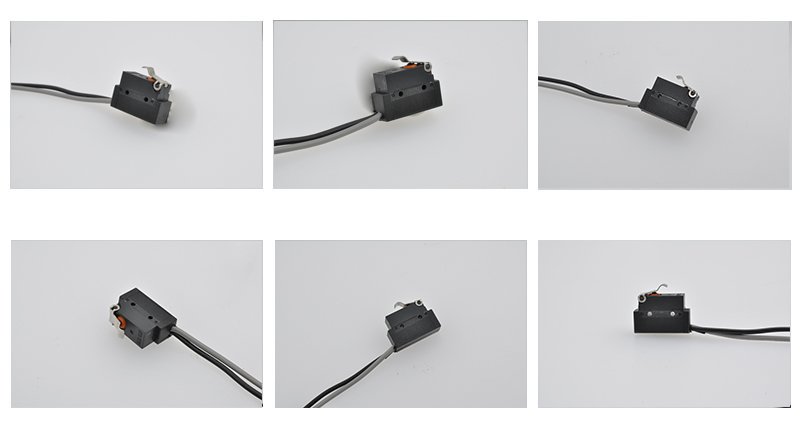

G10B03-150F02B-300 Micro Switch Mini Drawing and Photos


How to choose Micro Switch item?
As you can see, we can do the parameters as you want. So you can contact us to tell us your request. For instance, the terminal size, operating force, lever type, and etc. all of them can be custom. Therefore, we can provide all micro switch and other product you need to you satisfactorily.

Our Advantage
Why choose us?
- Firstly, we are the factory of Zing Ear switch for many years, so we can provide you the high standard quality micro switch products;
- Secondly, we have approved by ISO9001, ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally but also we provide you certificates.
- Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
- What’s more, if you need other electronic components, we can help you to buy them and ship with our switch.
