The G10B-A102-500 is an SPST NO micro leaf switch with IP67 waterproof function and this model has a 4mm installation hole, which is similar to the Omron D2FW series switch.
| Item Number | G10B-A102-500 |
|---|---|
| Rating | 1A 125/250VAC 30VDC |
| Certificates | ENEC CQC UL CUL |
| Operating Temperature | 45T85 |
| Electrical Life | 10,000cycles |
| Lever Type | Leaf Lever |
| Terminal Type | 2 Lead wires |
| Dielectric Strength | AC600V, 50/60Hz, 1min |
G10B-A102-500 Micro Leaf Switch Details
SPST NC Micro Leaf Switch Features
The G10B-A102-500 is an SPST NO micro leaf switch with IP67 waterproof function and this model has a 4mm installation hole, which is similar to the Omron D2FW series switch and installed by the M4 screw. Meanwhile, the size of this model is small and the length of this model is 15.3mm without the hole. The sealed structure makes the switch can work underwater 100cm last 30 Minutes. So, you may have questions about if this micro leaf switch can work in an outdoor or wet environment. Yes, of course.
To make sure our G10B microswitch can meet the requirement of most countries, it also has the certifications of UL, ENEC, CQC for the product. And the RoHS and REACH for the material. So, if you are interested in it, please contact us to know the details.

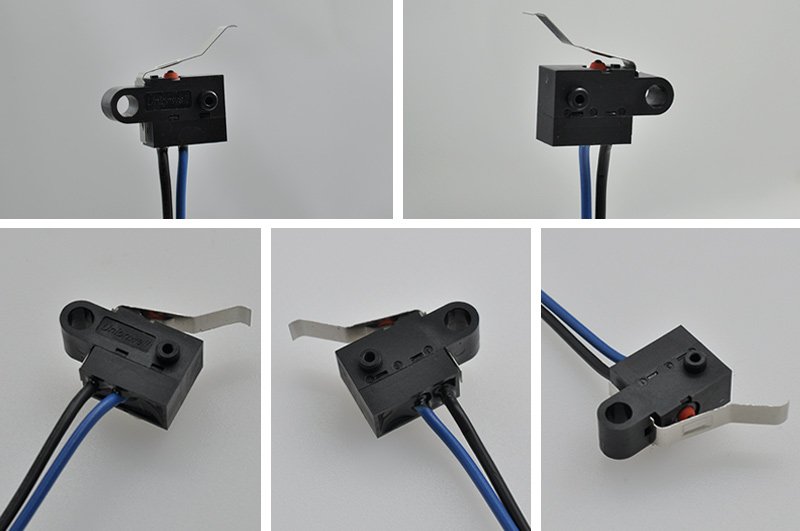

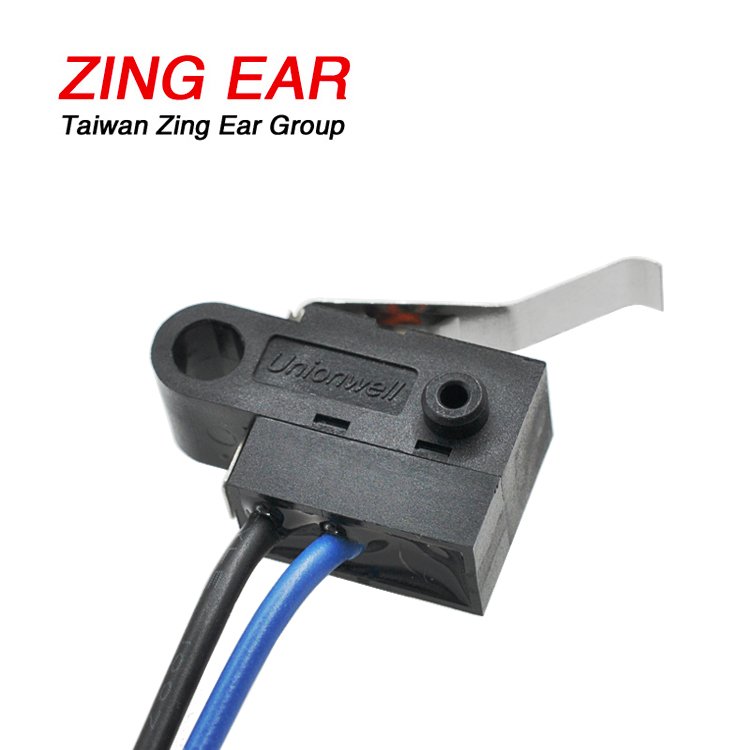

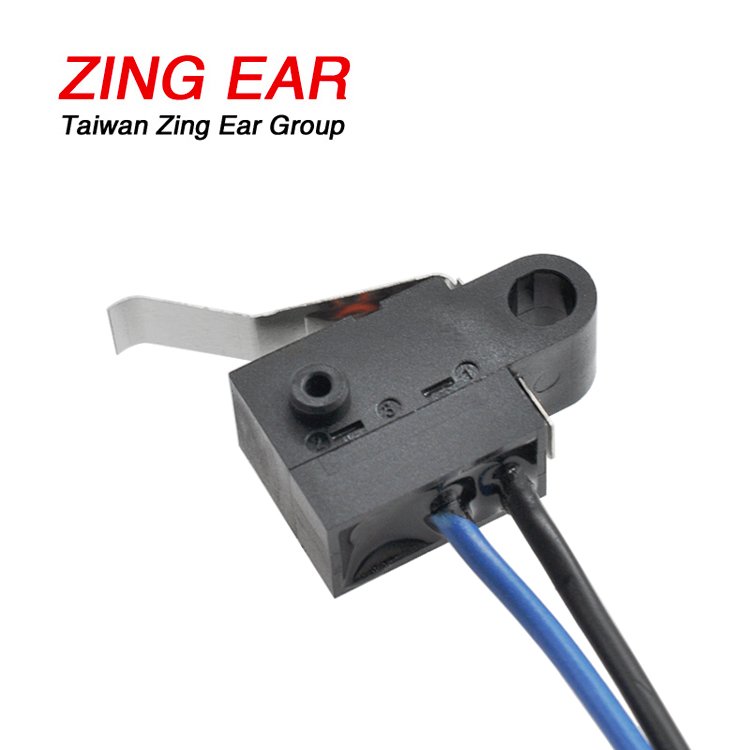

Leaf Microswitch Photos

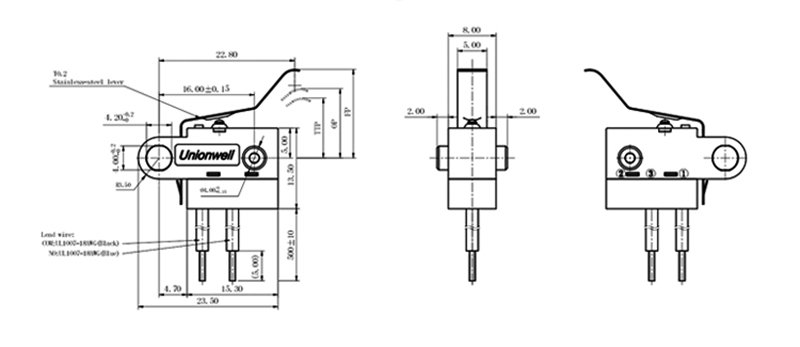

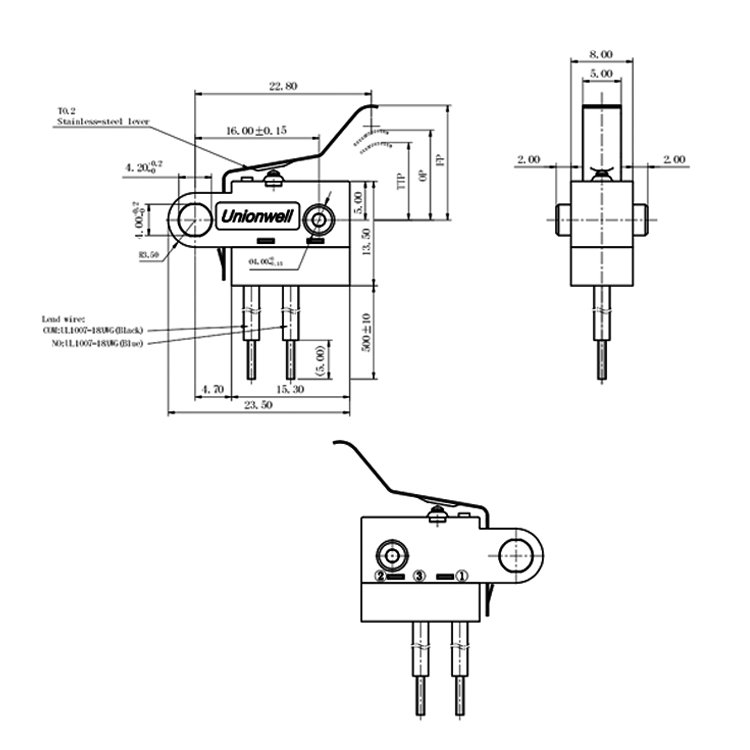

IP67 Microswitch Drawing
