This is an SPST normally open mini waterproof switch that can replace the Omron micro switch of D2FW-G271M. Meanwhile, it has the leaf metal lever when the lever is pressured, the switch will become closed and the circuit will become “ON”.
| Item Number | G10B-A103-500 |
|---|---|
| Rating | 1A 125/250VAC 30VDC |
| Certificates | ENEC CQC UL CUL |
| Temperature | -45~85℃ (45T85) |
| Electrical Life | 10,000cycles |
| Lever Type | Leaf Lever |
| Terminal Type | Lead wire |
| Dielectric Strength | AC600V, 50/60Hz, 1min |
G10B-A103-500 Micro Switch Details
Subminiature Waterproof Microwitch Features
This is an SPST normally open mini waterproof switch that can replace the Omron micro switch of D2FW-G271M. Meanwhile, it has the leaf metal lever when the lever is pressured, the switch will become closed and the circuit will become “ON”. Besides, the structure of the switch is sealed and waterproof with an IP67 protection level. So, you can use it in a wet environment or outdoor. Such as automotive parts, EV charger, electric power tools, household appliances, and so on.
Generally, this model is suitable to replace the D2FW Omron micro switch. Compared with the lead time of the Omron microswitch. Our lead time is faster, and the price is more competitive. Besides, our switch also have the certifications of UL, ENEC, CQC to make sure the product quality.

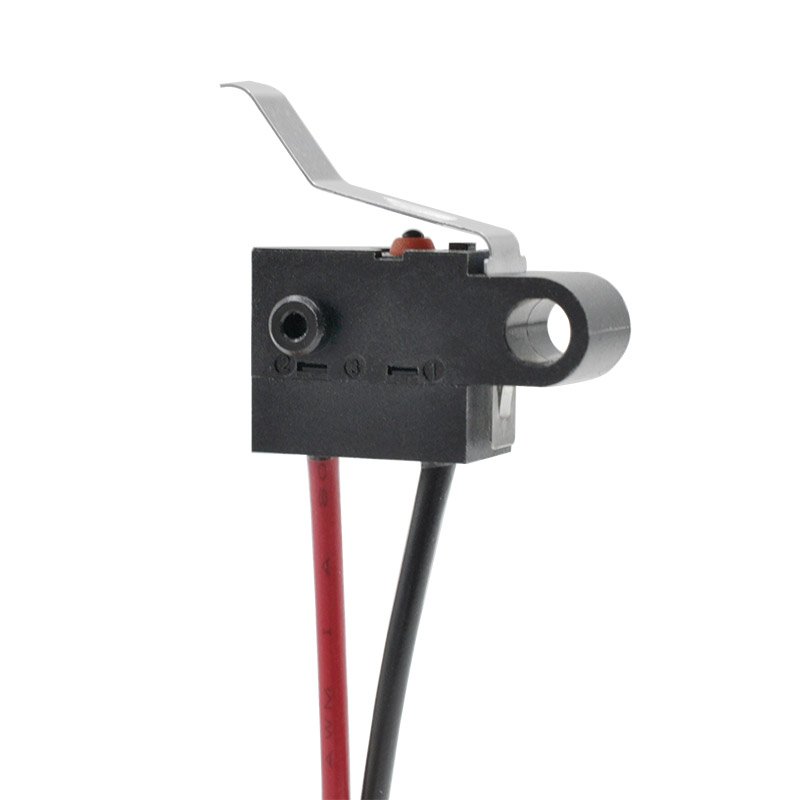

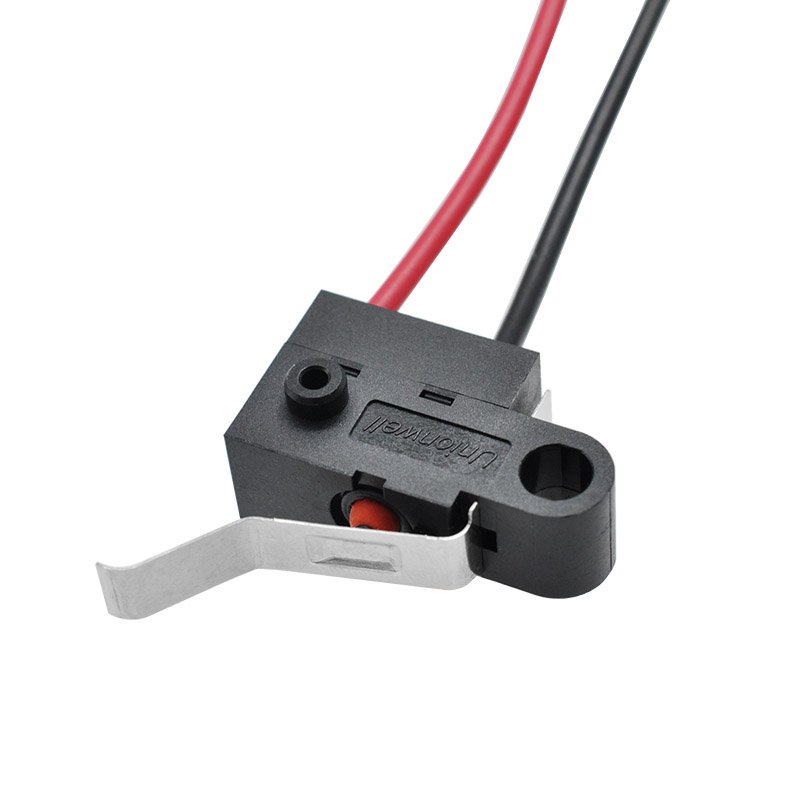

Waterproof Mini Microswitch Photos
