Micro switch 83133169 replacement is G606, which can as the perfect alternative microswitch for Crouzet to use in the condensate pump. As a manufacturer, we provide free sample and certificates.
| Item Number | G606-200K12EK |
|---|---|
| Rating UL/CUL | 0.5A/6A 125/250 VAC, 1/4HP 250VAC 0.5A 125/250VDC |
| Terminal Types | Solder Terminal |
| Temperature | -40~125℃ (40T125) |
| Electrical Life | 100,000cycles |
| Installation Hole | Φ2.5mm |
| Current Code | DPST NO |
| Reset type | manual reset/ auto reset |
| Lever Type | with 12# lever |
Micro Switch 83133169 Replacement Description
Condensate Pump Micro Switch Features
Micro switch 83133169 replacement is G606, which can as the perfect alternative microswitch for Crouzet to use in the condensate pump, like the Little giant pump. The condensate pump requires the micro switch has a light lever to connect with the floater. Because the floater will push the lever to control the pump working when the water level rise and down. Meanwhile, this model also has the UL and cUL certifications for customers. And its rating is 0.5A/6A 125/250 VAC, 1/4HP 250VAC 0.5A 125/250VDC, which is the same as micro switch 83133169. So far, we had replace several cases successfully. Besides, as a microswitch manufacturer, we provide free samples, datasheets, and certificates. Welcome to contact us, we hope to establish a long-term cooperative relationship with you.

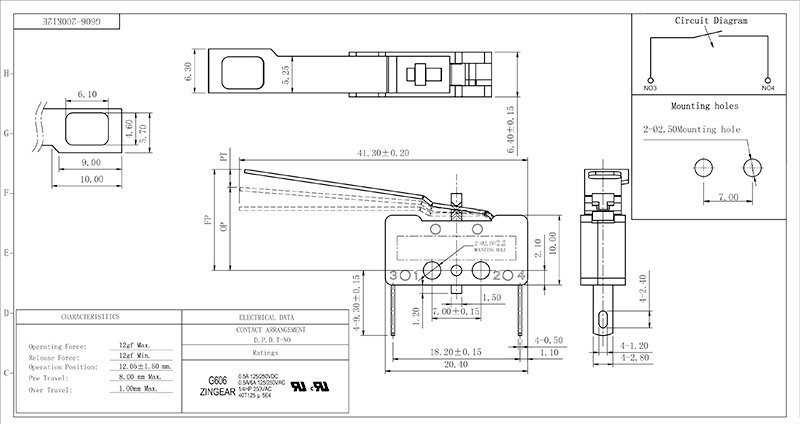

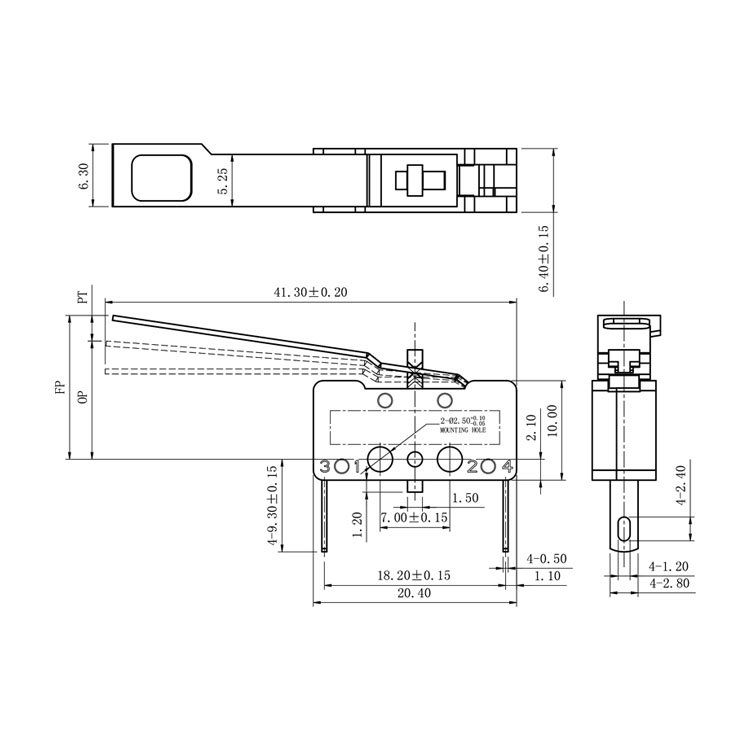

G606 Condensate Pump Micro Switch Parameters & Drawing

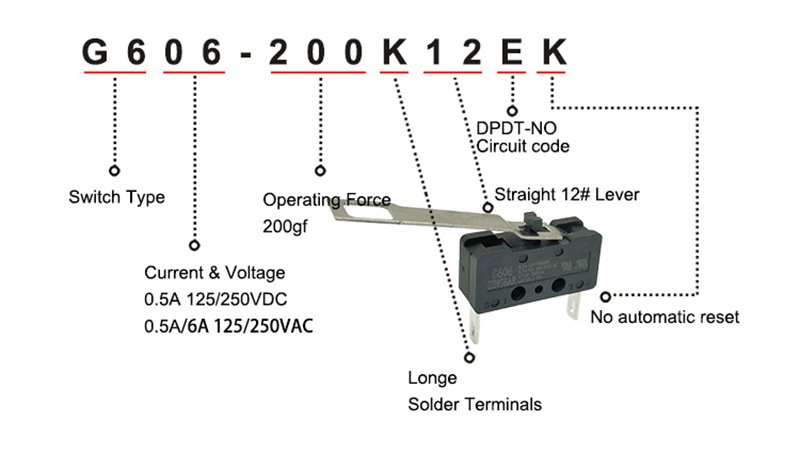

How to choose an item you want?
This is the G606 series micro switch model selection, and the different model number means different parameters. Please check the form to see the kinds you need. If you don’t know how to select it, welcome to contact us, we will help you do the model selection. Or if you need more other switches, welcome to visit our product page to see them.
