2 pole micro switch has 2 connections in its internal structure that have the DPDT and DPST for options. As a microswitch manufacturer, the free sample are available from us.
| Item Number | G606-050R12EK |
|---|---|
| Rating | ENEC/CQC: 0.5A 125/250 VAC UL/CUL: 6A 125/250VAC, 1/4HP 250VAC |
| Terminal Types | Right-side PCB Terminal |
| Temperature | -40~125℃ (40T125) |
| Electrical Life | 50,000cycles |
| Installation Hole | Φ2.5mm |
| Current Code | DPST NO |
2 Pole Micro Switch Description
2 Pole Micro Switch Features
2 pole micro switch has 2 connections in its internal structure that have the DPDT and DPST for options. And the G606-050R12EK is DPST normally open type switch which has 2 right-side PCB terminals. Meanwhile, it as well as has the UL, cUL, ENEC, and CQC certifications for providing to customers. In the selection of a 2 pole micro switch in our G606, its rating is 6A 125/250VAC. However, there has a special setting that once the operating force is 50gf, the application current should be in 0.1A or under 0.1A. Generally, the G606 can be used in float switches, sewage pumps, Condensate Pumps, and so on. As a microswitch manufacturer, the free sample is available, please feel free to contact us to have more information.
The video shows how the micro switch of G606 work in the Condensate Pump.

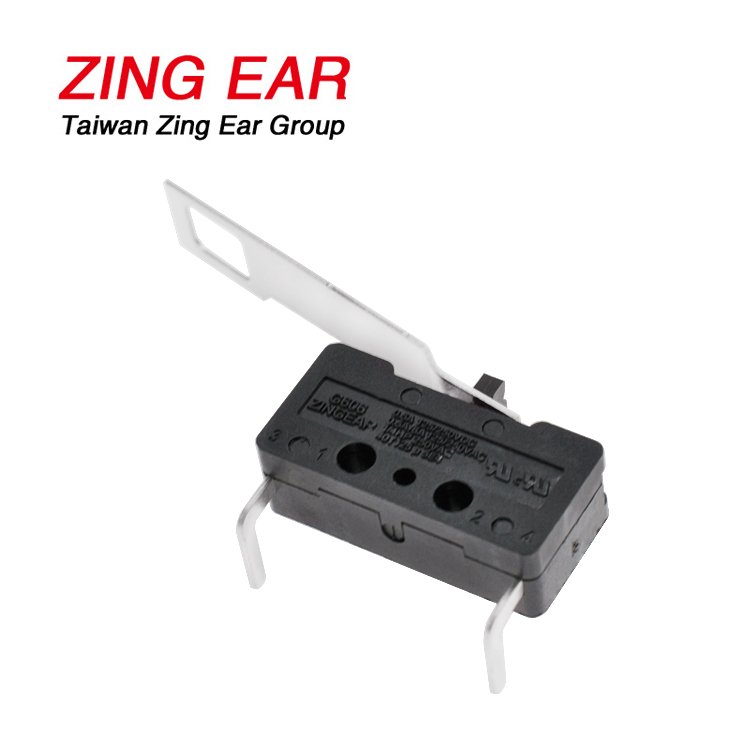

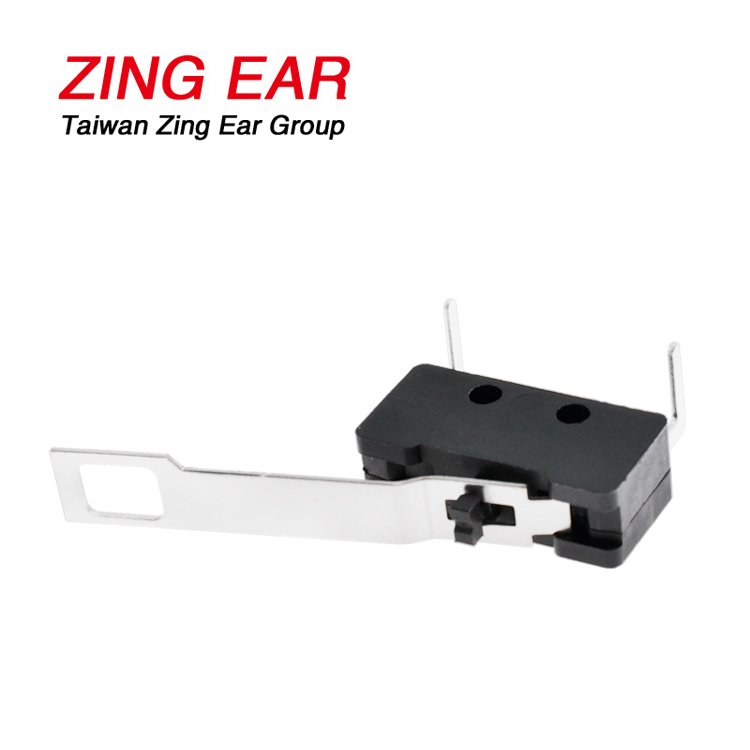

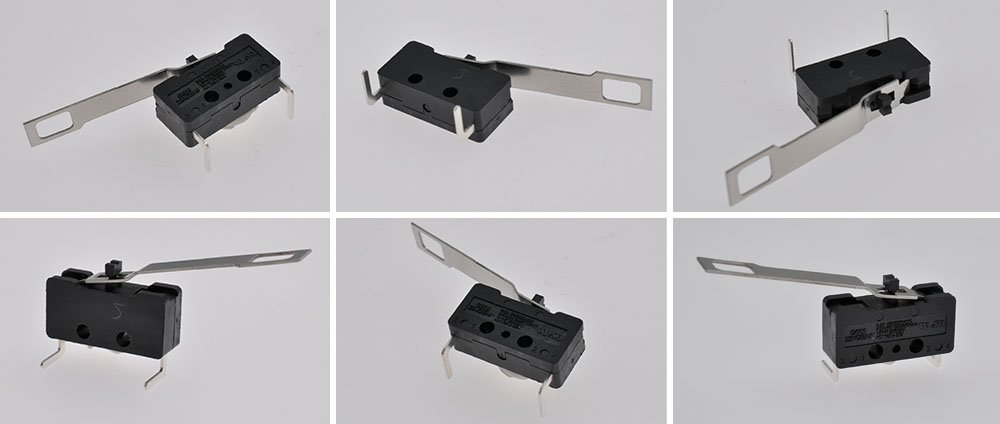

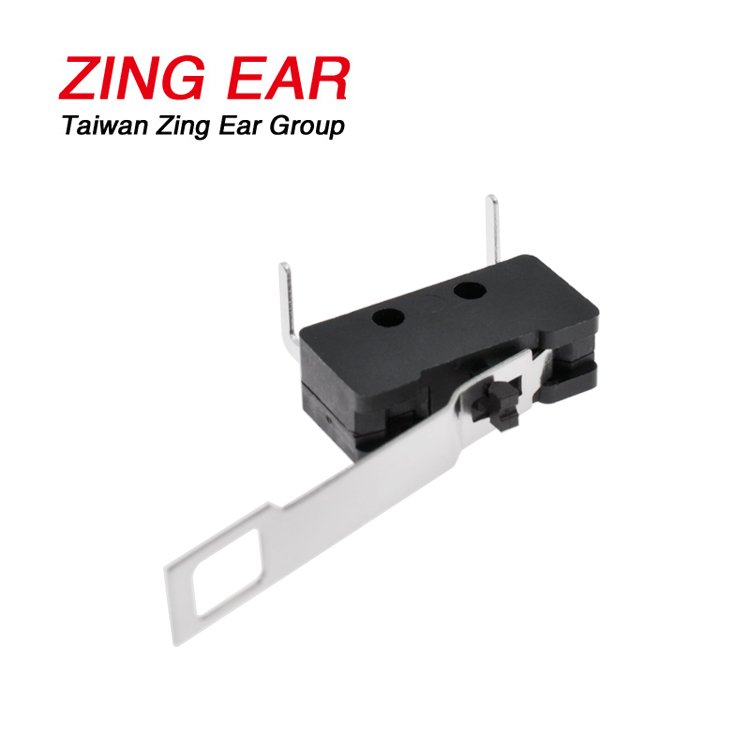

The Photos of 2 Pole Micro Switch

How to choose an item you want?
Huizhou Granye Industrial Co., Ltd
As an illustration, you can see the picture from the left side. It not only shows the parameters of this series micro switch, but you can choose your item easily as well.
