Double pole double throw micro switch is available from us. Free Sample. Meanwhile, the price and quality is good because we are the China manufacturer, the group company since 1983.
| Item Number | G606-200R13D |
|---|---|
| Rating UL/CUL | 0.5A/6A 125/250 VAC, 1/4HP 250VAC 0.5A 125/250VDC |
| Terminal Types | Right Side PCB Terminal |
| Temperature | -40~125℃ (40T125) |
| Electrical Life | 100,000cycles |
| Installation Hole | Φ2.5mm |
| Current Code | DPDT |
| Reset type | auto reset(manual reset is also available for optional) |
| Lever Type | without lever |
Double Pole Double Throw Micro Switch Description
Double Pole Double Throw Micro Switch Features
The G606-200R13D is a double pole double throw micro switch with 4 pin right side PCB terminals, which is also called the DPDT type micro switch. Generally, the PCB terminal switch will be installed with the printed circuit board. So, the rating of this model has DV and AC voltage. For example, the rating of the G606 series is “0.5A/6A 125/250 VAC, 1/4HP 250VAC and 0.5A 125/250VDC”, which is approved by the UL & cUL. Meanwhile, our G606 also has auto reset and manual reset for your options, and this model is an auto reset microswitch. While the manual reset is used for some water pumps/condensate pumps generally, this is because the water level up and down will switch the microswitch current. If you don’t know how to design a microswtich in a condensate pump, please contact us, and we will show you the design.

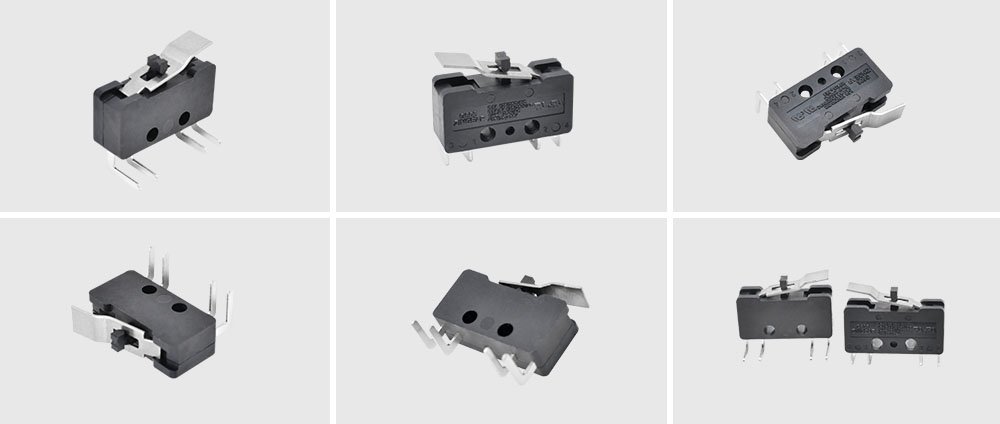

Double Pole Double Throw Micro Switch Photos

How to choose an item you want?

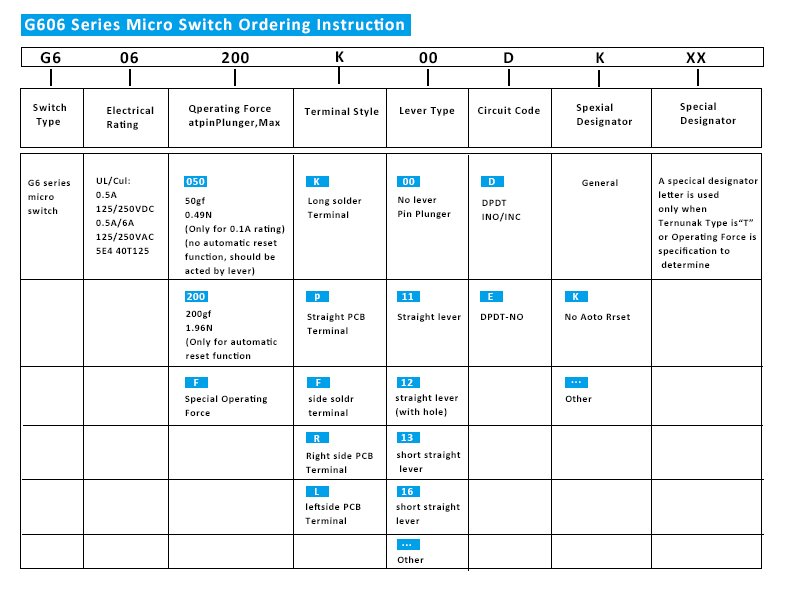

This is the G606 series micro switch model selection, and the different model number means different parameters. Please check the form to see the kinds you need. If you don’t know how to select it, welcome to contact us, we will help you do the model selection. Or if you need more other switches, welcome to visit our product page to see them.

Related Products
Micro Switch Snap Action 4 Terminal DPDTView Details →

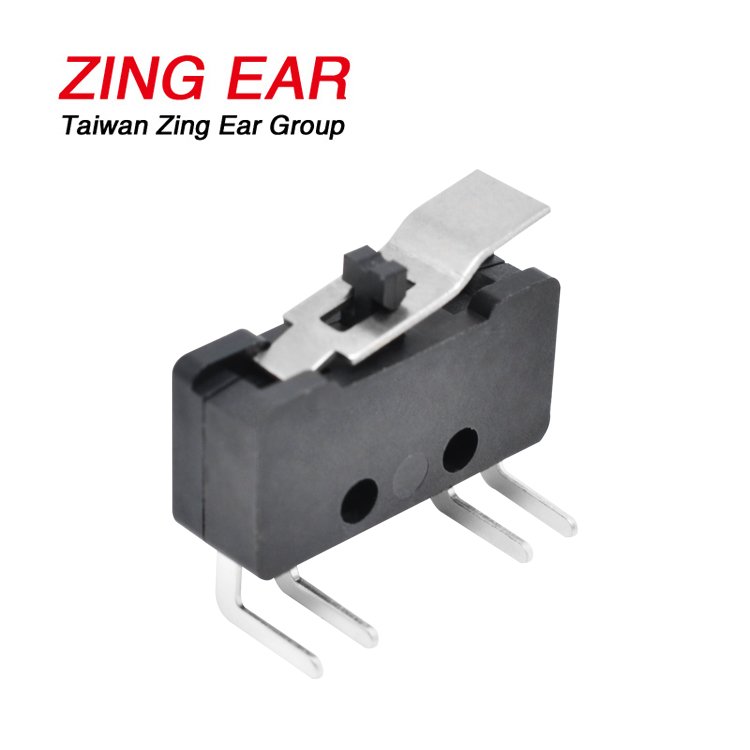

Double Pole Double Throw Micro Switch Right PCB 4 PinView Details →
