Water Proof Roller Micro Switch Lever Microswitches
| Item Number | G905-200E06W1 |
|---|---|
| Rating | 3A 5A 6A 125v 250v 1E4 5E4 |
| Dielectric Strength | Column 2 Value 2 |
| Temperature | -25~120℃ (25T120) |
| Electrical Life | 10,000~100,000cycles |
| Dimension | 19.9*15.25*6.4mm |
G905 Micro Switch Details
Roller Micro Switch Fetures
- This Water Proof Roller Micro Switch Lever Microswitches is IP67 water proof and dustproof, so that you can use it in a wet and outdoor environment.
- Meanwhile, our microswitch has vareity of terminals and levers (Roller, Straight) for option, in other words you can use it not matter in household appliance or industrial equipment and Auto Control.
- On the other hand, it is high quality and long life. For example, the mechanical life is at least 500000 cycles.
- The small compact size can meet your requirement in dimension.
- In conclusion, our micro switches are widely use with high reliability, so they should be your perfect choice.

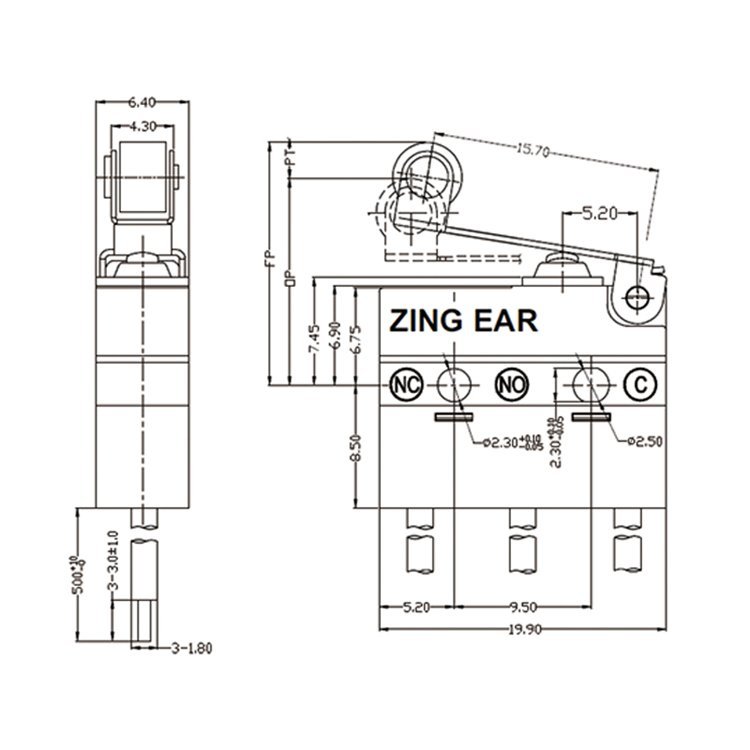

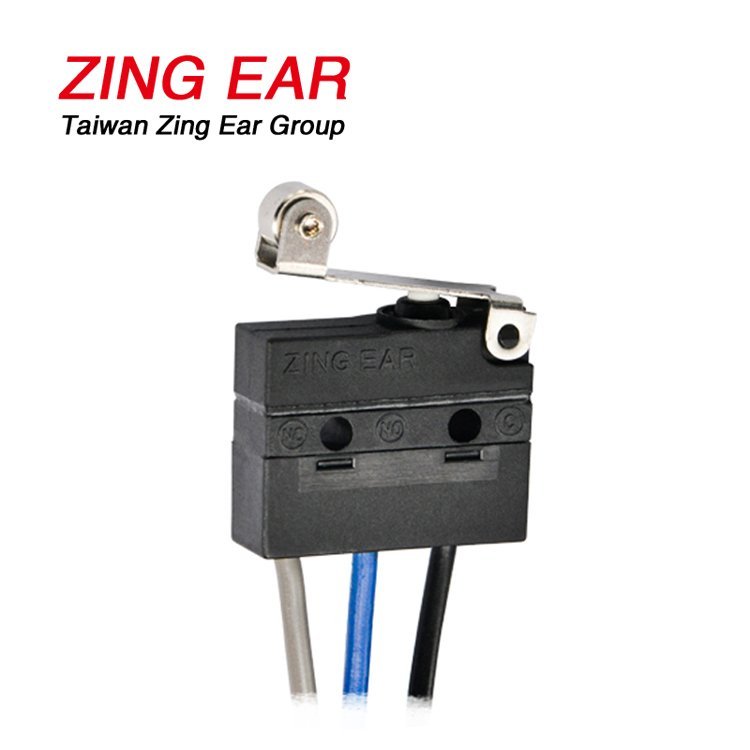

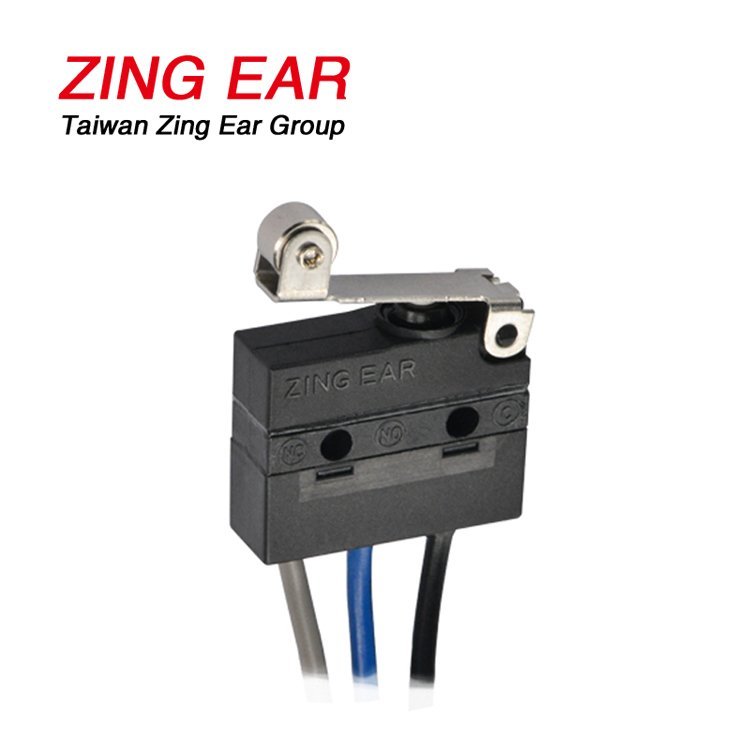

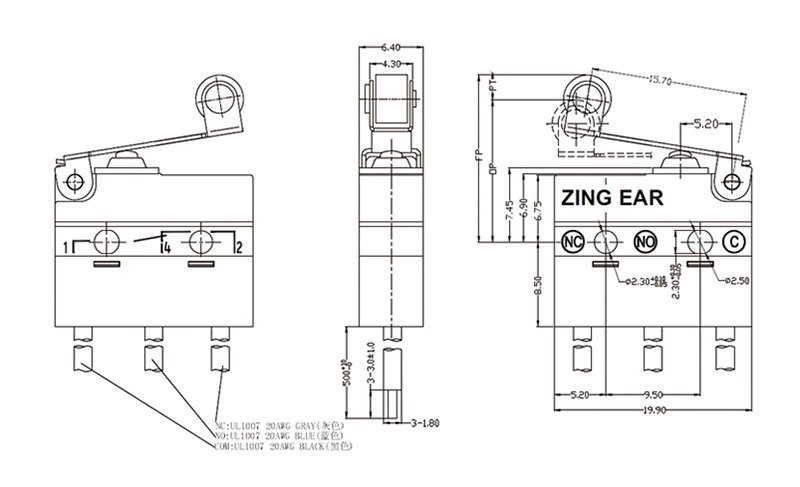

Micro Switch Lever Drawing and Photos

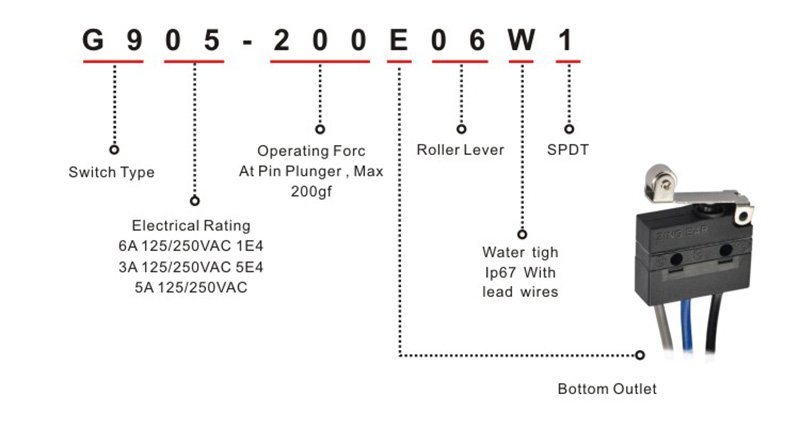

The Micro Switch Item Explain
As you can see, we can do the parameters as you want. So you can contact us to tell us your request. For instance, the terminal size, operating force, lever type, and etc. all of them can be custom. Therefore, we can provide all micro switch and other product you need to you satisfactorily.
Our Advantage
Why choose us?
- Firstly, we are the factory of Zing Ear switch for many years, so we can provide you the high standard quality micro switch products;
- Secondly, we have been approved by ISO9001, ISO/TS16949, ENEC, RoHS, REACH, CQC, etc. Therefore, we not only can know your requirement professionally but also provide you with certificates.
- Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you at the same time.
- What’s more, if you need other electronic components, we can help you to buy them and ship them with our switch.
