ZE-700MH-5A 5 Amp breaker switch circuit overload protector is high quality and competitive price, which has UL, cUL, and CSA safety certification. And this model can produce the current from 3A to 50A, welcome to contact us to get more details.
- MPN: ZE-700MH-5A
- Rating: 5A 125/250VAC/50VDC (3A to 50A is available)
- Dielectric Strength: 1500VAC/1 Minute
- Interrupt Capacity: 125 VAC*1000A, 250 VAC*2000A.
- Insulation Resistance: >100MΩ
- Contact Endurance: 125VAC*150% of rated current – 500 cycles
- Reset Type: Manual (Auto type is also available)
- Certification: UL, cUL, CSA
- Sample & Datasheet & Quotation: Available
5 Amp Breaker Switch Description

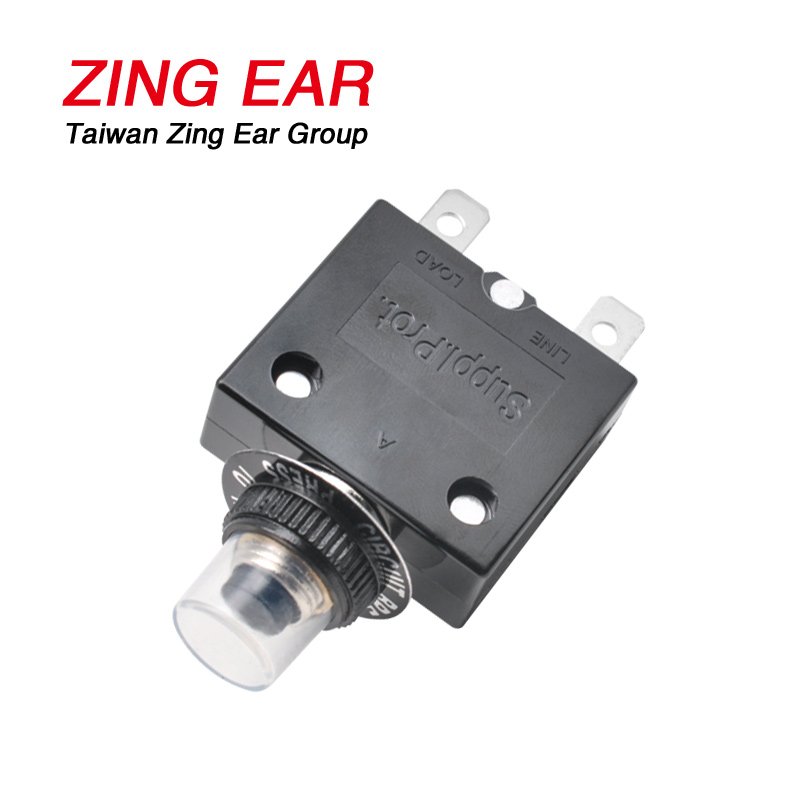

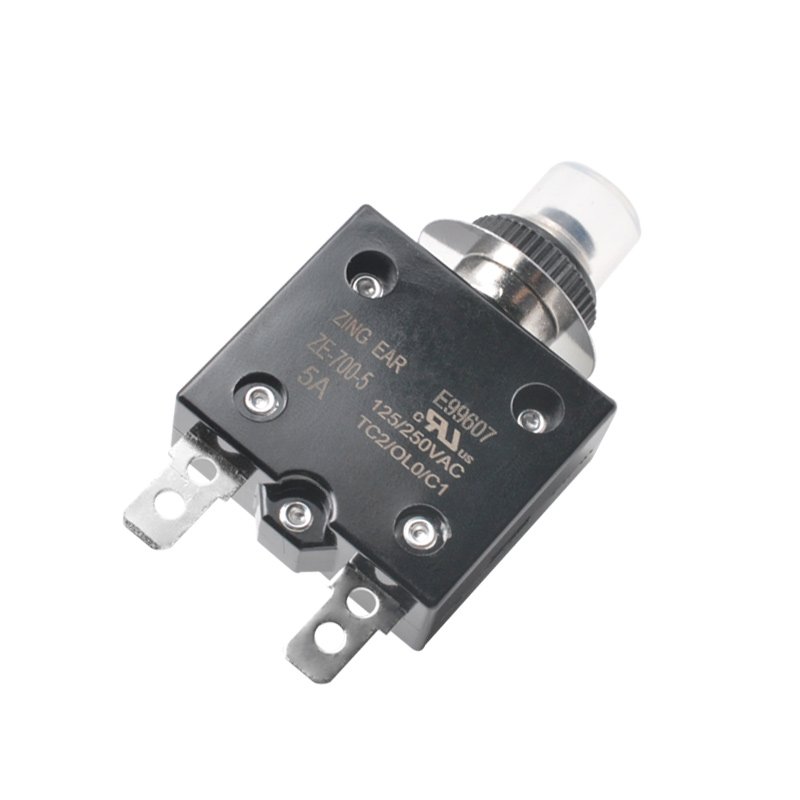

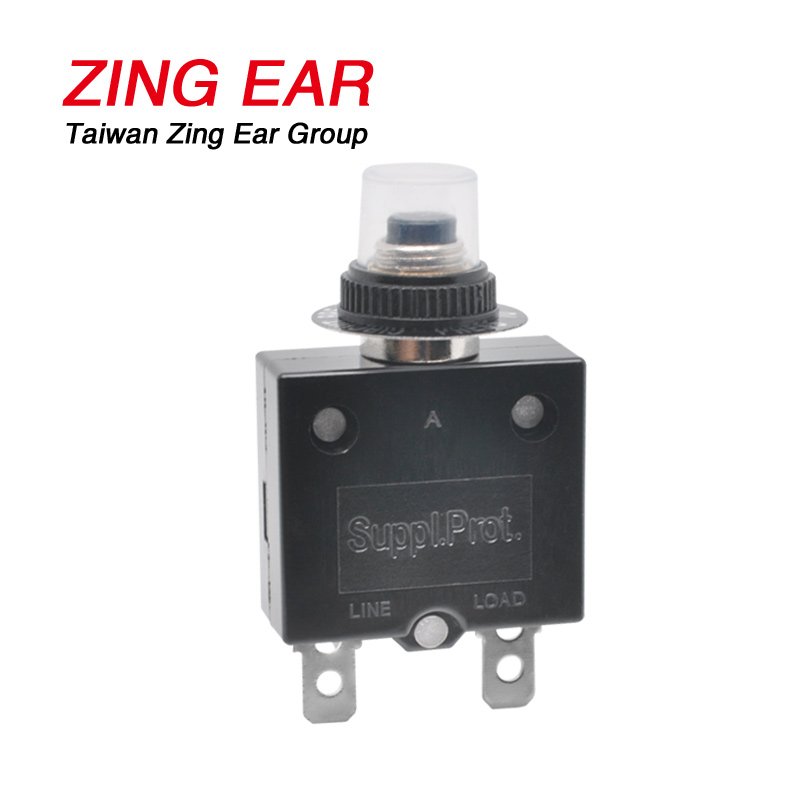

ZE-700MH-5A 5 Amp Breaker Switch Pictures



ZE-700MH-5A 5 Amp Breaker Switch Features

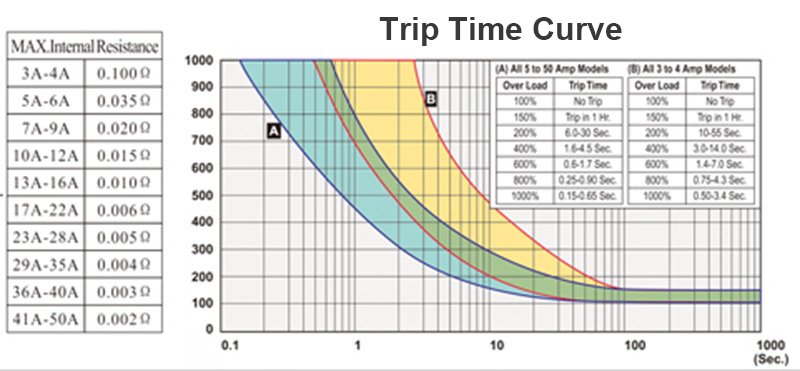

The ZE-700MH-5A 5 Amp breaker switch can protect the circuit when an overload happens. So, it can reduce the damage to the electric appliance when a short circuit happens. And this model protects current is 5A, and its rating is 5A 125/250VAC/50VDC. It means that when the appliance’s working current is over 5Amp the switch will break down to cut off the circuit. Please check the “Trip Time Curve” sheet to know the breakdown time.

Meanwhile, the Zing Ear circuit overload protector is high quality and stability as well as it has UL, cUL, and CSA safety certifications. Welcome customers to test our sample to know the quality. Generally, the breaker switch has different types of reset types for options which have manual push reset and auto reset types. Engineers can choose them according to their requirements. Although this model is a 5 Amp breaker switch, the ZE-700 series can be produced from 3A to 50A, welcome to contact us or click the link to know more about our circuit breaker switches information.

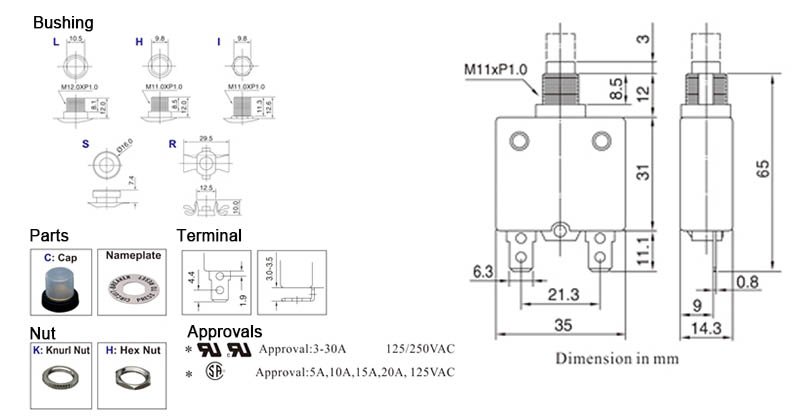

ZE-700MH-5A 5 Amp Breaker Switch Accessories & Size

ZE-700MH-5A Breaker Switch Video Display
