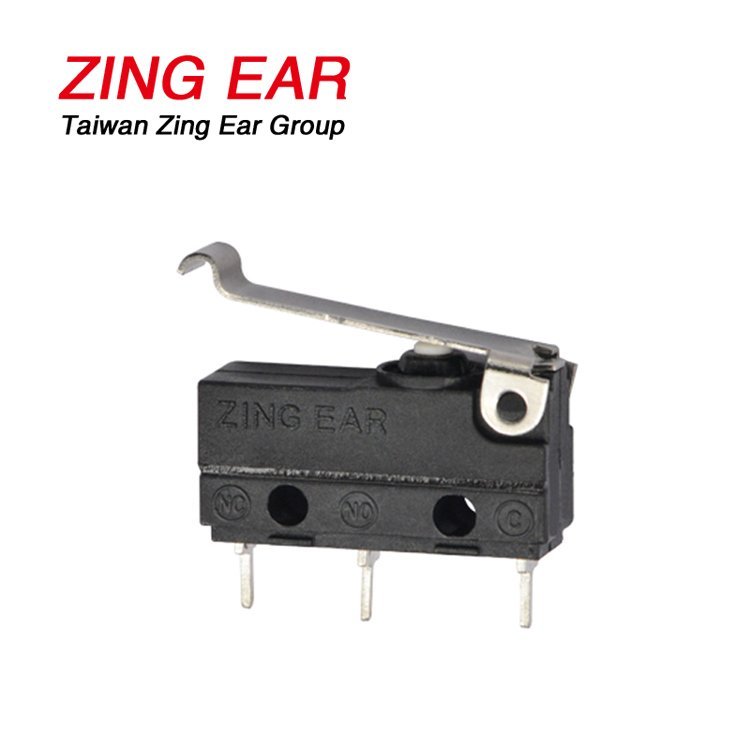

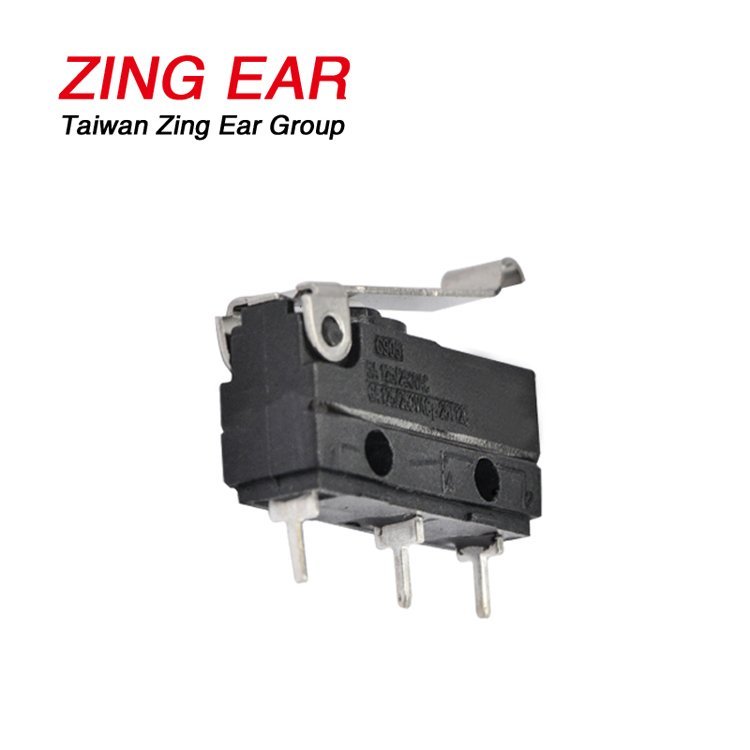

Small Simulated Roller ENEC Micro Switch 3 Pin
| Item Number | G905-200S07D1 |
|---|---|
| Rating | 3A 5A 6A 125v 250v 1E4 5E4 |
| Dielectric Strength | AC 1000V RMS (50~60Hz) |
| Temperature | -25~120℃ (25T120) |
| Electrical Life | 10,000~100,000cycles |
| Dimension | 19.9*6.4mm |
ENEC Micro Switch 3 Pin
G905 Micro Switch Details
Microswitch Fetures
The Zing Ear G905 Series is rated for controlling electrical loads ranging from logic level/computer-based circuits to power-duty switching (up to 6 amps and up to 250 Vac). Switches supplied with solder terminals are sealed to IP67 and are suitable for applications where a switch assembly would be exposed to liquids or particulate contaminates in the environment from indoor or outdoor use. Meanwhile, our G905 series are competitive price and high quality, which have been accepted and awarded by most customers. This item also can replace for Honeywell ZX series . Single pole dual trough micro switch 3 pin design, you control two circuits.

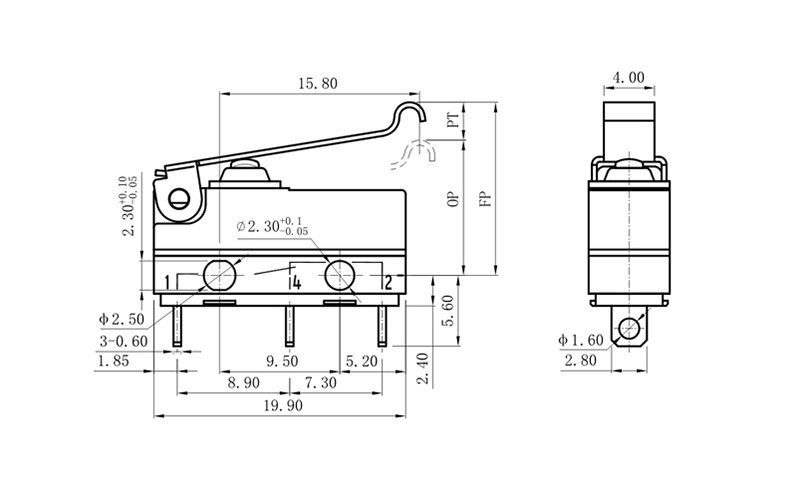

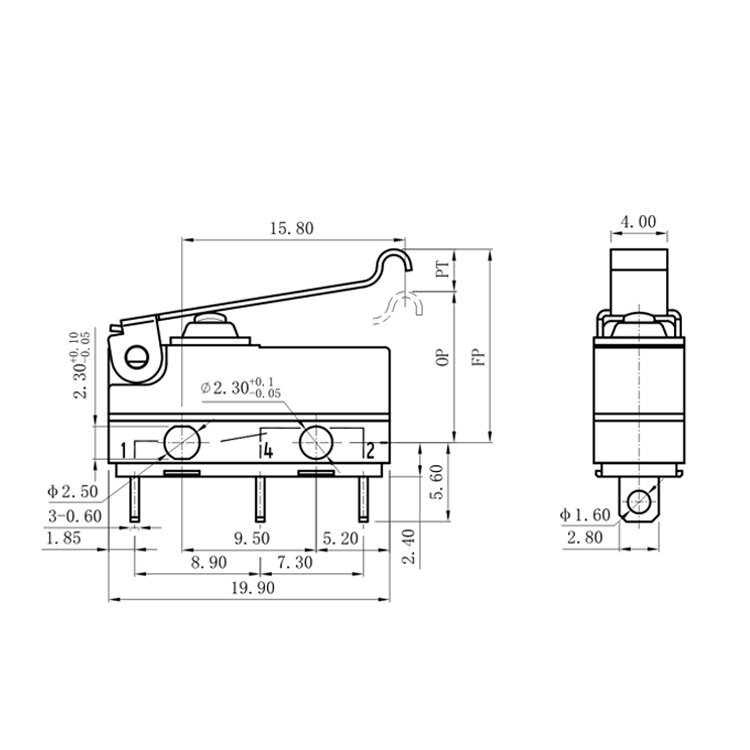

Drawing and Photoes




The Micro Switch Item Explain

As you can see, we can do the parameters as you want. So you can contact us to tell us your request. For instance, the terminal size, operating force, lever type, and etc. all of them can be custom. Therefore, we can provide all micro switch and other product you need to you satisfactorily.
Our Advantage
Why choose us?
- Firstly, because Grandye is the factory of Zing Ear switch with many years producing experience, so we can provide you the high standard quality micro switch products;
- Secondly, our company has approved by ISO9001,ISO/TS16949, ENEC, RoHS, REACH, CQC etc. Therefore, we not only can know your requirement professionally, but also we provide you certificates.
- Thirdly, as a professional team, we will help you to solve your problem in the project, because our engineer and sales will service you in the same time.
- What’s more, if you need other electron components, grandye also can help to buy them and ship with the switch. So that you can save you time and money.
