Wireless Microswitch
- MPN: G10A03-150P25A
- Rating: 1/3A 125VAC
- Contact Arrangement: SPDT
- Lever Type: 25# Upward Lever
- Certification: UL, cUL, ENEC, CQC
- Sample & Datasheet & Quotation: Available
Wireless Microswitch Description

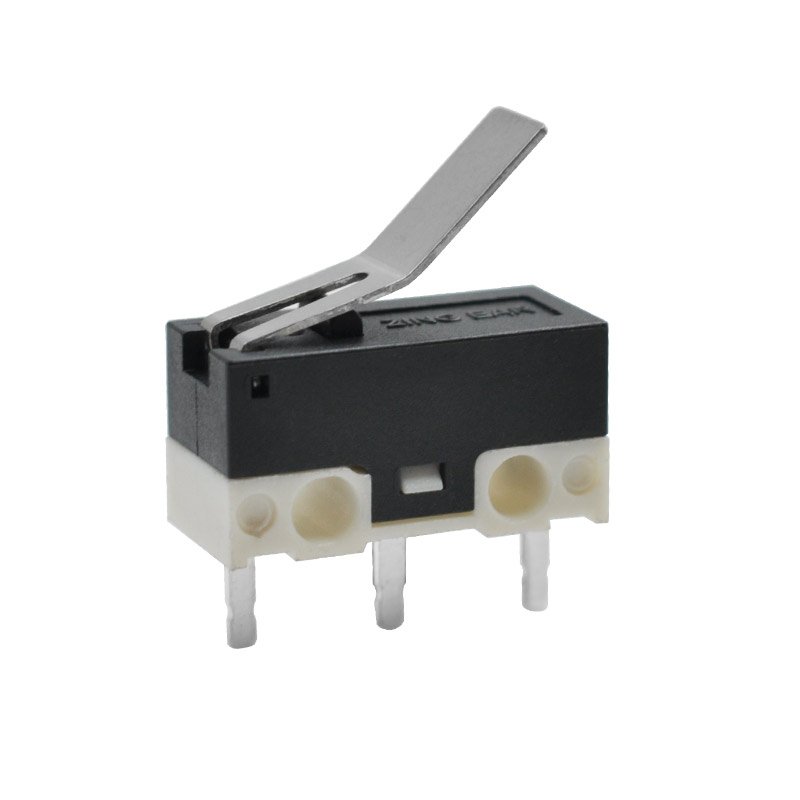

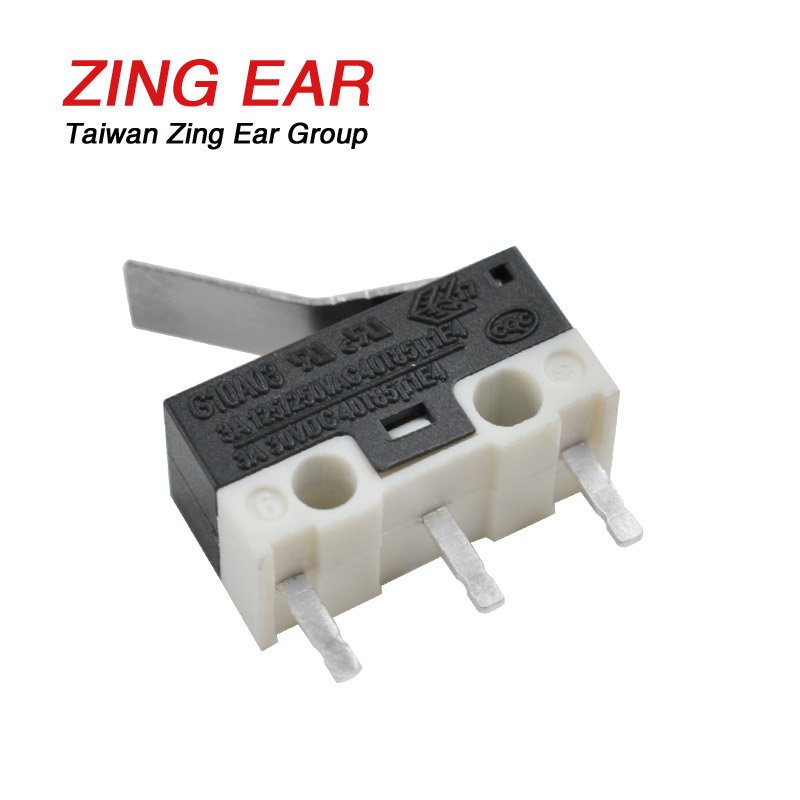

G10A03-150P25A Wireless Micro Switch Pictures



Wireless Micro Switch Features
The G10A03-150P25A is a wireless microswitch that is the terminal-type without wire, which has 3-pin PCB terminals and an upward metal lever. Meanwhile, it has a sub-miniature size that is 1.28cm in length, so it can be installed in a very small space. However, our G10 is different from the mouse switch also they look the same appearance. Our G10 can work with load, for example, the raring is 3A 125VAC with 100000 cycles with UL cUL ENEC and CQC certifications. So the material requires is different from the Mouse switch. All in all, this model is HIGH-QUALITY and LONG-LIFE! And the FREE SAMPLES are available before ordering! Welcome to contact us!

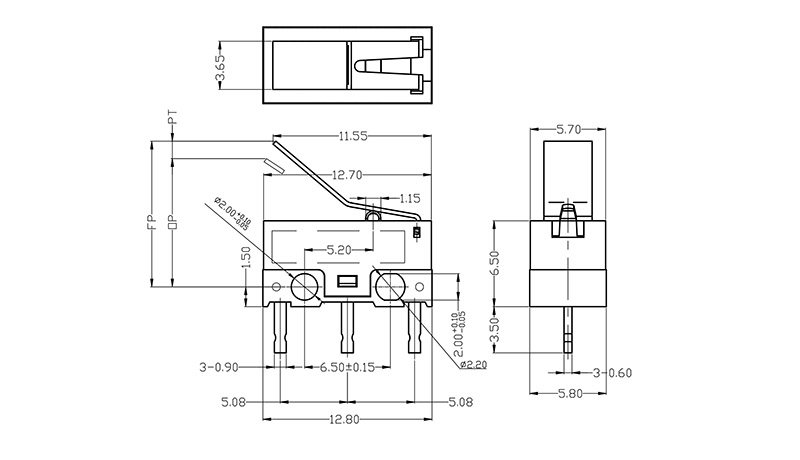

G10A03-150P25A Wireless Microswitch Drawing
