Short Description: Zing Ear ZE-156 series rotary light switch can control the resistance to control the machine’s brightness or speed with UL, CSA certification
| Item Number | ZE-156/156M/156D |
|---|---|
| Rating | 3A 250V/6A 125 V/3A 125VL |
| Cover Material | 156&156D Plastic; 156M Metal |
| Base Material | Phenolic |
| Function(156&156M) | OFF, L-1,L-2 |
| Function(156D) | LO-HI-OFF/HI-LO-OFF |
| Certificate | UL, CSA |

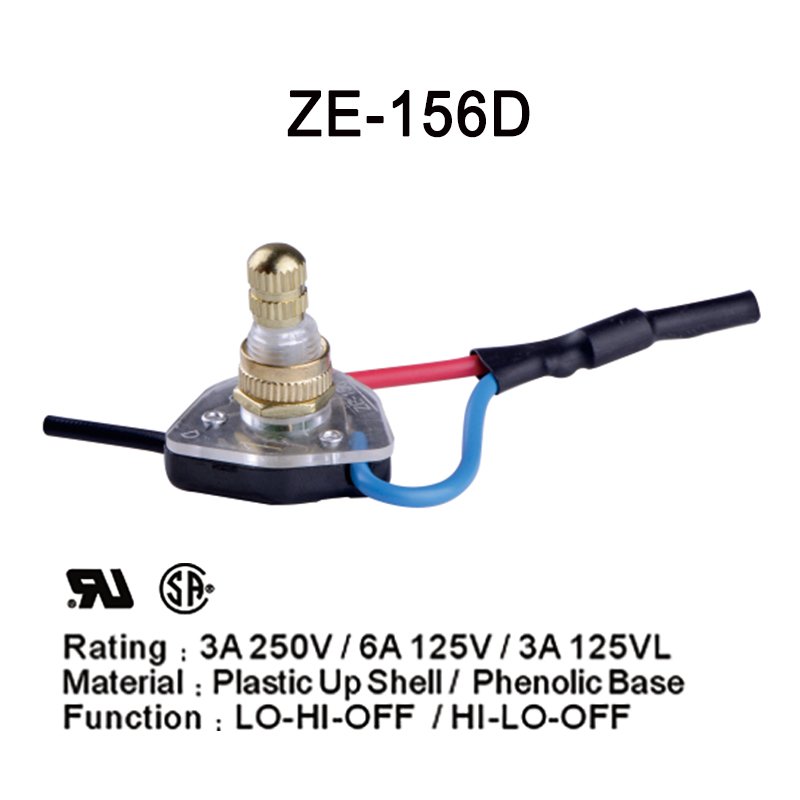

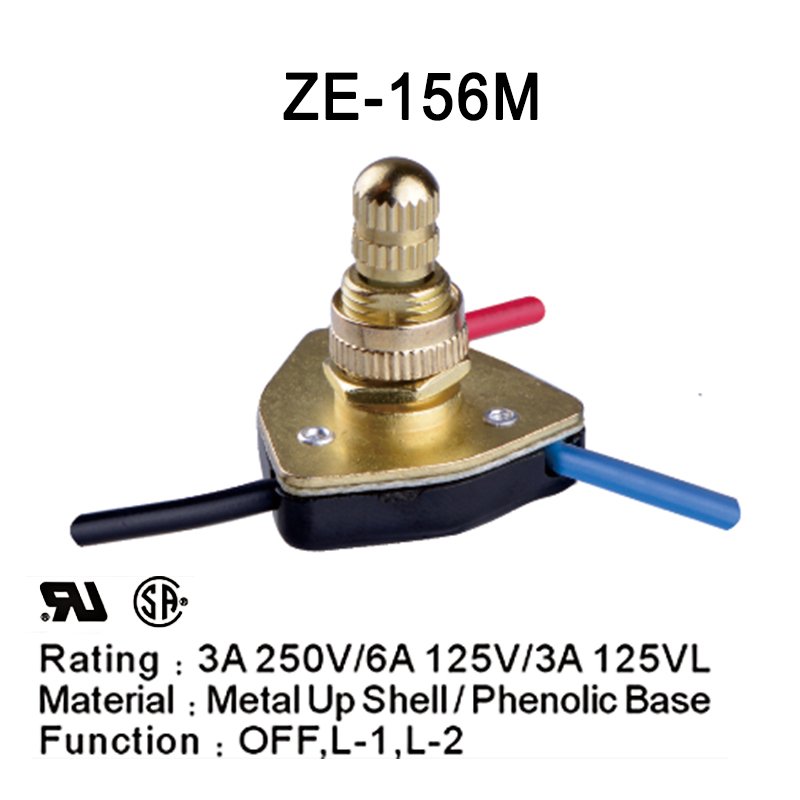

ZE-156 Series Rotary Light Switch Details
ZE-156 Series Rotation Switch Features
Zing Ear ZE-156 series rotary switch can control the resistance to control the machine’s brightness or speed. Generally, the light lamp product will use this kind of switch. Meanwhile, there are plastic and metal cover for options, and the base is used a high-quality phenolic base. So, this switch is no only have different types of material for choice but also is high-quality and safe. Besides, it has the UL and CSA certification to make sure what we said. The rating of these two models is in 3A 250V/6A 125V/3A 125VL and if you have any other requirements, please contact us to get more information. All in all, we can provide many kinds of switches for you.

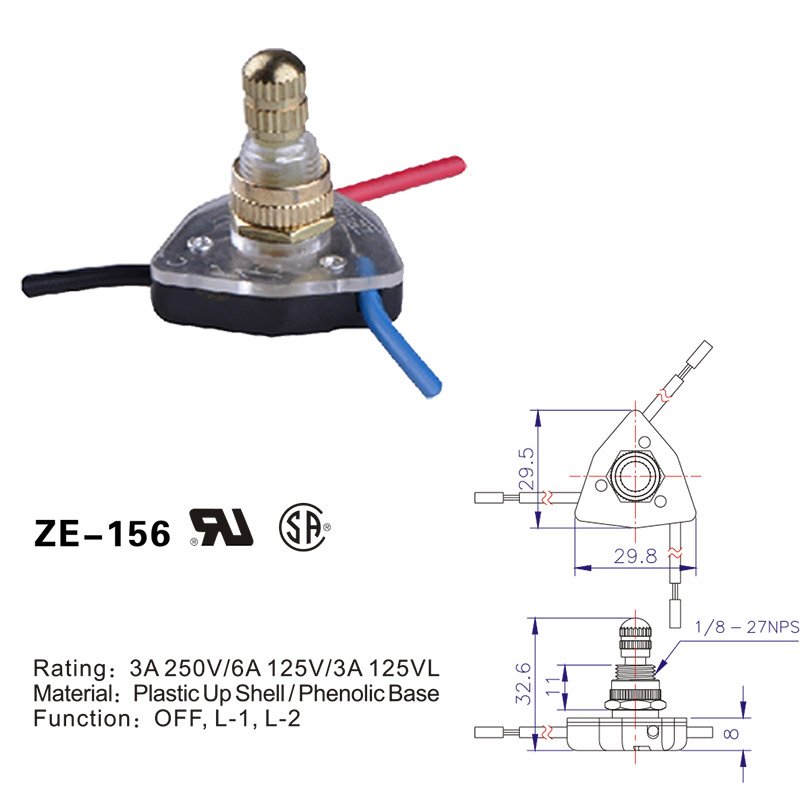

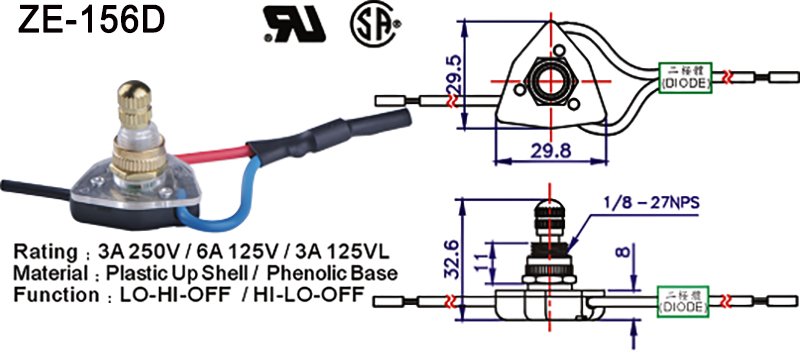

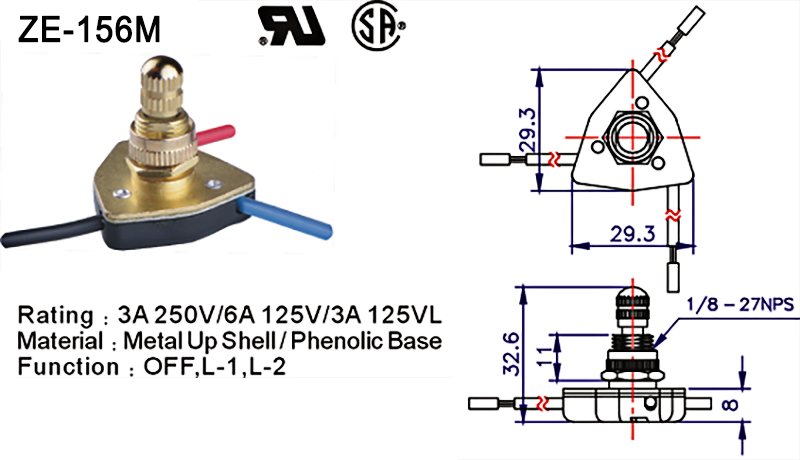

ZE-156 Series Switch Drawing


Our Advantages
- Firstly, we are the factory of Zing Ear switch for many years, so we can provide you the high standard quality micro switch products;
- Secondly, we have approved by ISO9001, ISO/TS16949, ENEC, RoHS, REACH, CQC, etc. Therefore, we not only can know your requirement professionally but also we provide you certificates.
- Thirdly, we will help you to solve your problem in the project, because our engineer and sales will service you at the same time. What’s more, if you need other electronic components, we can help you to buy them and ship them with our switch.
