Short Description: The micro switch V-156-1C25 replacement is available from us, it has a roller lever with SPDT current ON – (OFF) and OFF – (ON) switch function. 16A 125/250VAC rating with Max 150℃.
| Item Number | G5H16-E1Z200A06 |
|---|---|
| Rating | ENEC/CQC: 16(4)A 250VAC UL/CUL: 16A 1/2HP 125/250VAC |
| Terminal Size | 4.8*0.5mm/0.187*0.02” |
| Temperature | -25~125℃ (25T125) |
| Electrical Life | 100,000cycles |
| Installation Hole | Φ3.1mm |
| Terminal Type | Quick Connect |
| Voltage Resistance | AC 1000V RMS (50~60Hz) |
| Operation Force | 120g f |
| Current Code | SPDT |
| Lever Type | Roller lever |
Micro Switch V-156-1C25 Replacement Details
Micro Switch V-156-1C25 Replacement Features
The micro switch V-156-1C25 replacement is available from us, and our G5H16-E1Z200A06 or G5T16-E1Z200A06 microswitch can be the alternative switch. In fact, we have many projects experiences in it because now the delivery time problem. Our lead time is about 30 days, but the V-156 is too long. Meanwhile, our switch quality is good. So, this is why we can replace this model’s project. This model has a roller lever with SPDT current ON – (OFF) and OFF – (ON) switch functions. Besides, its rating is 16A 125/250VAC and 25T150, which is certificated by the UL, cUL, ENEC, and CQC. For more questions, please feel free to contact us.

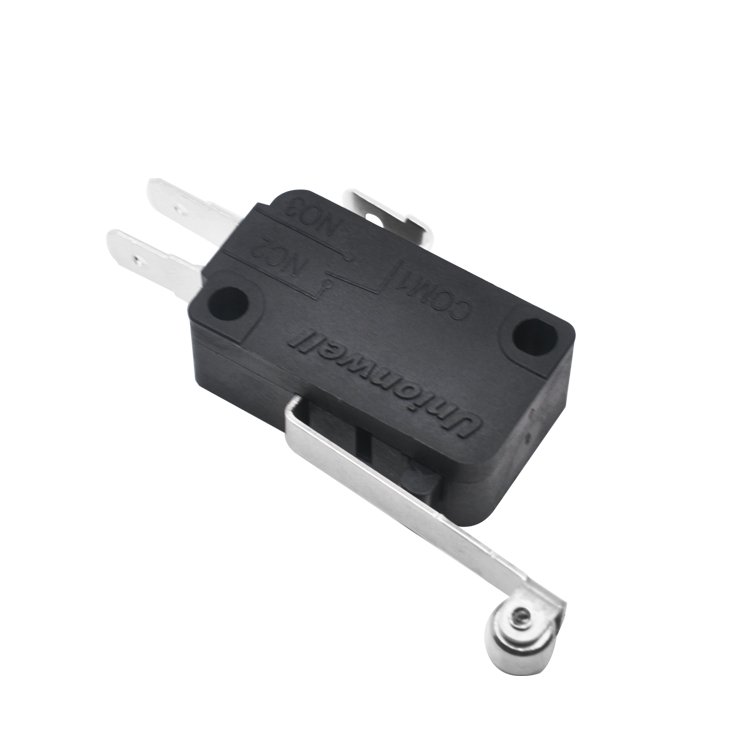

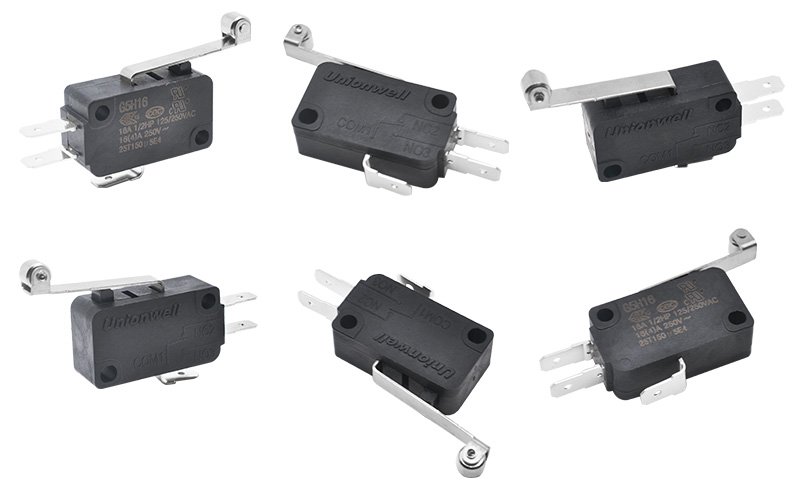

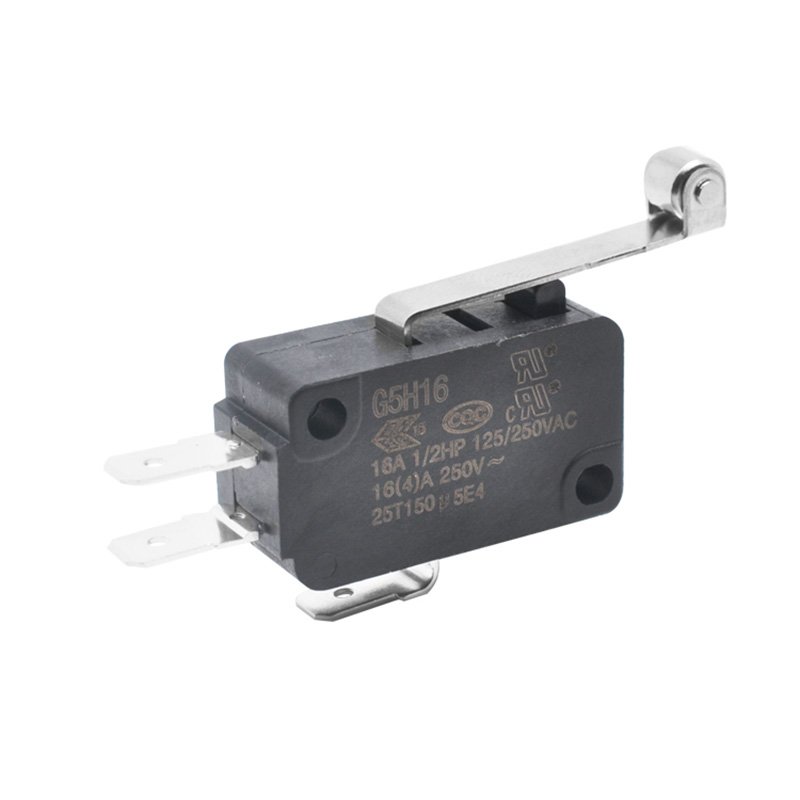

Micro Switch V-156-1C25 Replacement Photos

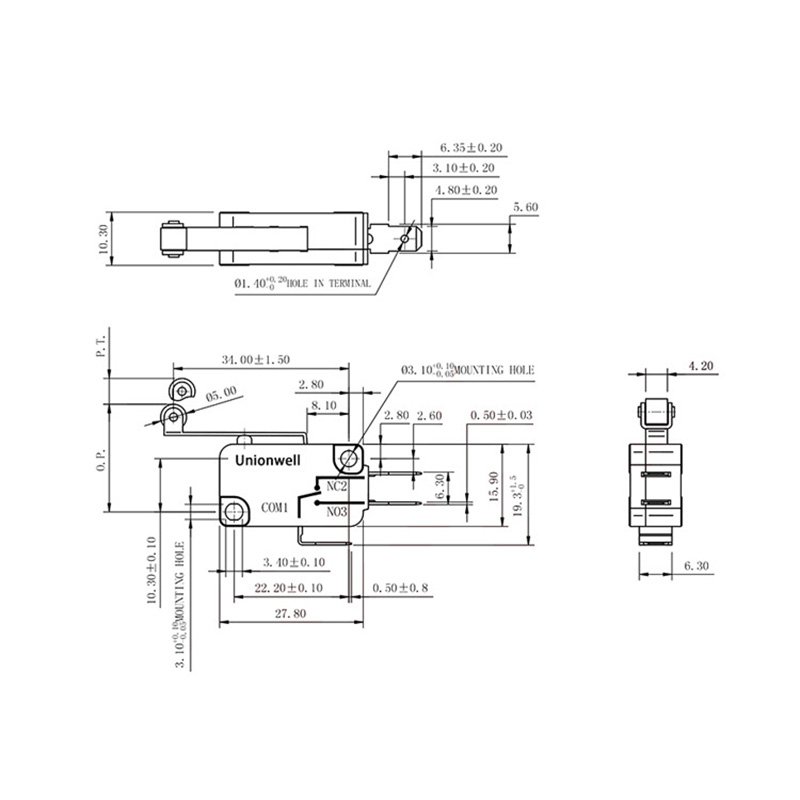

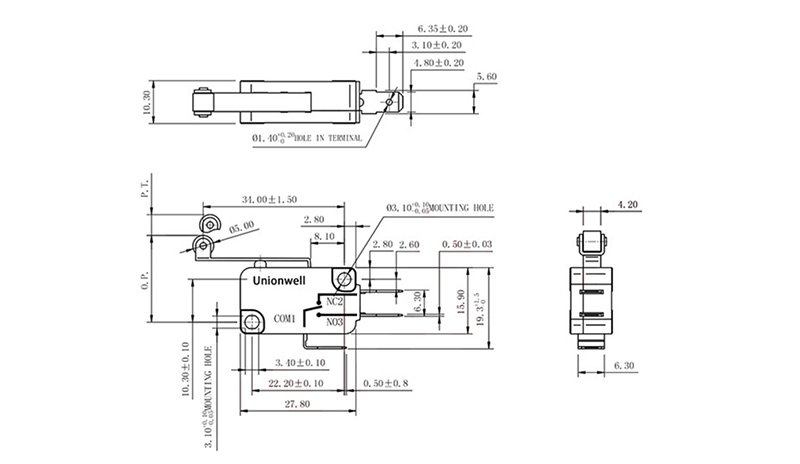

Micro Switch V-156-1C25 Replacement Drawing
