50E3 t100 micro switch means the microswitch can work in 100℃ 10A 125/250VAC with 50000 cycles, which is verified by UL cUL, ENEC, and CQC. Best Price & Free Sample!
- MPN: G5F10-D2Z200-D5
- Rating: 10A 125/250VAC
- Contact Arrangement: SPDT
- Operation Force: 200gf
- Operation Position: 15±0.5mm
- Pre Travel: 1.6mm Max
- Lever Type: Without Lever
- Protection Level: IP64
- Certification: UL, cUL, ENEC, CQC
- Sample & Datasheet & Quotation: Available
5E4 25T125 Micro Switch Description

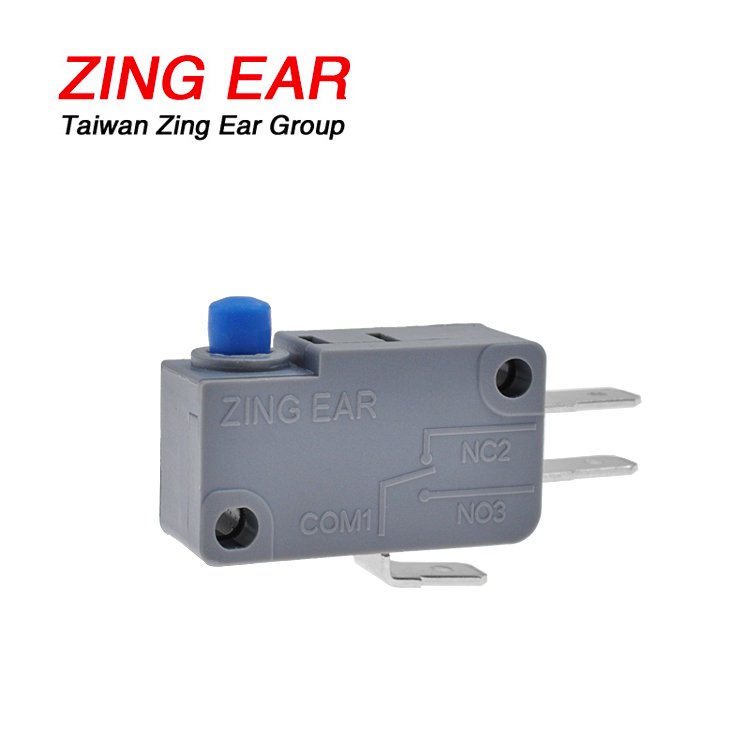

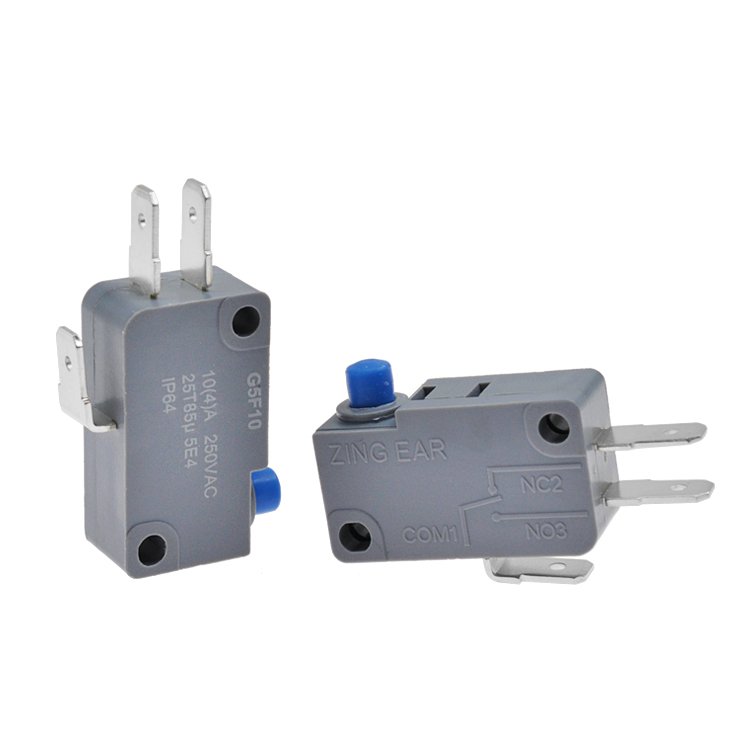

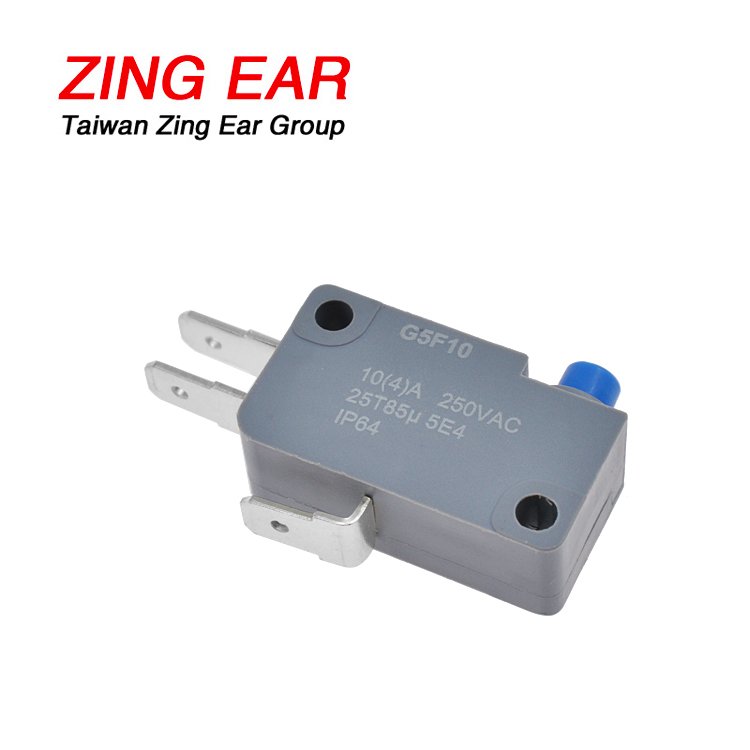

50E3 T100 Micro Switch Pictures



50E3 T100 Micro Switch Details Information
The 50E3 T100 micro switch means the microswitch can work at Max 100℃ in a particular range of ratings. For example, the rating of the G5F10-D2Z200-D5 is 10A 125/250VAC with 50000 cycles, which is verified by UL cUL, ENEC, and CQC. In fact, the 50E3 is the same as the 5E4, and the 25T125 can cover the T100, if you don’t know what it means, please contact us. This model is not only big in size and high-current (10A) but also it is water & dustproof type, which a protection level is IP64. So that you can use it in a wet working environment.

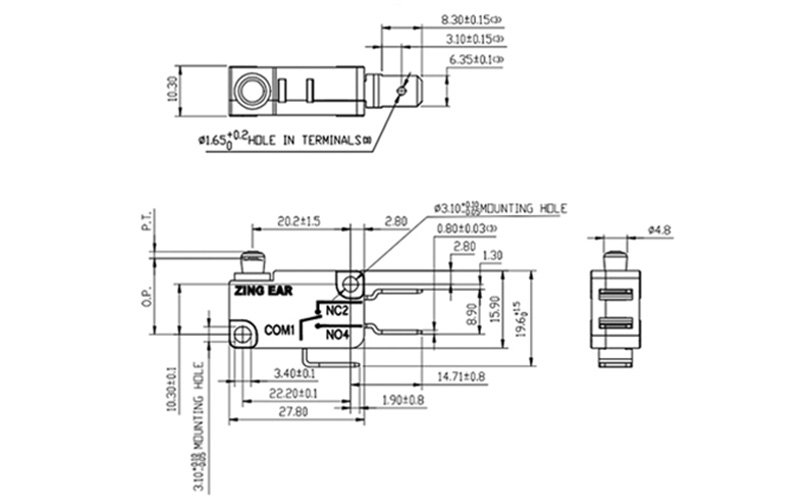

G5F10-D2Z200-D5 IP64 Microswitch drawing Drawing
