Short Description: This is a high temperature micro switch with normally open 10A type, which can work in temperature 150℃. It has UL/cUL, ENEC, CQC certificates.
| Item Number | G5H10-E1P050B03 |
|---|---|
| Rating | UL/CUL: 1A 30VDC 10A 1/2HP 125/250VAC ENEC/CQC: 10(3)A 125/250VAC |
| Terminal Size | 4.8*0.5mm/0.187*0.02” |
| Temperature | -25~150℃ (25T150) |
| Electrical Life | 50,000cycles |
| Installation Hole | Φ3.1mm |
| Terminal Type | Quick Connect |
| Voltage Resistance | AC 1000V RMS (50~60Hz) |
| Operation Force | 50g f |
| Current Code | SPST-NO |
| Lever Type | 03# straight lever |
G5H10 High Temperature Microswitch
The High-temperature Microswitch Features
This is a high-temperature microswitch with normally open 10A type, which can work at temperature 150℃. So, it can be used in some devices with temperature requirements. Such as the electric heater, electric water tap, aquarium water pump, and so on. Meanwhile, this model has a long metal lever, which can help to increase the Pre-travel (PT) and reduce the operation force. Besides, if you have other requirements with the switch, please contact us, we have thousands of models for your options. What’s more, our product has UL/cUL, ENEC, CQC certificates, and our factory has the ISO system.

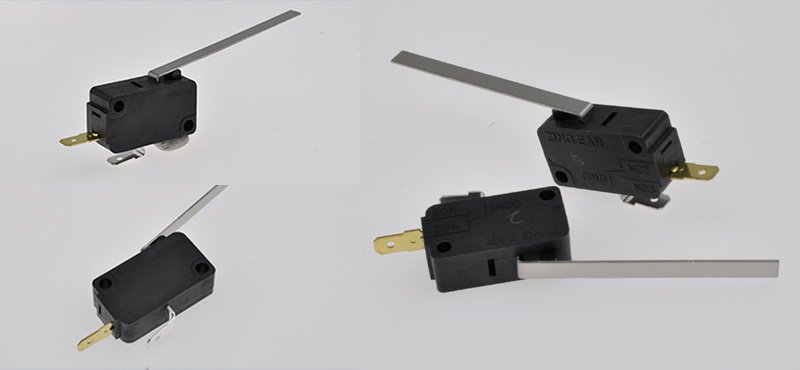

Normally Open Microswitch Photos

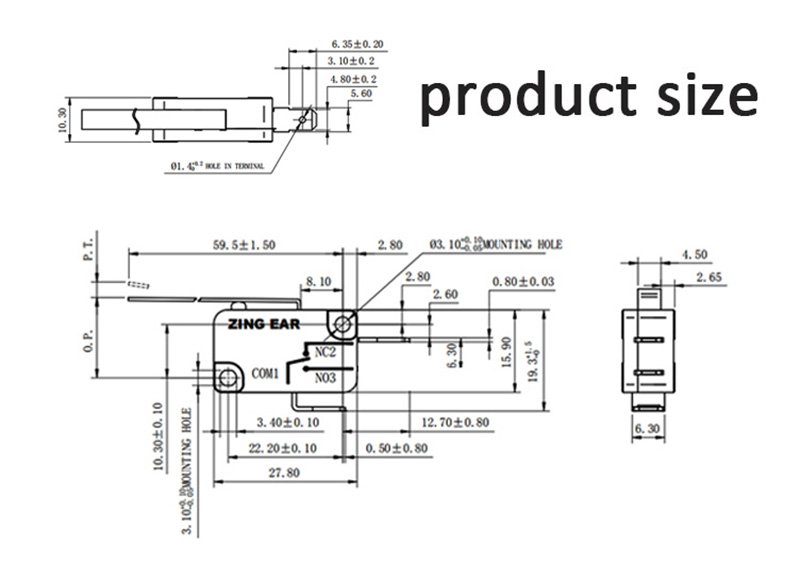

The G5H10 Snap Switch Drawing

How to choose an item you want?
Huizhou Granye Industrial Co., Ltd
As an illustration, you can see the picture from the left side. It not only show the parameters of this series microswitch, but you can choose your item easily as well. For example, if you need a switch in 0.1A 48VDC 6.3*0.8mm terminal Long straight lever SPDT 100gf operating force and MAX 85℃. You can choose our G5S05-CA100A06. However, if you are not sure, you also can tell us your requirement, we will recommend an item for you.
