Door Switch for Furnace
- MPN: ZE-205A
- Rating: 10A 250VAC/15A 125VAC/6A 125VL
- Contact Arrangement: Normally ON or Normally OFF
- Lever Type: Plastic Lever
- Certification: UL, CSA
- Sample & Datasheet & Quotation: Available
Door Switch for Furnace Description

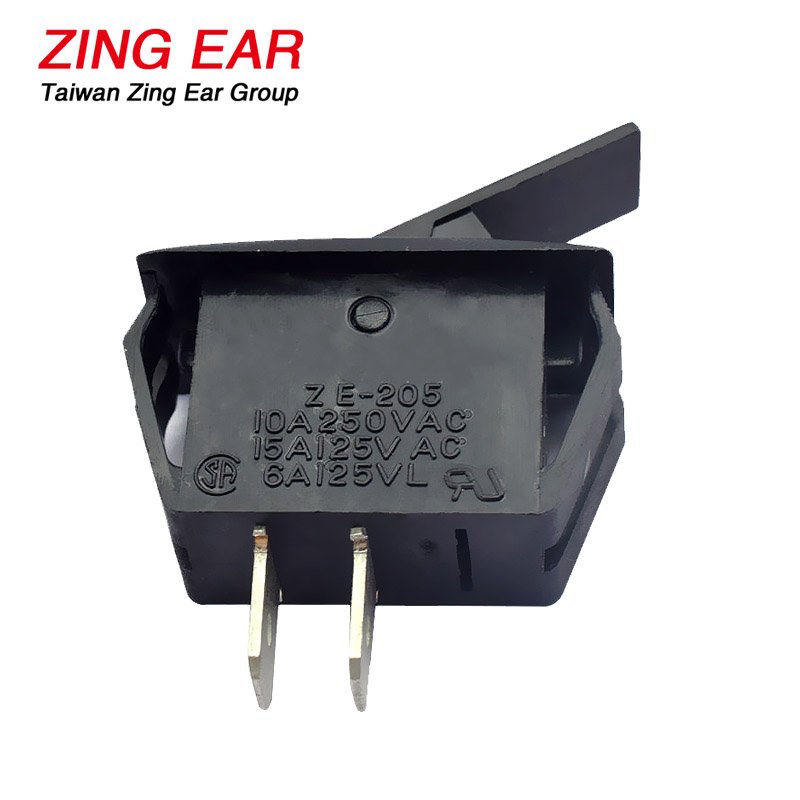

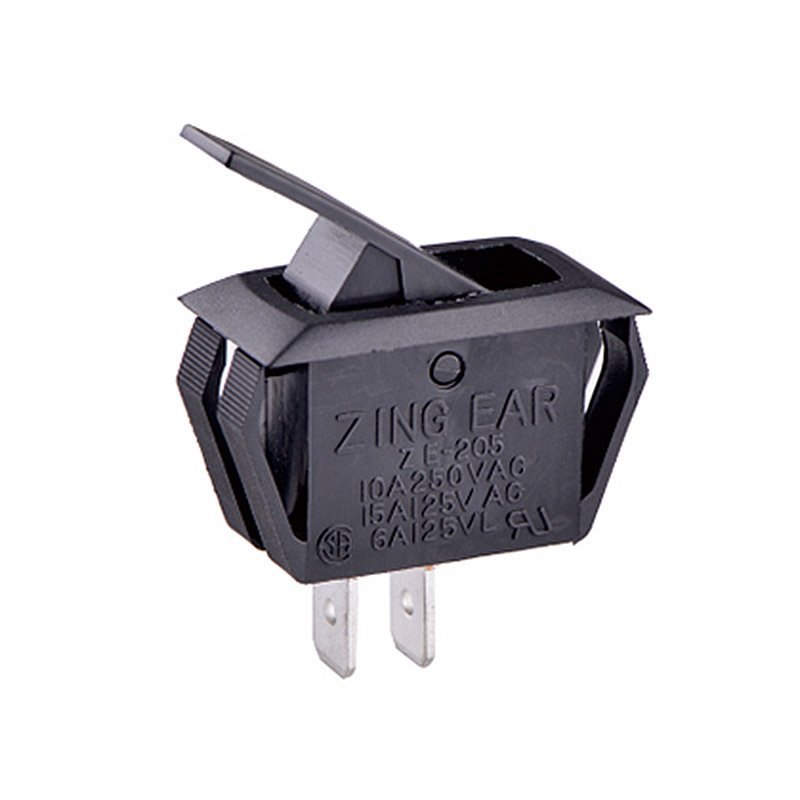

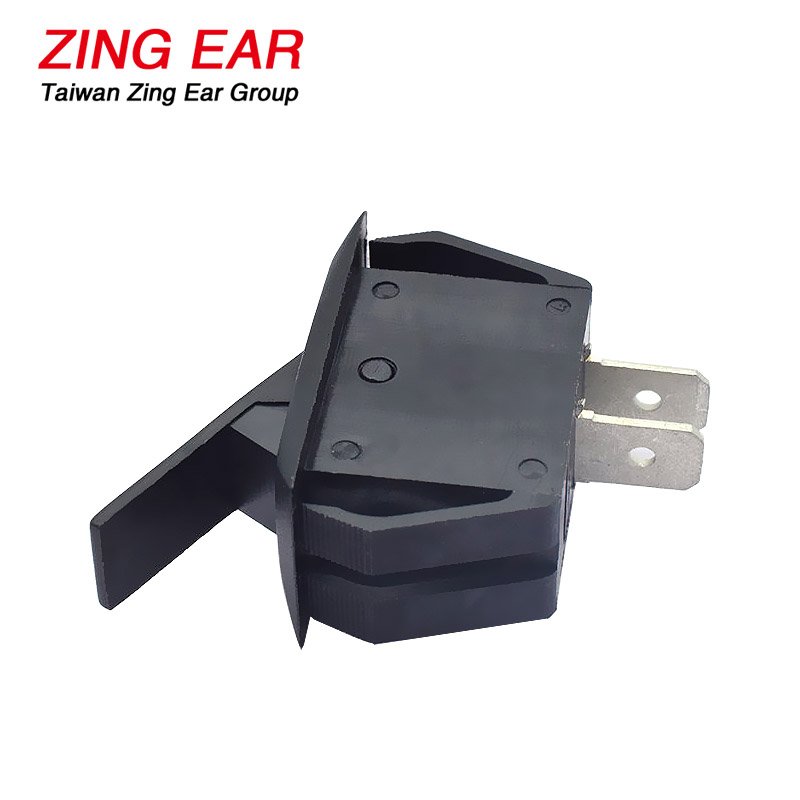

ZE-205A Furnace Door Switch Pictures



Door Switch for Furnace Details Information
The ZE-205A door switch for furnace has 2 types for choices, one is the Normally ON and another one is the Normally OFF. And it not only can be a replacement for 632125R FURNACE switch but has an other function for other new design product. Meanwhile, the material for this model is high quality, which is the PA66 for the shell, and the pure copper for terminals. So the switch performance will be good. Besides, this model also has the certification can provide to the customers, if any thing you need, please feel free to contact us, thank you very much!

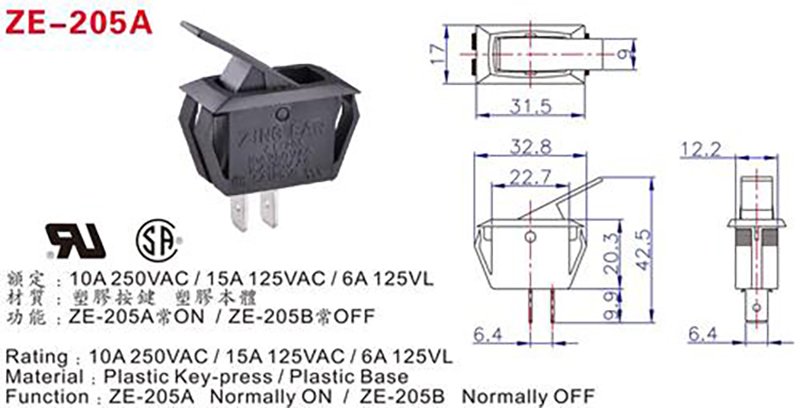

Door Switch for Furnace ZE-205A Drawing
